BMW LA wheel aerodynamics 854 - 18" SZ for BMW 4 Series G26 Gran Coupé M440i (2024)

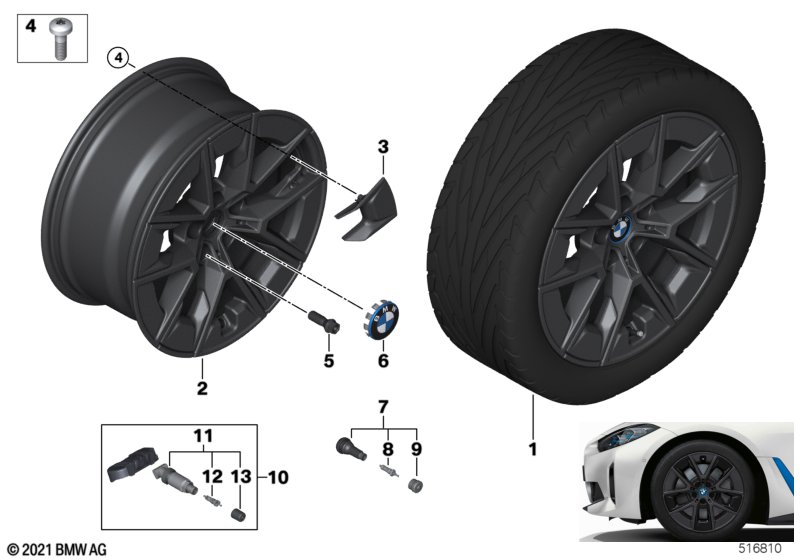

This BMW LA wheel aerodynamics 854 - 18" SZ technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé M440i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Notice: Only for vehicles with EG-BE approval. Official entry in the registration documents may be required for the wheel and tire set under some conditions. Please check vehicle CoC to determine whether an official approval entry for the wheel and tire combination is present. If this is not the case it may be necessary to obtain post-factory field approval sanctioning use in the specific country!! For vehicles with BMW LA wheel aerodynamics 854 STD or BMW LA wheel aerodynamics 854 MB STD or BMW LA wheel aerodyn. 854 RSC AS or BMW LA wheel aerodyn. 854 RSC SO |
S3F7A=Yes S3F8A=Yes S3H0A=Yes S3H1A=Yes |
||||||||
| ONLY FOR WINTER TYRES | ||||||||||
| 02 | Disc wheel light alloy Gunmetal Gray | 8,5JX18 ET:36 | 4 | 36106896772 | Shop at ECS Tuning | |||||
| Unicolor If one or more of the inserts are damaged, they can be replaced individually. There is no need for the wheel with tire to be replaced in its entirety. |
||||||||||
| 03 | Insert 1 | 20 | 36106896785 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Screw | M5X12.5 | 20 | 36136889172 | Shop at ECS Tuning | |||||
| You absolutely must renew mounting bolts after releasing them! |
||||||||||
| 04 | Screw | M5X12.5 | 40 | 36136889172 | Shop at ECS Tuning | |||||
| 05 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| For vehicles with BMW M Heritage logos |
S3MQA=No |
|||||||||
| 06 | Wheel center cap with chrome ring | BMW | 4 | 36136850834 | Shop at ECS Tuning | |||||
| For vehicles with BMW M Heritage logos |
S3MQA=Yes |
|||||||||
| 06 | Hub cap 50 Years M | BMW | 4 | 36135A37E40 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 07 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 08 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 10 | Wheel electronics module, RDC 433MHZ | 4 | 36106877937 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display and Radio frequency 315 MHz |
S2VBA=Yes S876A=Yes |
|||||||||
| 10 | Wheel electronics module TPM 315MHZ | 4 | 36106877934 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 11 | Rep. kit, screw valve for RDCi | 4 | 36106879168 | Shop at ECS Tuning | ||||||
| 12 | Valve insert for RDCi | 4 | 36106879165 | Shop at ECS Tuning | ||||||
| 13 | Valve cap for RDCi | 4 | 36106879164 | Shop at ECS Tuning | ||||||
