Body skeleton for BMW 7 Series E38 730i (1996)

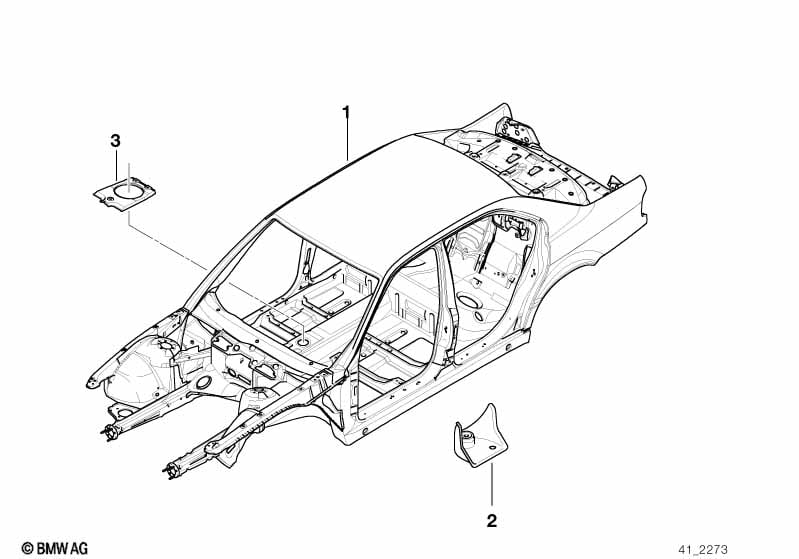

This Body skeleton technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| FOR VEHICLES WITH AND WITHOUT SKI BAG |
||||||||||
| 01 | Body skeleton | BASIS | 1 | 41008257648 | ENDED | Shop at ECS Tuning | ||||
| 01 | Body skeleton sliding lifting roof | BASIS | 1 | 41008257650 | ENDED | Shop at ECS Tuning | ||||
| 02 | Support f rear left transmission | 1 | 41128186471 | ENDED | Shop at ECS Tuning | |||||
| 02 | Support f rear right transmission | 1 | 41128186472 | ENDED | Shop at ECS Tuning | |||||
| 02 | Support f front/centre left transmiss. | 1 | 41128203909 | Shop at ECS Tuning | ||||||
| 02 | Support f front/centre right transmiss. | 1 | 41128203910 | ENDED | Shop at ECS Tuning | |||||
| 03 | Support f gear shift lug with steptronic | 1 | 41128176686 | ENDED | Shop at ECS Tuning | |||||
