Wheelhouse/engine support for BMW 7 Series E38 740i (2001)

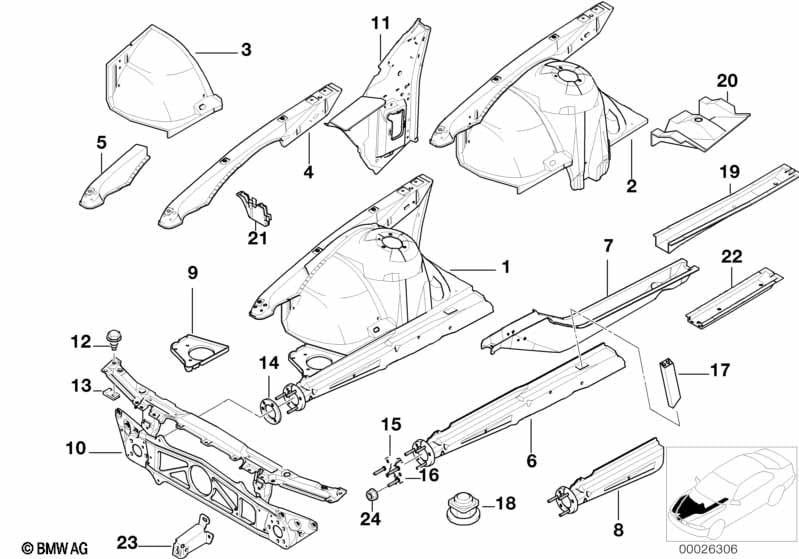

This Wheelhouse/engine support technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front left wheelhouse | BASIS | 1 | 41148170377 | $1137.37 | Shop at ECS Tuning | ||||
| 01 | Wheelhousing, front right | BASIS | 1 | 41148170378 | $1137.37 | ENDED | Shop at ECS Tuning | |||
| 02 | Front left wheelhouse | BASIS | 1 | 41148222773 | $767.73 | ENDED | Shop at ECS Tuning | |||
| 02 | Wheelhousing, front right | BASIS | 1 | 41148222774 | $767.73 | ENDED | Shop at ECS Tuning | |||
| 03 | Section of left front wheel housing | BASIS | 1 | 41148172503 | $238.86 | Shop at ECS Tuning | ||||
| 03 | Section of right front wheel housing | BASIS | 1 | 41148172504 | $238.86 | Shop at ECS Tuning | ||||
| 04 | Supporting strut, left | 1 | 41118170389 | $90.92 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 04 | Supporting strut, right | 1 | 41118170390 | $90.92 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Moulded part f wheel housing supp.,front | 2 | 41118216071 | $5.35 | Shop at ECS Tuning | |||||
| 05 | Section of left reinforcement | 1 | 41118170407 | $85.37 | ENDED | Shop at ECS Tuning | ||||
| 05 | Section of right reinforcement | 1 | 41118170408 | $85.37 | Shop at ECS Tuning | |||||
| 06 | Front left engine support | BASIS | 1 | 41118170379 | $333.10 | ENDED | Shop at ECS Tuning | |||
| 06 | Front right engine support | BASIS | 1 | 41118170380 | $333.10 | ENDED | Shop at ECS Tuning | |||
| 07 | Left centre engine support | BASIS | 1 | 41118170385 | $298.92 | ENDED | Shop at ECS Tuning | |||
| 07 | Right centre engine support | BASIS | 1 | 41118170386 | $298.92 | ENDED | Shop at ECS Tuning | |||
| 08 | Section of left engine support | BASIS | 1 | 41118170455 | $313.87 | Shop at ECS Tuning | ||||
| 08 | Section of right engine support | BASIS | 1 | 41118170456 | $313.87 | Shop at ECS Tuning | ||||
| 09 | Wheelhouse extension, right | 1 | 41148150968 | $24.02 | Shop at ECS Tuning | |||||
| 10 | Front panel with cross member | 1 | 51718125148 | $353.35 | Shop at ECS Tuning | |||||
| 11 | Inner right front column cover | 1 | 41008198592 | $46.08 | Shop at ECS Tuning | |||||
| 11 | Inner left front column cover | 1 | 41218198591 | $46.08 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hexagon sheet-metal bolt | ST6,3X16-R-U2-Z | 2 | 07119905017 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Body nut | ST6,3-1-ZNS3 | 2 | 07129904231 | Shop at ECS Tuning | |||||
| 14 | Shim | 1,0MM | X | 51718185150 | $2.03 | Shop at ECS Tuning | ||||
| 15 | Support for shock absorber, interior | 2 | 41118125275 | $20.43 | Shop at ECS Tuning | |||||
| 16 | Support for shock absorber, exterior | 2 | 41118125273 | $16.51 | Shop at ECS Tuning | |||||
| 17 | Pipe left | 1 | 41118203961 | $12.94 | ENDED | Shop at ECS Tuning | ||||
| 17 | Pipe right | 1 | 41118203962 | $12.38 | ENDED | Shop at ECS Tuning | ||||
| 18 | Earth pin | M8X12 | X | 07147182215 | Shop at ECS Tuning | |||||
| 18 | Earth pin | M6X12 | X | 41248185432 | Shop at ECS Tuning | |||||
| 19 | Rear engine support | 2 | 41118186478 | $93.98 | Shop at ECS Tuning | |||||
| 20 | Left engine support reinforcement | 1 | 41118205021 | $7.90 | Shop at ECS Tuning | |||||
| 20 | Reinforcement, engine support right | 1 | 41118205022 | $7.90 | Shop at ECS Tuning | |||||
| 21 | Moulded part f wheel housing supp.,front | 2 | 41118216071 | $5.35 | Shop at ECS Tuning | |||||
| 23 | Holder, stop buffer left | 1 | 51718166661 | $3.47 | Shop at ECS Tuning | |||||
| 23 | Holder, stop buffer right | 1 | 51718166662 | $3.47 | ENDED | Shop at ECS Tuning | ||||
| 24 | Hex nut with plate | M8 | 6 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
