Front body bracket left for BMW 7 Series E38 750iLP (2001)

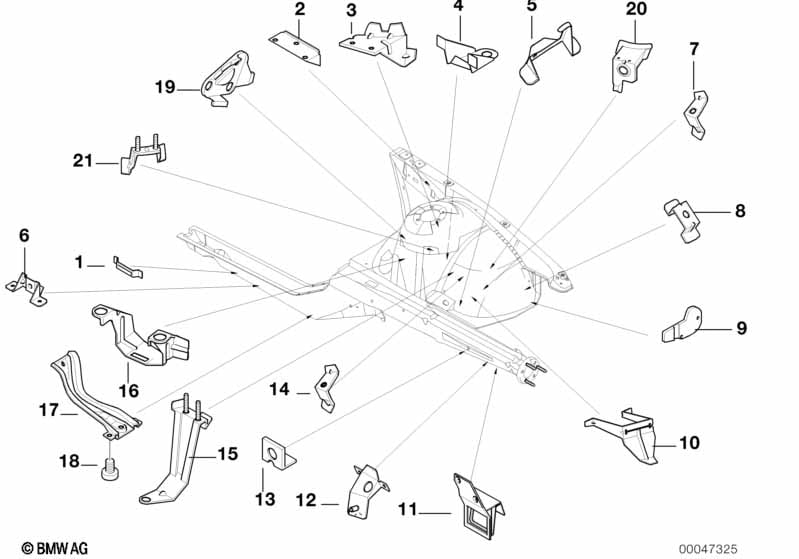

This Front body bracket left technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750iLP. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Braket fuel pump | 1 | 11/1999 | 41117015154 | $1.77 | Shop at ECS Tuning | ||||
| 02 | Bracket acceleration sensor | 1 | 41148116394 | $7.47 | Shop at ECS Tuning | |||||
| 04 | Bracket brake pipe left | 1 | 41148164103 | $1.50 | ENDED | Shop at ECS Tuning | ||||
| 05 | Left ignition coil support | 1 | 41148172366 | $8.37 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bracket. intake silencer | 1 | 41148188865 | $3.91 | ENDED | Shop at ECS Tuning | ||||
| 08 | Suction silencer plug-in bow | 1 | 41148167199 | $5.73 | Shop at ECS Tuning | |||||
| 09 | Bracket f left front lateral bumper | 1 | 41148192971 | $5.98 | Shop at ECS Tuning | |||||
| 11 | Bracket f left radiator support | 1 | 41118125049 | $8.22 | Shop at ECS Tuning | |||||
| 12 | Bracket horn | 1 | 41118150931 | $1.65 | Shop at ECS Tuning | |||||
| 16 | Water valve bracket | 1 | 41148150972 | $3.01 | ENDED | Shop at ECS Tuning | ||||
| 17 | Left protecting skid-type bar | 1 | 51718171525 | $20.08 | ENDED | Shop at ECS Tuning | ||||
| 18 | Torx bolt | ISA M10X18 | 2 | 11119148303 | $0.80 | Shop at ECS Tuning | ||||
| 19 | DSC III regulator bracket | 1 | 41148217489 | $5.73 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 750iLP Front body bracket left?
- This technical diagram illustrates the Front body bracket left within the Bodywork group for the 7 Series E38 750iLP produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Braket fuel pump (Part #41117015154).
- Which models use the hardware listed in this Front body bracket left?
- The hardware and components featured in the Front body bracket left are specific to the 7 Series E38 750iLP produced during 2001. These technical specifications ensure that parts like the Braket fuel pump (41117015154) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front body bracket left assembly?
- Each item in the Front body bracket left corresponds to the numbered list below the illustration. For the 7 Series E38 750iLP, you can identify the Braket fuel pump by locating its position on the schematic, which then links to the official BMW part number 41117015154 for the Bodywork section.
