Front body bracket right for BMW 7 Series E38 728i (1998)

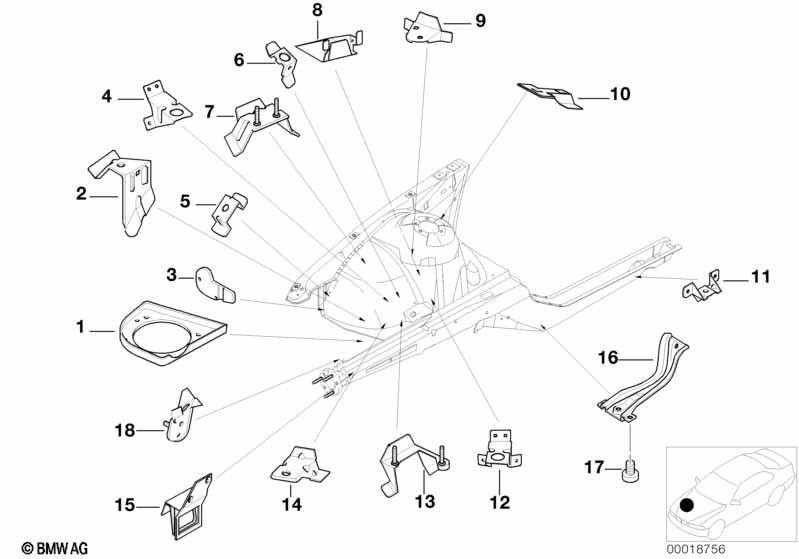

This Front body bracket right technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wheelhouse extension, right | 1 | 41148150968 | $24.02 | Shop at ECS Tuning | |||||
| 03 | Bracket f right front lateral bumper | 1 | 41148192972 | $5.98 | Shop at ECS Tuning | |||||
| 04 | Bracket f 3-channel front ABS-hydr.unit | 1 | 41148125283 | $4.59 | ENDED | Shop at ECS Tuning | ||||
| 05 | Suction silencer plug-in bow | 1 | 41148167199 | $5.73 | Shop at ECS Tuning | |||||
| 06 | Bracket. intake silencer | 1 | 41148167203 | $1.12 | Shop at ECS Tuning | |||||
| 08 | Bracket brake pipe right | 1 | 41148164104 | $1.23 | ENDED | Shop at ECS Tuning | ||||
| 09 | Bracket ABS hydraulic unit | 1 | 41148167182 | $3.92 | ENDED | Shop at ECS Tuning | ||||
| 11 | Bracket fuel strainer | 1 | 41118164090 | $1.17 | Shop at ECS Tuning | |||||
| 12 | Bracket f 3-channel rear ABS-hydr.unit | 1 | 41148150948 | $4.07 | ENDED | Shop at ECS Tuning | ||||
| 15 | Bracket f right radiator support | 1 | 41118125050 | $8.22 | Shop at ECS Tuning | |||||
| 16 | Right protecting skid-type bar | 1 | 51718171526 | $20.08 | Shop at ECS Tuning | |||||
| 17 | Torx bolt | ISA M10X18 | 2 | 11119148303 | $0.80 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
