Body-side frame/partition for BMW 5 Series E39 528i (1998)

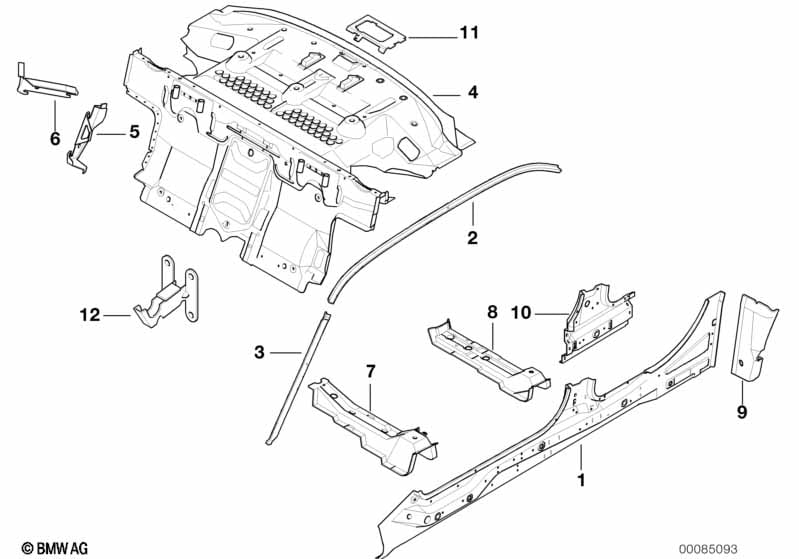

This Body-side frame/partition technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left side member | 1 | 41118208915 | $128.14 | Shop at ECS Tuning | |||||
| 01 | Right side member | 1 | 41118208916 | $128.14 | ENDED | Shop at ECS Tuning | ||||
| FOR VEHICLES WITH AND WITHOUT SKI BAG |
||||||||||
| 04 | Partition trunk | 1 | 41138208917 | $621.97 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Through-loading facility |
=Yes |
|||||||||
| 04 | Partition trunk | 1 | 41138208918 | $621.97 | ENDED | Shop at ECS Tuning | ||||
| 07 | Left front seat console | 1 | 41118208911 | $54.22 | Shop at ECS Tuning | |||||
| 07 | Right front seat console | 1 | 41118208912 | $56.68 | Shop at ECS Tuning | |||||
| 08 | Left rear seat console | 1 | 41118208913 | $54.22 | ENDED | Shop at ECS Tuning | ||||
| 08 | Right rear seat console | 1 | 41118208914 | $54.22 | Shop at ECS Tuning | |||||
| 09 | Covering plate left | 1 | 41148209471 | $13.68 | Shop at ECS Tuning | |||||
| 09 | Covering plate right | 1 | 41148209472 | $13.68 | Shop at ECS Tuning | |||||
| 12 | Centre backrest bearing bracket | 1 | 41127050794 | $13.97 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
