Floor panel trunk/wheel housing rear for BMW 7 Series E38 730i (1996)

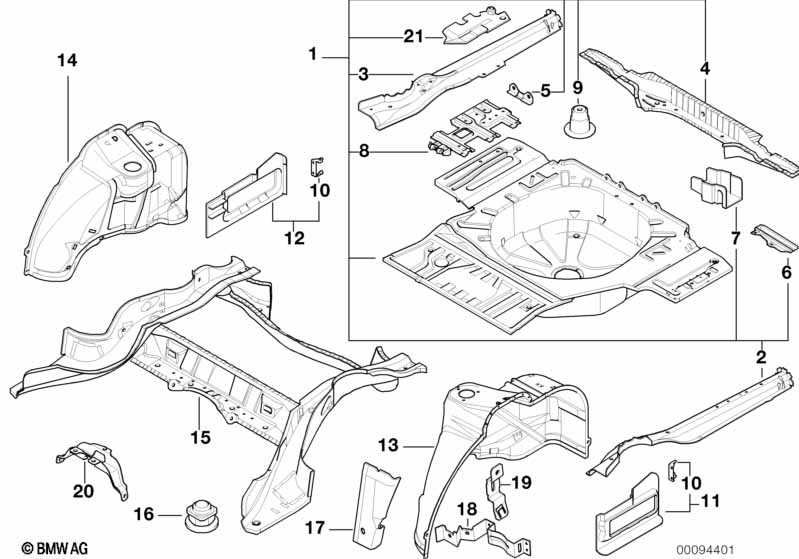

This Floor panel trunk/wheel housing rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk floor | BASIS | 1 | 41128255244 | $996.76 | Shop at ECS Tuning | ||||
| 02 | Left side member | 1 | 41118170435 | $152.88 | ENDED | Shop at ECS Tuning | ||||
| 03 | Right side member | 1 | 41118255243 | $141.10 | Shop at ECS Tuning | |||||
| 04 | Cross member, trunk floor rear | 1 | 41118157550 | $237.82 | Shop at ECS Tuning | |||||
| 05 | Trailer hitch reinforcement angle | 2 | 41128186490 | $3.08 | ENDED | Shop at ECS Tuning | ||||
| 06 | Interior rear silencer bracket | 2 | 41128170433 | $17.10 | ENDED | Shop at ECS Tuning | ||||
| 08 | Battery tray | 1 | 41118125260 | $36.82 | Shop at ECS Tuning | |||||
| 09 | Bracket for spare wheel | 1 | 51718108473 | $12.65 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Threaded rod | M8X192 | 1 | 41118209460 | $3.62 | Shop at ECS Tuning | ||||
| 10 | Bracket bumper rear | 2 | 41148125799 | $0.65 | Shop at ECS Tuning | |||||
| 11 | Wheelhouse extension, left | 1 | 41148186497 | $27.52 | Shop at ECS Tuning | |||||
| 12 | Wheelhouse extension, right | 1 | 41148186498 | $27.52 | Shop at ECS Tuning | |||||
| 13 | Left rear inner wheelhouse | BASIS | 1 | 09/1996 | 41148186495 | $369.56 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Bracket activated Carbon container | 1 | 09/1996 | 41148157606 | $2.82 | ENDED | Shop at ECS Tuning | |||
| 14 | Right rear inner wheelhouse | BASIS | 1 | 41148186496 | $369.56 | Shop at ECS Tuning | ||||
| 15 | Rear axle carrier | 1 | 41118170429 | $1118.17 | ENDED | Shop at ECS Tuning | ||||
| 16 | Earth pin | M8X12 | X | 07147182215 | Shop at ECS Tuning | |||||
| 16 | Earth pin | M6X12 | X | 41248185432 | Shop at ECS Tuning | |||||
| 17 | Covering plate left | 1 | 41118156545 | $17.97 | ENDED | Shop at ECS Tuning | ||||
| 17 | Covering plate right | 1 | 41118156546 | $17.93 | Shop at ECS Tuning | |||||
| 18 | Bracket activated Carbon container | 1 | 09/1996 | 41148157606 | $2.82 | ENDED | Shop at ECS Tuning | |||
| 20 | Bracket f shifting arm bearing | 1 | 41128246251 | $3.23 | Shop at ECS Tuning | |||||
| 21 | Bracket car jack hold-down | 1 | 09/1998 | 41117056311 | $6.19 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 730i Floor panel trunk/wheel housing rear?
- This technical diagram illustrates the Floor panel trunk/wheel housing rear within the Bodywork group for the 7 Series E38 730i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Trunk floor (Part #41128255244).
- Which models use the hardware listed in this Floor panel trunk/wheel housing rear?
- The hardware and components featured in the Floor panel trunk/wheel housing rear are specific to the 7 Series E38 730i produced during 1996. These technical specifications ensure that parts like the Trunk floor (41128255244) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Floor panel trunk/wheel housing rear assembly?
- Each item in the Floor panel trunk/wheel housing rear corresponds to the numbered list below the illustration. For the 7 Series E38 730i, you can identify the Trunk floor by locating its position on the schematic, which then links to the official BMW part number 41128255244 for the Bodywork section.
