Roof for BMW 7 Series E38 740i (2001)

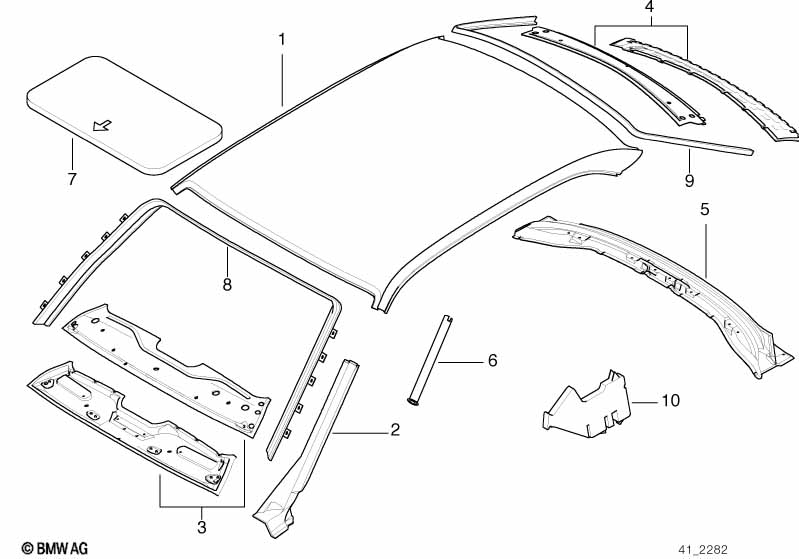

This Roof technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Roof covering lifting-sliding roof | 1 | 41318150926 | $1148.06 | ENDED | Shop at ECS Tuning | ||||
| 01 | Roof cover | 1 | 41318186818 | $622.17 | ENDED | Shop at ECS Tuning | ||||
| 02 | Left apron | 1 | 41328167227 | $77.76 | ENDED | Shop at ECS Tuning | ||||
| 02 | Right apron | 1 | 41328167228 | $77.76 | Shop at ECS Tuning | |||||
| FOR VEHICLES WITH AND WITHOUT SLIDING LIFTING ROOF |
||||||||||
| 03 | Upper apron | 1 | 41328167251 | $108.79 | ENDED | Shop at ECS Tuning | ||||
| 04 | Rear window frame upper part | 1 | 41328167223 | $55.59 | ENDED | Shop at ECS Tuning | ||||
| 05 | Rear window frame bottom part | 1 | 41328167224 | $60.29 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Moulded part f rear window frame | 2 | 41328170399 | $12.29 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Lift-up-and-slide-back sunroof |
=Yes |
|||||||||
| 06 | Pipe | 2 | 41328164112 | $7.32 | Shop at ECS Tuning | |||||
| 07 | Front roof reinforcement | 1 | 51488150297 | $46.62 | Shop at ECS Tuning | |||||
| 07 | Rear roof reinforcement | 1 | 51488163853 | $46.62 | Shop at ECS Tuning | |||||
| For vehicles with Lift-up-and-slide-back sunroof |
=Yes |
|||||||||
| 07 | Rear roof reinforcement | 1 | 51488163854 | $35.13 | ENDED | Shop at ECS Tuning | ||||
| 10 | Moulded part f rear window frame | 2 | 41328170399 | $12.29 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 740i Roof?
- This technical diagram illustrates the Roof within the Bodywork group for the 7 Series E38 740i produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Roof covering lifting-sliding roof (Part #41318150926).
- Which models use the hardware listed in this Roof?
- The hardware and components featured in the Roof are specific to the 7 Series E38 740i produced during 2001. These technical specifications ensure that parts like the Roof covering lifting-sliding roof (41318150926) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Roof assembly?
- Each item in the Roof corresponds to the numbered list below the illustration. For the 7 Series E38 740i, you can identify the Roof covering lifting-sliding roof by locating its position on the schematic, which then links to the official BMW part number 41318150926 for the Bodywork section.
