Key with battery (up to 09/99) for BMW 5 Series E39 528i (2000)

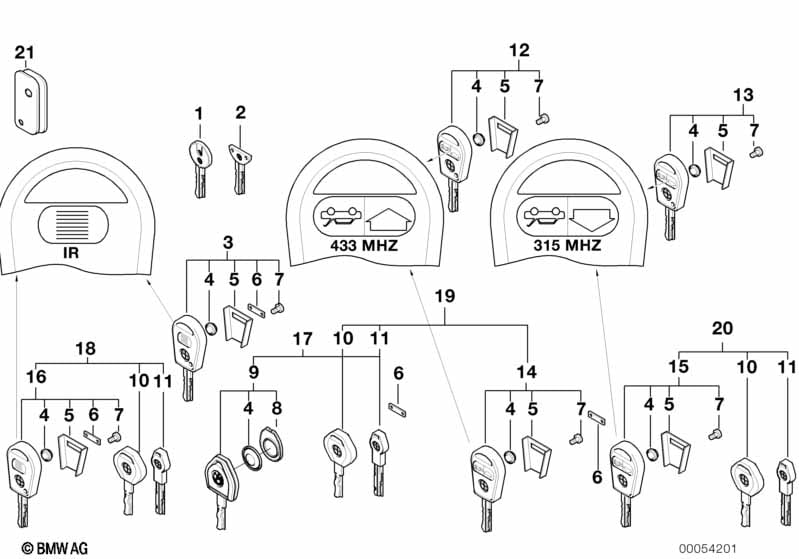

This Key with battery (up to 09/99) technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice! Before ordering keys, central locking systems, control units (EWS immobilizer/CAS), etc., it is vital to ensure that the customer and/or vehicle owner present proof of authorization in the form of original vehicle documents and an official photo ID! A power of attorney from the vehicle owner is also required for authorised third parties. Copies of the specified credentials (proof of authorisation) must be kept in the vehicle records. Please inform BMW Service immediately if a vehicle key is lost so it can be deactivated in order to avoid taking the risk of losing the insurance cover due to gross negligence in the event of a theft. --------------------------- Information regarding remote control: Basic = remote control 433 MHZ SA 876 = remote control 315 MHZ SA 875 = infrared remote control |
|||||||||
| ONLY APPLIES TO MASTER KEY ILLUMINATED The battery is to be installed directly in the corresponding control unit/key on site. It is not permitted to sell the battery if it is not installed. Old batteries must be properly disposed of. |
||||||||||
| 04 | Battery | 3,0 V - CR2025 | 1 | 51218201226 | $8.23 | Shop at ECS Tuning | ||||
| For vehicles with Radio remote control The battery is to be installed directly in the corresponding control unit/key on site. It is not permitted to sell the battery if it is not installed. Old batteries must be properly disposed of. |
=Yes |
|||||||||
| 04 | Battery | 3,0 V - CR2016 | 1 | 51218354417 | $8.23 | Shop at ECS Tuning | ||||
| For vehicles with Infrared remote control The battery is to be installed directly in the corresponding control unit/key on site. It is not permitted to sell the battery if it is not installed. Old batteries must be properly disposed of. |
=Yes |
|||||||||
| 04 | Battery | 3,0 V - CR2016 | 2 | 51218354417 | $8.23 | Shop at ECS Tuning | ||||
| 05 | Cover | 1 | 51218354414 | $9.93 | Shop at ECS Tuning | |||||
| 06 | Infrared remote control cover | 1 | 51218354415 | $1.58 | Shop at ECS Tuning | |||||
| 07 | Countersunk head screw | 2,2X7 | 2 | 66218354639 | $0.50 | Shop at ECS Tuning | ||||
| 08 | Cover | 1 | 51218201225 | $0.78 | Shop at ECS Tuning | |||||
| 09 | Universal key | 2 | 01/1995 | 51218205441 | $47.71 | Shop at ECS Tuning | ||||
| 10 | Door and ignition key | GRAU | 1 | 51218205443 | $40.71 | Shop at ECS Tuning | ||||
| 11 | Spare key | 1 | 51218205444 | $40.71 | Shop at ECS Tuning | |||||
| For vehicles with Infrared remote control |
S875A=Yes |
|||||||||
| 16 | Universal key with remote control | IR | 1 | 51218368192 | Shop at ECS Tuning | |||||
| 17 | Set of keys with EWS control unit | 1 | 51219070171 | Shop at ECS Tuning | ||||||
| CONSISTING OF SERVICE KEY SPARE KEY Control unit EWS Master key, lit Important notice! Before ordering keys, central locking systems, control units (EWS immobilizer/CAS), etc., it is vital to ensure that the customer and/or vehicle owner present proof of authorization in the form of original vehicle documents and an official photo ID! A power of attorney from the vehicle owner is also required for authorised third parties. Copies of the specified credentials (proof of authorisation) must be kept in the vehicle records. Please inform BMW Service immediately if a vehicle key is lost so it can be deactivated in order to avoid taking the risk of losing the insurance cover due to gross negligence in the event of a theft. |
||||||||||
| For vehicles with Infrared remote control |
S875A=Yes |
|||||||||
| 18 | Set of keys with EWS control unit | IR | 1 | 51219070093 | Shop at ECS Tuning | |||||
| CONSISTING OF SERVICE KEY SPARE KEY Control unit EWS MASTER KEY WITH INFRARED REMOTE CONTROL Important notice! Before ordering keys, central locking systems, control units (EWS immobilizer/CAS), etc., it is vital to ensure that the customer and/or vehicle owner present proof of authorization in the form of original vehicle documents and an official photo ID! A power of attorney from the vehicle owner is also required for authorised third parties. Copies of the specified credentials (proof of authorisation) must be kept in the vehicle records. Please inform BMW Service immediately if a vehicle key is lost so it can be deactivated in order to avoid taking the risk of losing the insurance cover due to gross negligence in the event of a theft. |
||||||||||
| 21 | Key case | 1 | 51218213607 | $9.15 | Shop at ECS Tuning | |||||
