Splash wall parts for BMW 7 Series E38 740i (2001)

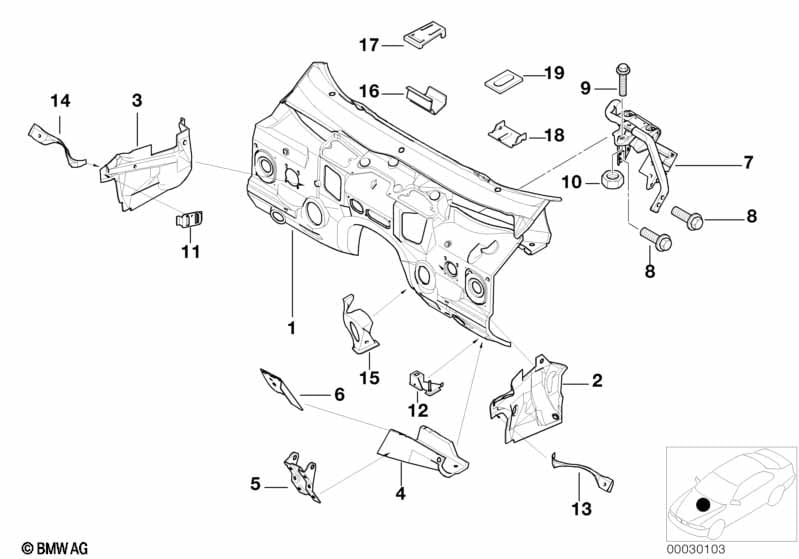

This Splash wall parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Splash wall | BASIS | 1 | 41138170403 | $872.57 | ENDED | Shop at ECS Tuning | |||
| 02 | Partition left | 1 | 41148170387 | $48.68 | Shop at ECS Tuning | |||||
| 03 | Partition right | 1 | 41148170388 | $48.68 | ENDED | Shop at ECS Tuning | ||||
| 04 | Connection pcs, wheel house/entrance,lft | 1 | 41118170381 | $29.67 | Shop at ECS Tuning | |||||
| 04 | Connection pcs,wheel house/entrance,rght | 1 | 41118170382 | $29.67 | ENDED | Shop at ECS Tuning | ||||
| 05 | Bracket for Independent heater | 1 | 41118167258 | $7.57 | Shop at ECS Tuning | |||||
| 06 | Covering plate left | 1 | 41218170411 | $9.46 | Shop at ECS Tuning | |||||
| 06 | Covering plate right | 1 | 41218170412 | $9.46 | Shop at ECS Tuning | |||||
| 07 | Supporting tube | 1 | 51718158193 | $127.39 | ENDED, +core | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M8X20-ZNS3 | 5 | 07147165618 | $0.73 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M8X45-8.8-ZNS3 | 1 | 07119903931 | $0.71 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 11 | Diagnosis plug bracket | 1 | 41138172562 | $3.14 | ENDED | Shop at ECS Tuning | ||||
| 13 | Cover panel, engine compartment, left | 1 | 41138150645 | $5.38 | ENDED | Shop at ECS Tuning | ||||
| 14 | Cover panel, engine compartment, right | 1 | 41138150646 | $5.38 | ENDED | Shop at ECS Tuning | ||||
| 15 | Supporting strut, front wall left | 1 | 41118203835 | $90.92 | ENDED | Shop at ECS Tuning | ||||
| 15 | Supporting strut, front wall right | 1 | 41118203836 | $90.92 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 740i Splash wall parts?
- This technical diagram illustrates the Splash wall parts within the Bodywork group for the 7 Series E38 740i produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Splash wall (Part #41138170403).
- Which models use the hardware listed in this Splash wall parts?
- The hardware and components featured in the Splash wall parts are specific to the 7 Series E38 740i produced during 2001. These technical specifications ensure that parts like the Splash wall (41138170403) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Splash wall parts assembly?
- Each item in the Splash wall parts corresponds to the numbered list below the illustration. For the 7 Series E38 740i, you can identify the Splash wall by locating its position on the schematic, which then links to the official BMW part number 41138170403 for the Bodywork section.
