Electrical folding top flap mechanism for BMW 3 Series E36 325i (1993)

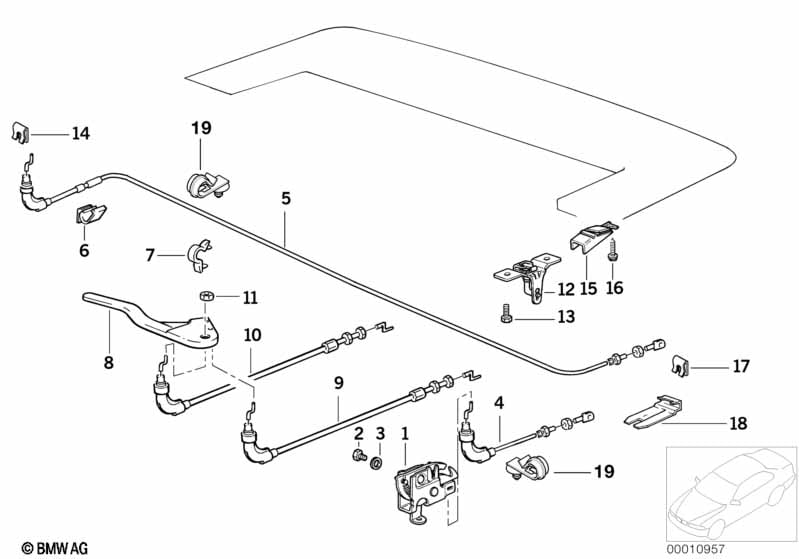

This Electrical folding top flap mechanism technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lock left | 1 | 51258164852 | $23.47 | Shop at ECS Tuning | |||||
| 01 | Lock right | 1 | 51258176328 | $61.28 | Shop at ECS Tuning | |||||
| 02 | Fillister-head screw | 4 | 51248166982 | $0.56 | Shop at ECS Tuning | |||||
| 03 | Washer | A6,4-200HV-ZNS3 | 4 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Bowden cable left | 1 | 51258164855 | $53.14 | Shop at ECS Tuning | |||||
| 05 | Bowden cable right | 1 | 51258164856 | $53.14 | +core | Shop at ECS Tuning | ||||
| 06 | Clip | 2 | 51258183280 | $1.63 | Shop at ECS Tuning | |||||
| 07 | Tubing support | D=10,8MM | 3 | 64111364073 | $0.57 | Shop at ECS Tuning | ||||
| 08 | Emergency mechanism | 1 | 67618360228 | $59.93 | Shop at ECS Tuning | |||||
| 09 | Bowden cable f fold.top flap emerg.mech. | 1 | 67618360233 | $16.48 | Shop at ECS Tuning | |||||
| 10 | Bowd.cable f fold.top emergency mechan. | 1 | 67618360232 | $15.58 | Shop at ECS Tuning | |||||
| 11 | Hex nut | M6-8-ZNS3 | 3 | 07129904876 | $0.16 | Shop at ECS Tuning | ||||
| 11 | Self-locking hex nut | M6 ZNNIV SI | 3 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Catch bracket | 2 | 51258200482 | $21.02 | Shop at ECS Tuning | |||||
| 13 | Hex bolt with washer | M6X12-U1-8.8 | 4 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 14 | Clamp | A5 | 2 | 07129934906 | $0.53 | Shop at ECS Tuning | ||||
| 15 | Stopper right | 2 | 51258171802 | $1.78 | Shop at ECS Tuning | |||||
| 16 | Hex head screw | ST4,2X13-C-Z2 | 2 | 07119916914 | $0.18 | Shop at ECS Tuning | ||||
| 17 | Clamp | A6 | 2 | 07129934910 | $0.66 | Shop at ECS Tuning | ||||
| 18 | Clamp | 2 | 51258176479 | $0.79 | Shop at ECS Tuning | |||||
| 19 | Clamp | 4 | 51258176482 | $0.74 | Shop at ECS Tuning |
