Single components for trunk lid for BMW 7 Series E38 L7 (1998)

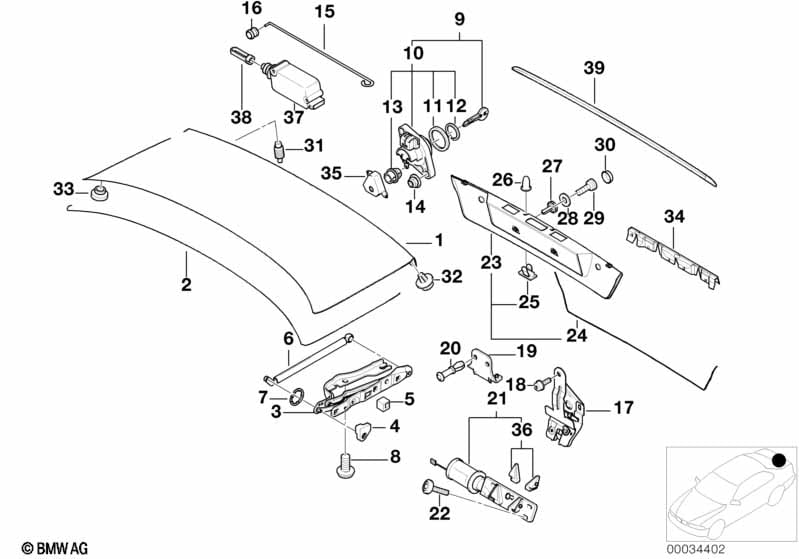

This Single components for trunk lid technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 L7. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid | 1 | 09/1997 | 41628230560 | $762.91 | Shop at ECS Tuning | ||||
| 02 | Trunk lid gasket | 1 | 51718150083 | $50.67 | Shop at ECS Tuning | |||||
| For vehicles with automatic trunk lid mechanism |
S316A=No |
|||||||||
| 03 | Left trunk lid hinge | 1 | 06/1996 | 41628221197 | $46.91 | ENDED | Shop at ECS Tuning | |||
| 03 | Right trunk lid hinge | 1 | 06/1996 | 41628221198 | $46.91 | Shop at ECS Tuning | ||||
| 04 | Stopper left | 1 | 51718186887 | $1.58 | Shop at ECS Tuning | |||||
| 04 | Stopper right | 1 | 51718186888 | $1.58 | Shop at ECS Tuning | |||||
| 05 | Bump stop | 2 | 51238123298 | $3.24 | Shop at ECS Tuning | |||||
| 06 | Gas pressurized spring | 640N | 2 | 51248171480 | $44.37 | Shop at ECS Tuning | ||||
| 07 | Circlip | 7,0 | 2 | 07119905858 | $0.96 | Shop at ECS Tuning | ||||
| 08 | Torx-bolt with washer | 8 | 07149112449 | Shop at ECS Tuning | ||||||
| 09 | Catch with key | 1 | 51248185426 | $157.95 | Shop at ECS Tuning | |||||
| 10 | Catch with code | 1 | 51248166688 | $168.68 | Shop at ECS Tuning | |||||
| 11 | Interior lock gasket | 1 | 51248173076 | $1.44 | Shop at ECS Tuning | |||||
| 12 | Exterior lock gasket | 1 | 51248173086 | $0.59 | Shop at ECS Tuning | |||||
| 13 | Circlip | 1 | 51221817032 | $0.31 | Shop at ECS Tuning | |||||
| 14 | Self-locking hex nut | M6 | 2 | 07147153450 | $0.47 | Shop at ECS Tuning | ||||
| 15 | Connection rod | 1 | 51248165199 | $32.60 | Shop at ECS Tuning | |||||
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 15 | Operating rod | 1 | 51248235749 | $30.29 | Shop at ECS Tuning | |||||
| 16 | Grommet | 1 | 51248149619 | $0.65 | Shop at ECS Tuning | |||||
| 17 | Lock | 1 | 51248174853 | $68.44 | Shop at ECS Tuning | |||||
| 18 | Torx-bolt with washer | M6X12 | 5 | 07146985055 | $0.38 | Shop at ECS Tuning | ||||
| 19 | Lock panel | 1 | 51238150081 | $2.79 | ENDED | Shop at ECS Tuning | ||||
| 20 | Expanding rivet | SCHWARZ | 2 | 51498166702 | $0.37 | Shop at ECS Tuning | ||||
| 21 | Trunk lid power lock drive | 1 | 67338352202 | $287.33 | Shop at ECS Tuning | |||||
| 22 | Torx bolt | ISA M6X22 | 1 | 51478192970 | $1.03 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 23 | Trunk lid cover | 1 | 51138169692 | $51.17 | Shop at ECS Tuning | |||||
| 23 | Trunk lid cover | CODE - UNI/MET. | 1 | 51139068536 | ENDED, +core | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 24 | Trunk lid cover gasket | 1 | 51138165268 | $25.50 | ENDED | Shop at ECS Tuning | ||||
| 25 | Clamp | 6 | 51718108613 | $0.29 | Shop at ECS Tuning | |||||
| 26 | Grommet | 6 | 51138124389 | $1.29 | Shop at ECS Tuning | |||||
| 27 | Plug-in nut | 2 | 51131961243 | $0.65 | Shop at ECS Tuning | |||||
| 28 | Washer | 4-200 HV-ZNS3 | 2 | 07119904207 | Shop at ECS Tuning | |||||
| 29 | Fillister head self-tapping screw | ST4,8X16MM | 2 | 07143448498 | $0.18 | Shop at ECS Tuning | ||||
| 30 | Covering cap | WEISS | 2 | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 30 | Covering cap | SCHWARZ | 2 | 51181823474 | $0.21 | Shop at ECS Tuning | ||||
| 30 | Covering cap | DUNKELBLAU | 2 | 64111375497 | $0.20 | Shop at ECS Tuning | ||||
| 31 | Buffer stop with ejector | 23N | 2 | 51248137994 | $7.16 | Shop at ECS Tuning | ||||
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 31 | Stop buffer | 2 | 51248254063 | $1.35 | Shop at ECS Tuning | |||||
| 32 | Bump stop | 2 | 51248189779 | $0.73 | Shop at ECS Tuning | |||||
| 33 | Blind plug | D=6MM | 2 | 51711904603 | $0.32 | Shop at ECS Tuning | ||||
| 34 | Covering inner | 1 | 51248186895 | $3.94 | ENDED | Shop at ECS Tuning | ||||
| 35 | Cover | 1 | 51248171644 | $21.89 | Shop at ECS Tuning | |||||
| 36 | Repair kit f buffer and sliding piece | 1 | 67338369565 | $11.90 | Shop at ECS Tuning | |||||
| 37 | Actuator f trunk lid | 1 | 51248235748 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 37 | Actuator f trunk lid | 2-POLIG | 1 | 67118360225 | $86.30 | ENDED | Shop at ECS Tuning | |||
| 38 | Connection piece | 1 | 51248172156 | $4.60 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur |
S346A=Yes |
|||||||||
| 39 | Decorative strip | CHROM | 1 | 51138171680 | $39.14 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
