Door weatherstrip front for BMW 5 Series E39 523i (2000)

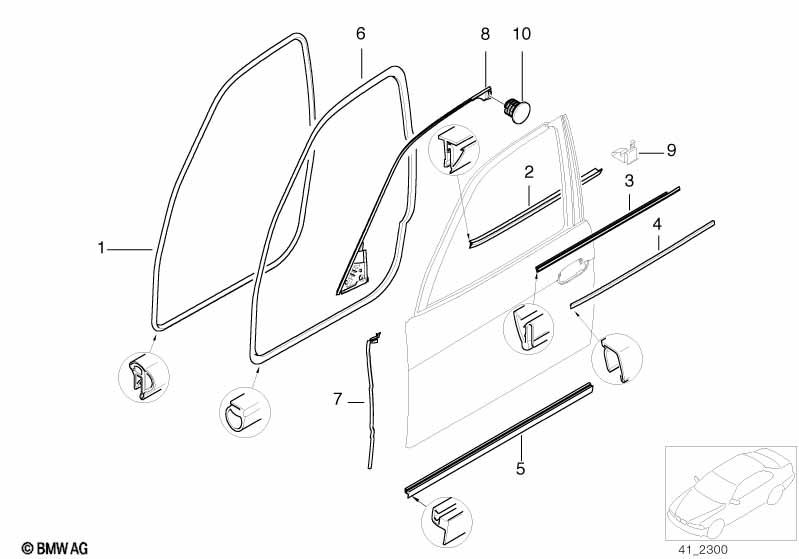

This Door weatherstrip front technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Edge protection front | ANTHRAZIT | 2 | 51727116403 | $62.38 | Shop at ECS Tuning | ||||
| For vehicles with Chrome Line exterieur |
S346A=Yes |
|||||||||
| 02 | Interior left front moulding | CHROM | 1 | 51218185815 | $26.57 | Shop at ECS Tuning | ||||
| 02 | Interior right front moulding | CHROM | 1 | 51218185816 | $26.57 | Shop at ECS Tuning | ||||
| For vehicles with Chrome Line exterieur and Insulating double-glazing |
S346A=Yes S352A=Yes |
|||||||||
| 02 | Interior left front moulding | CHROM | 1 | 51218203899 | $26.57 | Shop at ECS Tuning | ||||
| 02 | Interior right front moulding | CHROM | 1 | 51218203900 | $26.57 | Shop at ECS Tuning | ||||
| For vehicles with Shadow-Line or Lifestyle Edition |
S339A=Yes S722A=Yes |
|||||||||
| 02 | Interior left front moulding | SCHWARZ | 1 | 51218159819 | $26.57 | Shop at ECS Tuning | ||||
| 02 | Interior right front moulding | SCHWARZ | 1 | 51218159820 | $26.57 | Shop at ECS Tuning | ||||
| For vehicles with M Sports package or High gloss shadow line |
P337A=Yes S760A=Yes |
|||||||||
| 02 | Interior left front moulding | GLANZSCHWARZ | 1 | 51212694035 | $50.67 | Shop at ECS Tuning | ||||
| 02 | Interior right front moulding | GLANZSCHWARZ | 1 | 51212694036 | $43.54 | Shop at ECS Tuning | ||||
| For vehicles with Insulating double-glazing and Shadow-Line and Lifestyle Edition |
S352A=Yes S339A=Yes S722A=No |
|||||||||
| 02 | Interior left front moulding | SCHWARZ | 1 | 51218203895 | $26.57 | Shop at ECS Tuning | ||||
| 02 | Interior right front moulding | SCHWARZ | 1 | 51218203896 | $26.57 | Shop at ECS Tuning | ||||
| For vehicles with Insulating double-glazing and Shadow-Line and Lifestyle Edition |
S352A=Yes S339A=No S722A=Yes |
|||||||||
| 02 | Interior left front moulding | SCHWARZ | 1 | 51218203895 | $26.57 | Shop at ECS Tuning | ||||
| 02 | Interior right front moulding | SCHWARZ | 1 | 51218203896 | $26.57 | Shop at ECS Tuning | ||||
| For vehicles with Insulating double-glazing and High gloss shadow line and M Sports package |
S352A=Yes S760A=Yes P337A=No |
|||||||||
| 02 | Interior left front moulding | GLANZSCHWARZ | 1 | 51212694039 | $47.07 | Shop at ECS Tuning | ||||
| 02 | Interior right front moulding | GLANZSCHWARZ | 1 | 51212694040 | $47.07 | Shop at ECS Tuning | ||||
| For vehicles with Insulating double-glazing and High gloss shadow line and M Sports package |
S352A=Yes S760A=No P337A=Yes |
|||||||||
| 02 | Interior left front moulding | GLANZSCHWARZ | 1 | 51212694039 | $47.07 | Shop at ECS Tuning | ||||
| 02 | Interior right front moulding | GLANZSCHWARZ | 1 | 51212694040 | $47.07 | Shop at ECS Tuning | ||||
| 03 | Door weather strip outer left | 1 | 51218159235 | $19.53 | Shop at ECS Tuning | |||||

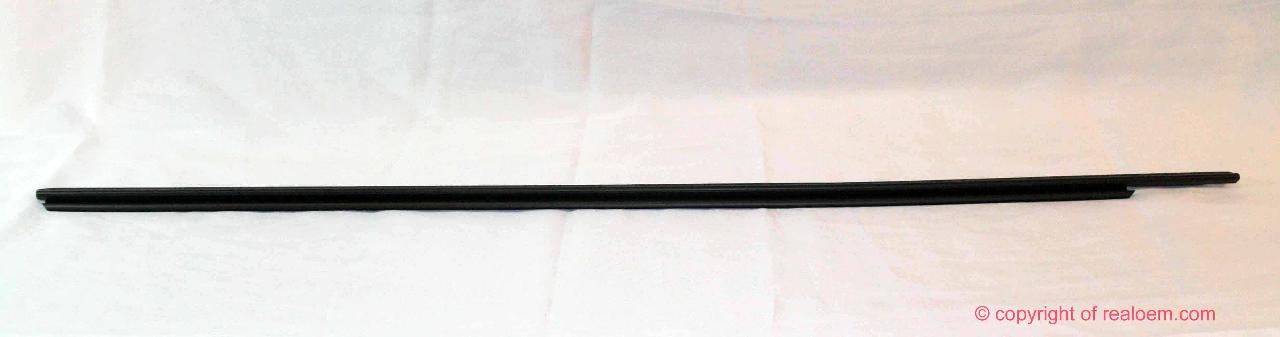

| 03 | Door weather strip outer right | 1 | 51218159236 | $19.53 | Shop at ECS Tuning | |||||
| For vehicles with Chrome-Line/SA345 |
=Yes |
|||||||||
| 04 | Exterior right front moulding | CHROM | 1 | 51218204388 | $31.84 | Shop at ECS Tuning | ||||
| For vehicles with Chrome Line exterieur |
S346A=Yes |
|||||||||

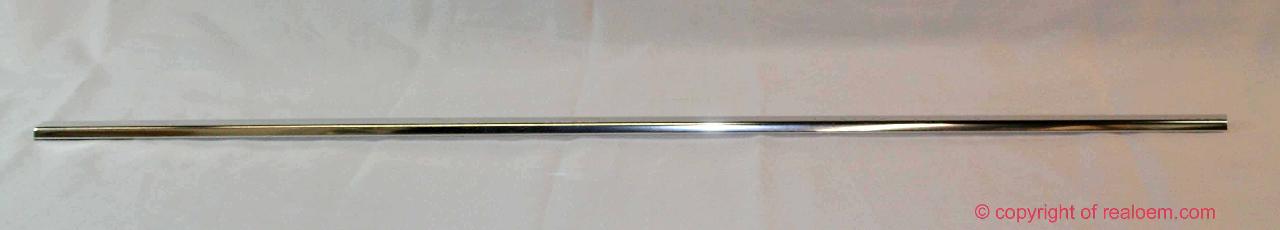

| 04 | Exterior left front moulding | CHROM | 1 | 51217890645 | $109.55 | Shop at ECS Tuning | ||||
| For vehicles with Shadow-Line or Lifestyle Edition |
S339A=Yes S722A=Yes |
|||||||||
| 04 | Exterior left front moulding | SCHWARZ | 1 | 51218159257 | $26.83 | Shop at ECS Tuning | ||||
| 04 | Exterior right front moulding | SCHWARZ | 1 | 51218159258 | $26.83 | Shop at ECS Tuning | ||||
| For vehicles with M Sports package or High gloss shadow line |
P337A=Yes S760A=Yes |
|||||||||
| 04 | Exterior left front moulding | GLANZSCHWARZ | 1 | 51212427415 | $109.55 | NoS | Shop at ECS Tuning | |||
| 04 | Exterior right front moulding | GLANZSCHWARZ | 1 | 51212427416 | $109.55 | Shop at ECS Tuning | ||||
| 05 | Front left sealing betw.door and entranc | 1 | 51218202675 | $20.77 | Shop at ECS Tuning | |||||
| 05 | Front right sealing betw.door/entrance | 1 | 51218202676 | $20.77 | Shop at ECS Tuning | |||||
| 06 | Front door seal | 2 | 51219069322 | $103.88 | Shop at ECS Tuning | |||||
| 08 | Front left seal.betw.door and roof frame | 1 | 51210402745 | $62.32 | Shop at ECS Tuning | |||||
| 08 | Front right seal.betw.door A.roof frame | 1 | 51210402746 | $62.32 | Shop at ECS Tuning | |||||
| 09 | Clamp | X | 51221938297 | $1.10 | Shop at ECS Tuning | |||||
| 10 | Clip | 2 | 51218213615 | $0.35 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
