Rear door control/door lock for BMW 7 Series E38 735i (1998)

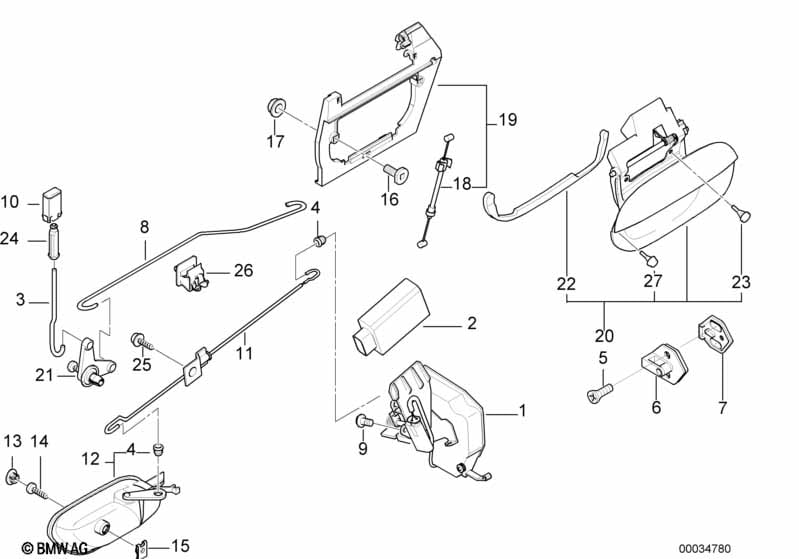

This Rear door control/door lock technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.

Rear door control/door lock
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Door lock rear left 1 51228125671 $162.58 Shop at ECS Tuning
01 Door lock rear right 1 51228125672 $162.58 Shop at ECS Tuning
02 Actuator 2 67118352165 $101.80 Shop at ECS Tuning
03 Operating rod 2 51228170493 $0.68 Shop at ECS Tuning
For vehicles with
Roller sun shield
=Yes
03 Operating rod 2 51228170495 $0.80 Shop at ECS Tuning
04 Grommet 6 52208238999 $0.40 Shop at ECS Tuning
05 Torx-countersunk head screw ISA M8X19.5 4 51218153573 $0.47 Shop at ECS Tuning
06 Latch Striker 2 51218150084 $24.22 Shop at ECS Tuning
07 Striker plate gasket 2 51218164780 $2.07 Shop at ECS Tuning
08 Bowden cable left 1 04/1997 51228225265 $14.50 Shop at ECS Tuning
08 Bowden cable right 1 04/1997 51228225266 $14.50 Shop at ECS Tuning
09 Torx bolt ASA M6X11 6 51458166995 $0.80 Shop at ECS Tuning
10 Lock button SCHWARZ 2 51218186633 $4.58 Shop at ECS Tuning
10 Lock button CHROM 2 51218216905 $8.03 Shop at ECS Tuning
11 Rear left door handle bowden cable 1 09/1996 51228225263 $9.62 Shop at ECS Tuning
11 Rear right door handle bowden cable 1 09/1996 51228225264 $9.62 Shop at ECS Tuning
12 Door handle, inside left CHROM 1 09/1998 51218226049 $46.15 Shop at ECS Tuning
12 Door handle inner right CHROM 1 09/1998 51218226050 $46.15 Shop at ECS Tuning
13 Cap SCHWARZ 2 51218163829 $2.33 Shop at ECS Tuning
14 Fillister head self-tapping screw ST4,8X19-Z1 2 07119906765 $0.56 Shop at ECS Tuning
15 Plug-in nut M5 2 46637651465 $1.29 Shop at ECS Tuning
16 Square headed bolt M6X20 4 09/1998 51211970029 $0.79 Shop at ECS Tuning
17 Hex nut with plate M6 ZNT 4 09/1998 07149156628 $0.25 Shop at ECS Tuning
18 Rear door lock bowden cable 2 51228165204 $24.00 Shop at ECS Tuning
19 Carrier, outside door handle, rear left 1 51228245345 $61.87 Shop at ECS Tuning
only in conjunction with
-- Torx-bolt with washer ISA M6X17 2 07517207108 $0.64 Shop at ECS Tuning
19 Carrier, outside door handle, rear right 1 51228245346 $61.87 Shop at ECS Tuning
only in conjunction with
-- Torx-bolt with washer ISA M6X17 1 07517207108 $0.64 Shop at ECS Tuning
20 Door handle outer left GRUNDIERT 1 09/1998 51228164725 $73.55 ENDED Shop at ECS Tuning
20 Door handle outer right GRUNDIERT 1 09/1998 51228164726 $73.55 +core Shop at ECS Tuning
20 Door handle outer left CODE - UNI/MET. 1 09/1998 51229068577 ENDED, +core Shop at ECS Tuning
When ordering indicate color code
20 Door handle outer right CODE - UNI/MET. 1 09/1998 51229068581 $294.06 ENDED Shop at ECS Tuning
When ordering indicate color code
For vehicles with
Chrome Line Interieur
S345A=Yes
20 Door handle outer left GRUNDIERT/CHROM 1 09/1998 51228215255 $99.71 ENDED, +core Shop at ECS Tuning
20 Door handle outer right GRUNDIERT/CHROM 1 09/1998 51228215256 $99.71 +core Shop at ECS Tuning
20 Door handle outer left CODE - UNI/MET. 1 09/1998 51229069827 $294.06 ENDED, +core Shop at ECS Tuning
When ordering indicate color code
20 Door handle outer right CODE - UNI/MET. 1 09/1998 51229069828 ENDED, +core Shop at ECS Tuning
When ordering indicate color code
21 Deflection lever 2 51228187628 $1.60 Shop at ECS Tuning
22 Left base 1 51218172301 $1.93 Shop at ECS Tuning
22 Right base 1 51218172302 $1.93 Shop at ECS Tuning
23 Stop buffer BLACK 4 51211970863 $0.73 Shop at ECS Tuning
24 Sleeve 2 51218166663 $3.13 Shop at ECS Tuning
25 Screw 4X14MM 2 09/1996 07146963839 $0.20 Shop at ECS Tuning
27 Stop buffer 4 51218234860 $0.79 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
