Door handle front/lock/key for BMW 5 Series E34 525td (1995)

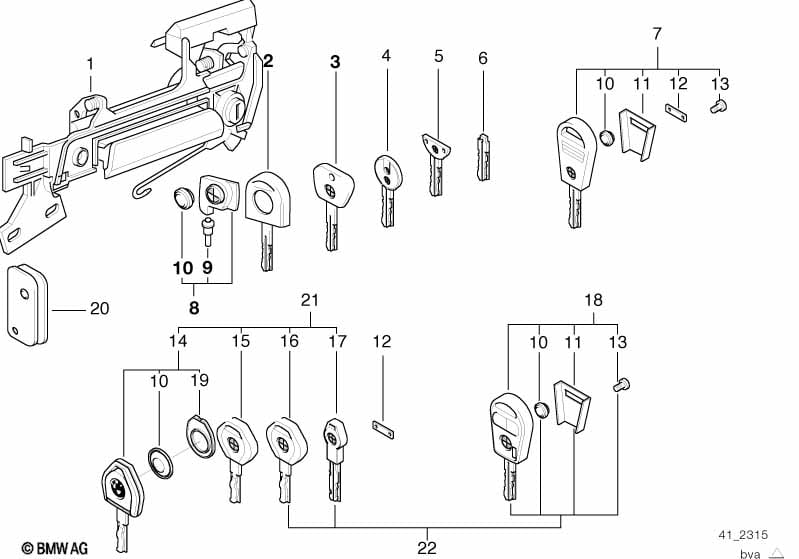

This Door handle front/lock/key technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| FOR VEHICLES WITH AND WITHOUT DOOR LOCK HEATING Important notice! Before ordering keys, central locking systems, control units (EWS immobilizer/CAS), etc., it is vital to ensure that the customer and/or vehicle owner present proof of authorization in the form of original vehicle documents and an official photo ID! A power of attorney from the vehicle owner is also required for authorised third parties. Copies of the specified credentials (proof of authorisation) must be kept in the vehicle records. Please inform BMW Service immediately if a vehicle key is lost so it can be deactivated in order to avoid taking the risk of losing the insurance cover due to gross negligence in the event of a theft. |
||||||||||
| 01 | Lock with code, left | 1 | 09/1991 | 51218199749 | $252.92 | ENDED | Shop at ECS Tuning | |||
| 01 | Catch with key code right | 1 | 09/1991 | 51218199750 | $252.92 | ENDED | Shop at ECS Tuning | |||
| 01 | Catch with key left | 1 | 09/1991 | 51218199751 | $253.25 | Shop at ECS Tuning | ||||
| 01 | Catch with key right | 1 | 09/1991 | 51218199752 | $253.25 | Shop at ECS Tuning | ||||
| 01 | Lock with code, left | BMW INDIVIDUAL | 1 | 09/1991 | 51218199755 | $218.74 | ENDED | Shop at ECS Tuning | ||
| 01 | Catch with key code right | BMW INDIVIDUAL | 1 | 09/1991 | 51218199756 | $203.11 | ENDED | Shop at ECS Tuning | ||
| 01 | Lock with code, left | BMW MOTORSPORT | 1 | 09/1991 | 51218199757 | $243.29 | ENDED | Shop at ECS Tuning | ||
| 01 | Catch with key code right | BMW MOTORSPORT | 1 | 09/1991 | 51218199758 | $243.29 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Alarm system or Remote control for central locking or Infrared remote control |
S302A=Yes S306A=Yes S875A=Yes |
|||||||||
| 07 | Universal key with remote control | IR | X | 01/1995 | 51218368192 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO MASTER KEY ILLUMINATED The battery is to be installed directly in the corresponding control unit/key on site. It is not permitted to sell the battery if it is not installed. Old batteries must be properly disposed of. |
||||||||||
| 10 | Battery | 3,0 V - CR2025 | 1 | 01/1995 | 51218201226 | $8.23 | Shop at ECS Tuning | |||
| For vehicles with Infrared remote control The battery is to be installed directly in the corresponding control unit/key on site. It is not permitted to sell the battery if it is not installed. Old batteries must be properly disposed of. |
=Yes |
|||||||||
| 10 | Battery | 3,0 V - CR2016 | 2 | 09/1992 | 51218354417 | $8.23 | Shop at ECS Tuning | |||
| 11 | Cover | 1 | 09/1992 | 51218354414 | $9.93 | Shop at ECS Tuning | ||||
| For vehicles with Infrared remote control |
=Yes |
|||||||||
| 12 | Infrared remote control cover | 1 | 09/1992 | 51218354415 | $1.58 | Shop at ECS Tuning | ||||
| 13 | Countersunk head screw | 2,2X7 | 2 | 09/1992 | 66218354639 | $0.50 | Shop at ECS Tuning | |||
| 14 | Universal key | X | 01/1995 | 51218205441 | $47.71 | Shop at ECS Tuning | ||||
| 15 | Universal key | X | 01/1995 | 51218205442 | $47.71 | Shop at ECS Tuning | ||||
| 16 | Door and ignition key | GRAU | X | 01/1995 | 51218205443 | $40.71 | Shop at ECS Tuning | |||
| 17 | Spare key | X | 01/1995 | 51218205444 | $40.71 | Shop at ECS Tuning | ||||
| 19 | Cover | 1 | 01/1995 | 51218201225 | $0.78 | Shop at ECS Tuning | ||||
| 20 | Key case | X | 51218213607 | $9.15 | Shop at ECS Tuning | |||||
| For vehicles with Remote control |
=Yes |
|||||||||
| 20 | Key case | X | 09/1992 | 51217006821 | $17.32 | Shop at ECS Tuning | ||||
| 21 | Set of keys with EWS control unit | 1 | 01/1995 | 51219068729 | $365.68 | Shop at ECS Tuning | ||||
| Important notice! Before ordering keys, central locking systems, control units (EWS immobilizer/CAS), etc., it is vital to ensure that the customer and/or vehicle owner present proof of authorization in the form of original vehicle documents and an official photo ID! A power of attorney from the vehicle owner is also required for authorised third parties. Copies of the specified credentials (proof of authorisation) must be kept in the vehicle records. Please inform BMW Service immediately if a vehicle key is lost so it can be deactivated in order to avoid taking the risk of losing the insurance cover due to gross negligence in the event of a theft. |
||||||||||
| For vehicles with Infrared remote control |
=Yes |
|||||||||
| 22 | Set of keys with EWS control unit | 1 | 01/1995 | 51219068731 | +core | Shop at ECS Tuning | ||||
| Important notice! Before ordering keys, central locking systems, control units (EWS immobilizer/CAS), etc., it is vital to ensure that the customer and/or vehicle owner present proof of authorization in the form of original vehicle documents and an official photo ID! A power of attorney from the vehicle owner is also required for authorised third parties. Copies of the specified credentials (proof of authorisation) must be kept in the vehicle records. Please inform BMW Service immediately if a vehicle key is lost so it can be deactivated in order to avoid taking the risk of losing the insurance cover due to gross negligence in the event of a theft. |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
