Single components for body-side frame for BMW 3 Series E36 M3 (1998)

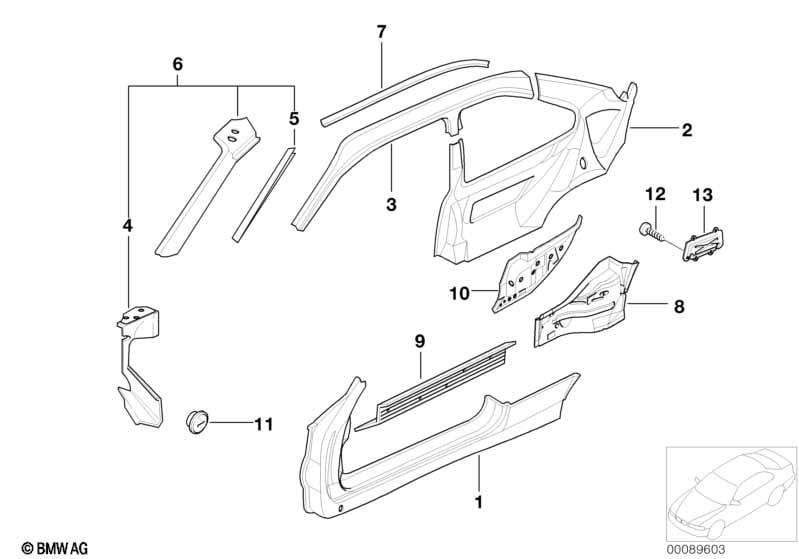

This Single components for body-side frame technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Column a with left rocker panel | 1 | 41008209929 | $553.32 | ENDED | Shop at ECS Tuning | ||||
| 01 | Column B with right rocker panel | 1 | 41008209930 | $553.32 | ENDED | Shop at ECS Tuning | ||||
| 02 | Left inner lateral trim panel | 1 | 41008151925 | $532.62 | Shop at ECS Tuning | |||||
| 02 | Right inner lateral trim panel | 1 | 41008151926 | $532.62 | Shop at ECS Tuning | |||||
| 03 | Roof frame left | 1 | 41008151923 | $497.27 | ENDED | Shop at ECS Tuning | ||||
| 03 | Right roof frame | 1 | 41008151924 | $497.27 | ENDED | Shop at ECS Tuning | ||||
| 04 | Connect.plate f.left side panel frame | 1 | 41218151929 | $147.63 | ENDED | Shop at ECS Tuning | ||||
| 04 | Connect.plate f.right side panel frame | 1 | 41218151930 | $147.63 | Shop at ECS Tuning | |||||
| 05 | Connection angle for left cowl panel | 1 | 41228151457 | $15.51 | ENDED | Shop at ECS Tuning | ||||
| 05 | Connection angle for right cowl panel | 1 | 41228151458 | $15.51 | ENDED | Shop at ECS Tuning | ||||
| 06 | Left apron | 1 | 41328119113 | $253.32 | Shop at ECS Tuning | |||||
| 06 | Right apron | 1 | 41328119114 | $253.32 | Shop at ECS Tuning | |||||
| 07 | Support left | 1 | 41328151459 | $12.60 | ENDED | Shop at ECS Tuning | ||||
| 07 | Support right | 1 | 41328151460 | $10.03 | Shop at ECS Tuning | |||||
| 08 | Rear left side member | 1 | 41118132991 | $120.63 | ENDED | Shop at ECS Tuning | ||||
| 08 | Right rear side member | 1 | 41118132992 | $120.63 | ENDED | Shop at ECS Tuning | ||||
| 09 | Left side member | 1 | 41128153759 | $150.80 | Shop at ECS Tuning | |||||
| 09 | Right side member | 1 | 41128153760 | $150.80 | ENDED | Shop at ECS Tuning | ||||
| 10 | Lateral trim panel left | 1 | 41218173729 | $64.95 | Shop at ECS Tuning | |||||
| 10 | Lateral trim panel right | 1 | 41218173730 | $64.95 | Shop at ECS Tuning | |||||
| 12 | Fillister head self-tapping screw | ST4,8X19-Z1 | 8 | 07119906765 | $0.56 | Shop at ECS Tuning | ||||
| 13 | Locking plug side frame | 2 | 51718153941 | $3.65 | Shop at ECS Tuning |
