Body skeleton for BMW 5 Series E39 525i (2003)

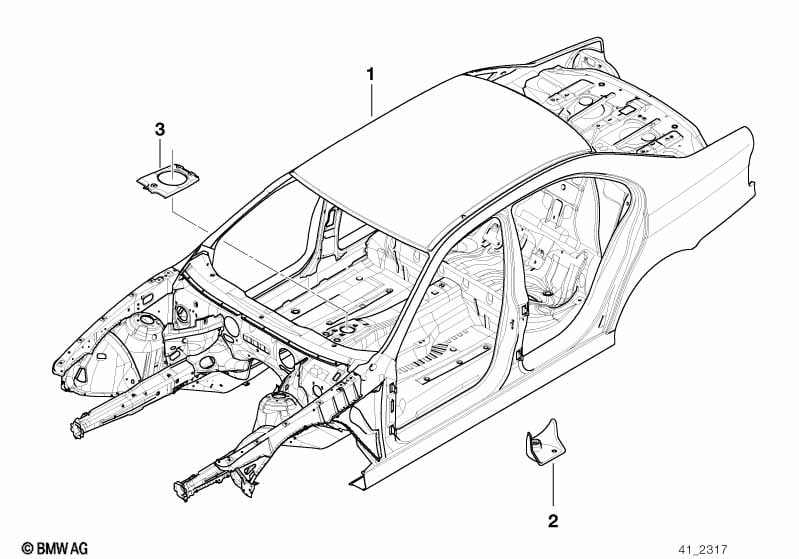

This Body skeleton technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| FOR VEHICLES WITH AND WITHOUT SKI BAG |
||||||||||
| 01 | Body skeleton | BASIS | 1 | 09/2000 | 41007033044 | ENDED | Shop at ECS Tuning | |||
| If necessary, with Pos. 2 Pos. 3 |
||||||||||
| 01 | Body skeleton sliding lifting roof | BASIS | 1 | 09/2000 | 41007033045 | ENDED | Shop at ECS Tuning | |||
| If necessary, with Pos. 2 Pos. 3 |
||||||||||
| For vehicles with Through-loading system |
S465A=Yes |
|||||||||
| 01 | Body skeleton | BASIS | 1 | 09/2000 | 41007033046 | ENDED | Shop at ECS Tuning | |||
| If necessary, with Pos. 2 Pos. 3 |
||||||||||
| 01 | Body skeleton sliding lifting roof | BASIS | 1 | 09/2000 | 41007033047 | ENDED | Shop at ECS Tuning | |||
| If necessary, with Pos. 2 Pos. 3 |
||||||||||
| 02 | Support f rear/centre left transmission | 1 | 41128203911 | ENDED | Shop at ECS Tuning | |||||
| 02 | Support f rear/centre right transmission | 1 | 41128203912 | ENDED | Shop at ECS Tuning | |||||
| 03 | Support f gear shift lug with steptronic | 1 | 41128176686 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
