Front body bracket left for BMW 5 Series E39 528i (2000)

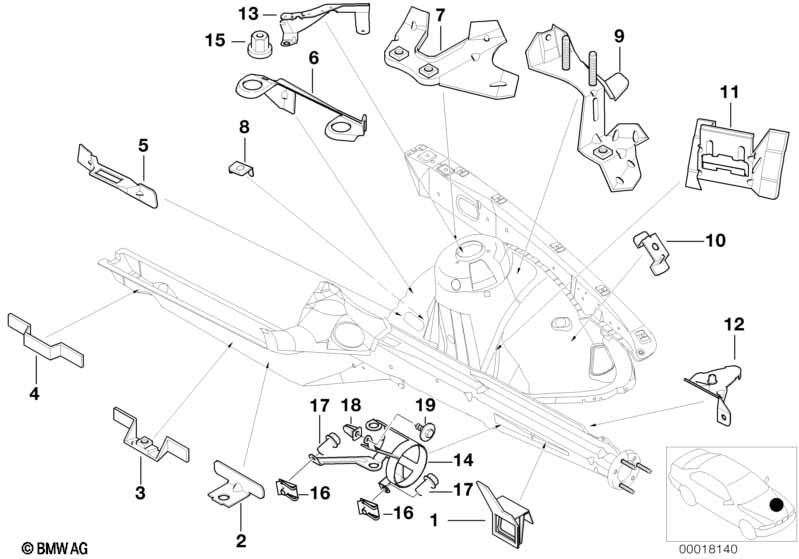

This Front body bracket left technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bracket f left radiator support | 1 | 41118125049 | $8.22 | Shop at ECS Tuning | |||||
| 02 | Bracket underfloor panelling, left | 1 | 41118189240 | $1.22 | Shop at ECS Tuning | |||||
| 03 | Bracket fuel strainer | 1 | 41118164090 | $1.17 | Shop at ECS Tuning | |||||
| 04 | Braket fuel pump | 1 | 11/1999 | 41117015154 | $1.77 | Shop at ECS Tuning | ||||
| 05 | Lower water valve/add.water pump bracket | 1 | 41148200043 | $5.63 | Shop at ECS Tuning | |||||
| 06 | Upper water valve/add.water pump bracket | 1 | 41148190207 | $6.41 | Shop at ECS Tuning | |||||
| 08 | Bracket brake pipe left | 1 | 41148187667 | $1.50 | ENDED | Shop at ECS Tuning | ||||
| 09 | Bracket f oil carrier/suction silencer | 1 | 41148172150 | $35.79 | Shop at ECS Tuning | |||||
| 10 | Suction silencer plug-in bow | 1 | 41148167199 | $5.73 | Shop at ECS Tuning | |||||
| 13 | Bracket horn | 1 | 41118241091 | $1.65 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
