Body-side frame for BMW 5 Series E39 540iP (2003)

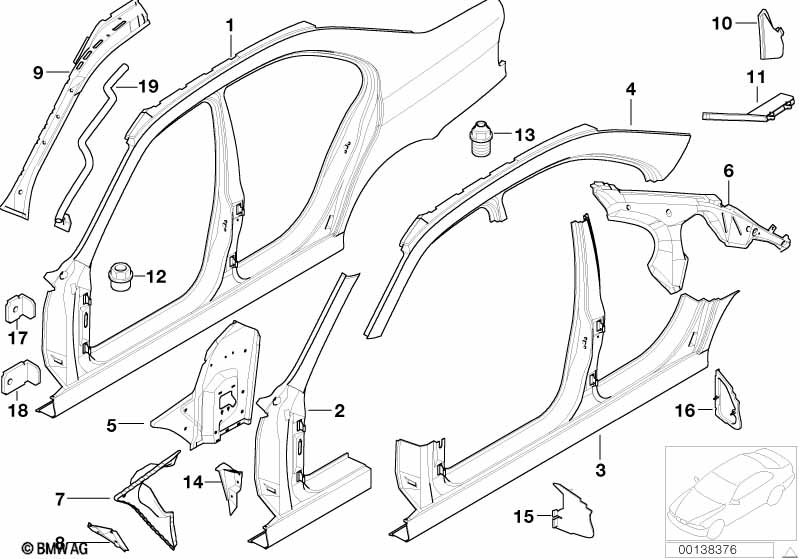

This Body-side frame technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540iP. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Suitable for vehicles with and without ITS head airbag, front ITS head airbag/rear compartment |
||||||||||
| 01 | Body-side frame left | 1 | 41007044629 | $1222.00 | ENDED | Shop at ECS Tuning | ||||
| 01 | Body-side frame right | 1 | 41007044630 | $1222.00 | ENDED | Shop at ECS Tuning | ||||
| 02 | Left exterior column A | 1 | 41008252553 | $664.43 | Shop at ECS Tuning | |||||
| 02 | Column A exterior right | 1 | 41008252554 | $664.43 | Shop at ECS Tuning | |||||
| 03 | Column B with left rocker panel | 1 | 41008205621 | $849.60 | Shop at ECS Tuning | |||||
| 03 | Column B with right rocker panel | 1 | 41008205622 | $849.60 | Shop at ECS Tuning | |||||
| Suitable for vehicles with and without ITS head airbag, front ITS head airbag/rear compartment |
||||||||||
| 04 | Roof frame left | 1 | 41007044633 | $573.01 | ENDED | Shop at ECS Tuning | ||||
| 04 | Right roof frame | 1 | 41007044634 | $561.34 | ENDED | Shop at ECS Tuning | ||||
| 05 | Left interior column A | 1 | 41118203519 | $49.31 | ENDED | Shop at ECS Tuning | ||||
| 05 | Right interior column A | 1 | 41118203520 | $49.31 | ENDED | Shop at ECS Tuning | ||||
| 06 | Left exterior column C | 1 | 41218205609 | $230.92 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 06 | Right exterior column C | 1 | 41218205610 | $230.92 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | L.low.moulded part f reinforcem.column C | 1 | 41218208297 | $6.22 | Shop at ECS Tuning | |||||
| -- | R.low.moulded part f reinforcem.column C | 1 | 41218208298 | $6.22 | Shop at ECS Tuning | |||||
| -- | Upper moulded part f reinforcem.column C | 2 | 41218208299 | $7.47 | Shop at ECS Tuning | |||||
| 07 | Connection plate left | 1 | 41118203523 | $18.17 | Shop at ECS Tuning | |||||
| 07 | Connection plate right | 1 | 41118203524 | $18.17 | Shop at ECS Tuning | |||||
| 08 | Covering plate left | 1 | 41118203525 | $7.83 | Shop at ECS Tuning | |||||
| 08 | Covering plate right | 1 | 41118203526 | $7.83 | Shop at ECS Tuning | |||||
| 09 | Inner left apron | 1 | 41218252597 | $56.93 | ENDED | Shop at ECS Tuning | ||||
| 09 | Inner right apron | 1 | 41218252598 | $56.93 | Shop at ECS Tuning | |||||
| 10 | Upper moulded part f reinforcem.column C | 2 | 41218208299 | $7.47 | Shop at ECS Tuning | |||||
| 11 | L.low.moulded part f reinforcem.column C | 1 | 41218208297 | $6.22 | Shop at ECS Tuning | |||||
| 11 | R.low.moulded part f reinforcem.column C | 1 | 41218208298 | $6.22 | Shop at ECS Tuning | |||||
| 12 | Blind rivet nut, flat headed | M5 | 4 | 61136954561 | $0.63 | Shop at ECS Tuning | ||||
| Mounting for Roof rack system |
||||||||||
| 13 | Threaded plug | M10/M6 | 4 | 41318199941 | $3.48 | ENDED | Shop at ECS Tuning | |||
| 14 | Left dashboard bracket | 1 | 41138158249 | $5.77 | Shop at ECS Tuning | |||||
| 14 | Right dashboard bracket | 1 | 41138158250 | $5.16 | Shop at ECS Tuning | |||||
| 15 | Molded part f entrance front | 2 | 41218184545 | $8.02 | Shop at ECS Tuning | |||||
| 16 | Molded part f entrance rear | 2 | 41218203781 | $8.02 | Shop at ECS Tuning | |||||
| 17 | Bracket, side panel, top | 2 | 41218186756 | $3.40 | ENDED | Shop at ECS Tuning | ||||
| 18 | Fender bracket | 4 | 41218164019 | $5.40 | ENDED | Shop at ECS Tuning | ||||
| 19 | Outlet pipe, left | 1 | 41118165633 | $17.09 | Shop at ECS Tuning | |||||
| 19 | Outlet pipe, right | 1 | 41118165634 | $17.09 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 540iP Body-side frame?
- This technical diagram illustrates the Body-side frame within the Bodywork group for the 5 Series E39 540iP produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Body-side frame left (Part #41007044629).
- Which models use the hardware listed in this Body-side frame?
- The hardware and components featured in the Body-side frame are specific to the 5 Series E39 540iP produced during 2003. These technical specifications ensure that parts like the Body-side frame left (41007044629) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Body-side frame assembly?
- Each item in the Body-side frame corresponds to the numbered list below the illustration. For the 5 Series E39 540iP, you can identify the Body-side frame left by locating its position on the schematic, which then links to the official BMW part number 41007044629 for the Bodywork section.
