Rear wheelhouse/floor parts for BMW 5 Series E39 528i (2000)

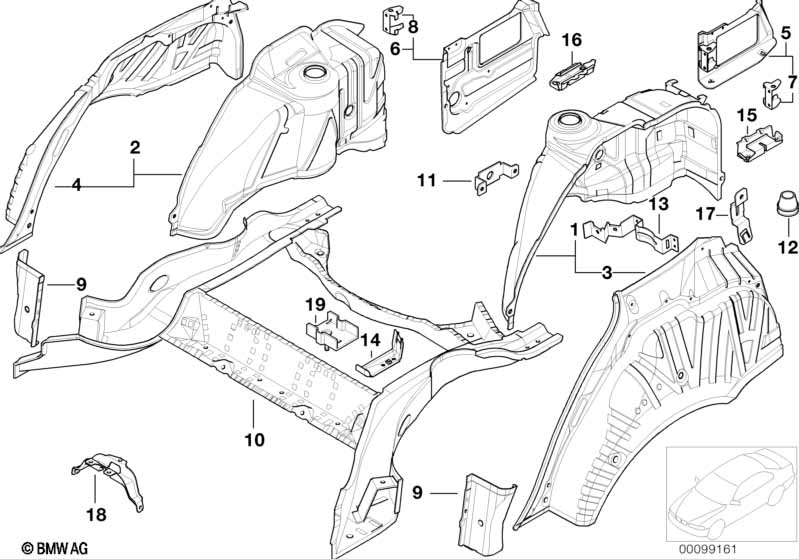

This Rear wheelhouse/floor parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear left wheelhouse | BASIS | 1 | 41148216103 | $407.54 | ENDED | Shop at ECS Tuning | |||
| 02 | Rear right wheelhouse | BASIS | 1 | 41148216104 | $407.54 | ENDED | Shop at ECS Tuning | |||
| 03 | Wheel arch outer rear left | 1 | 41148209485 | $170.62 | Shop at ECS Tuning | |||||
| 04 | Wheel arch outer rear right | 1 | 41148209486 | $170.62 | Shop at ECS Tuning | |||||
| 05 | Wheelhouse extension, left | 1 | 41148175833 | $25.05 | Shop at ECS Tuning | |||||
| 06 | Wheelhouse extension, right | 1 | 41148175834 | $29.86 | Shop at ECS Tuning | |||||
| 07 | Bracket f left rear lateral bumper | 1 | 41148201461 | $2.47 | Shop at ECS Tuning | |||||
| 08 | Bracket f right rear lateral bumper | 1 | 41148201462 | $2.47 | Shop at ECS Tuning | |||||
| 09 | Covering plate left | 1 | 41148209471 | $13.68 | Shop at ECS Tuning | |||||
| 09 | Covering plate right | 1 | 41148209472 | $13.68 | Shop at ECS Tuning | |||||
| 10 | Rear axle carrier | 1 | 41118209462 | $822.41 | ENDED | Shop at ECS Tuning | ||||
| 11 | Support f lateral upholstery | 2 | 41148232114 | $4.33 | Shop at ECS Tuning | |||||
| For vehicles with Lift-up-and-slide-back sunroof, electric |
S401A=Yes |
|||||||||
| 12 | Grommet | D=16MM | 2 | 54138222188 | $2.58 | Shop at ECS Tuning | ||||
| 14 | Rear silencer bracket | 1 | 41118165621 | $3.85 | Shop at ECS Tuning | |||||
| For vehicles with Tyre pressure control (TPC) |
S265A=Yes |
|||||||||
| 17 | Holder antenna RDC | 2 | 41148238713 | $4.33 | Shop at ECS Tuning | |||||
| 18 | Bracket f shifting arm bearing | 1 | 41128246251 | $3.23 | Shop at ECS Tuning | |||||
