Side panel/tail trim for BMW 5 Series E39 523i (2000)

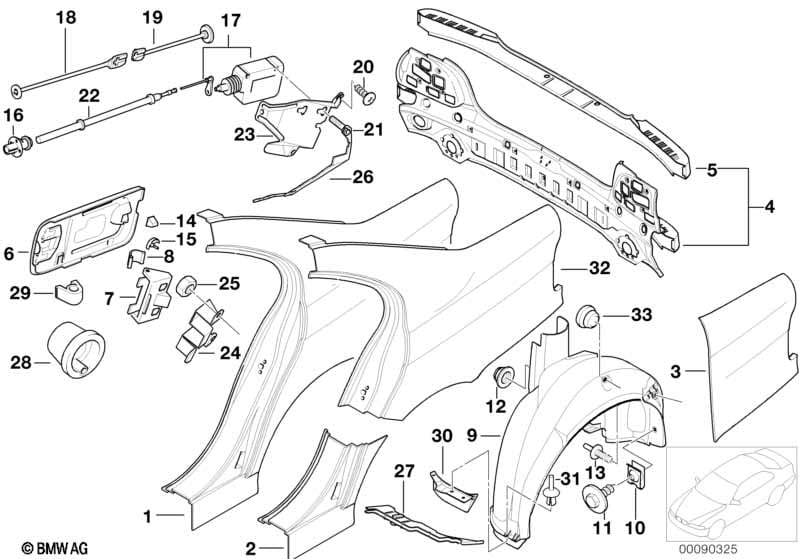

This Side panel/tail trim technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left rear side panel | 1 | 41008205623 | $477.17 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Right rear side panel | 1 | 41008205624 | $477.17 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Molded part column C, left | 1 | 41218208301 | $9.33 | Shop at ECS Tuning | |||||
| -- | Molded part column C, right | 1 | 41218208302 | $9.33 | Shop at ECS Tuning | |||||
| 02 | Section of rear left fender | 1 | 41008205629 | $150.71 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 02 | Section of rear right fender | 1 | 41008205630 | $150.71 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Molded part column C, left | 1 | 41218208301 | $9.33 | Shop at ECS Tuning | |||||
| -- | Molded part column C, right | 1 | 41218208302 | $9.33 | Shop at ECS Tuning | |||||
| 03 | Section of rear left fender | 1 | 41008205627 | $188.96 | ENDED | Shop at ECS Tuning | ||||
| 03 | Section of rear right fender | 1 | 41008205628 | $188.96 | ENDED | Shop at ECS Tuning | ||||
| 04 | Complete tail trim | 1 | 09/2000 | 41348205601 | $315.59 | Shop at ECS Tuning | ||||
| 05 | Outer panel tail trim | 1 | 41348205608 | $173.59 | Shop at ECS Tuning | |||||
| 06 | Fill-in flap | 1 | 51178204412 | $34.73 | Shop at ECS Tuning | |||||
| 07 | Hinge, gas cap | 1 | 51171970450 | $11.62 | Shop at ECS Tuning | |||||
| 08 | Spring | 1 | 51171969235 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Cover, wheel housing, rear left | 1 | 51718172461 | $72.23 | Shop at ECS Tuning | |||||
| 09 | Cover, wheel housing, rear right | 1 | 51718172462 | $72.23 | Shop at ECS Tuning | |||||
| 10 | Body nut | ST4,8-11-ZN | 4 | 07129904217 | $0.25 | Shop at ECS Tuning | ||||
| 11 | Hex head screw | ST 4,8X18 SW8 | 4 | 07147129161 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Plastic nut for coarse threaded pin | M6 | 4 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 13 | Expanding rivet | 6 | 51118174185 | $0.30 | Shop at ECS Tuning | |||||
| For vehicles with Central locking system |
=Yes |
|||||||||
| 14 | Cap | 1 | 51171928699 | $0.62 | Shop at ECS Tuning | |||||
| 15 | Stop buffer | 1 | 51171853772 | $1.52 | Shop at ECS Tuning | |||||
| 16 | Sleeve | 1 | 51258128707 | $2.76 | Shop at ECS Tuning | |||||
| 17 | Filler flap actuator | 1 | 67116987625 | $57.47 | Shop at ECS Tuning | |||||
| 18 | Pulling strip f emergency mechanism | 1 | 51258132168 | $0.97 | Shop at ECS Tuning | |||||
| 19 | Emergency mechanism | 1 | 51258132166 | $0.93 | Shop at ECS Tuning | |||||
| 20 | Torx bolt | ISA M5X10 | 2 | 54128132329 | $0.25 | Shop at ECS Tuning | ||||
| 21 | Torx-bolt for plastic material | ISA TS5X16 | 2 | 07149113701 | $0.38 | Shop at ECS Tuning | ||||
| 22 | Actuator bowden cable | 195MM | 1 | 51258208923 | $8.58 | Shop at ECS Tuning | ||||
| 23 | Actuator holder | 1 | 51258204408 | $3.62 | Shop at ECS Tuning | |||||
| 24 | Fill-in flap bracket | 1 | 41358159079 | $2.95 | Shop at ECS Tuning | |||||
| 25 | Hex nut | AM5-8-ZNS3 | 2 | 07129902975 | $0.36 | Shop at ECS Tuning | ||||
| 26 | Molded part column C, left | 1 | 41218208301 | $9.33 | Shop at ECS Tuning | |||||
| 26 | Molded part column C, right | 1 | 41218208302 | $9.33 | Shop at ECS Tuning | |||||
| 27 | Moulded part f entrance | 2 | 41148187596 | ENDED, +core | Shop at ECS Tuning | |||||
| 28 | Filler tube gasket | 1 | 51718174883 | $5.71 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO FILLER CAP |
||||||||||
| 29 | Cap | 1 | 51171928699 | $0.62 | Shop at ECS Tuning | |||||
| 30 | Left rear door sill cover deflector lip | 1 | 51718222167 | $7.77 | Shop at ECS Tuning | |||||
| 30 | Right rear door sill cover deflector lip | 1 | 51718222168 | $7.77 | Shop at ECS Tuning | |||||
| 31 | Expanding rivet | 4 | 51161881149 | $0.20 | Shop at ECS Tuning | |||||
| 32 | Section of rear left fender | 1 | 41007057387 | $344.49 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 32 | Section of rear right fender | 1 | 41007057388 | $344.49 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Molded part column C, left | 1 | 41218208301 | $9.33 | Shop at ECS Tuning | |||||
| -- | Molded part column C, right | 1 | 41218208302 | $9.33 | Shop at ECS Tuning | |||||
| 33 | Plug | 2 | 51717892266 | $16.00 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
