Front side panel for BMW 5 Series E39 528i (2000)

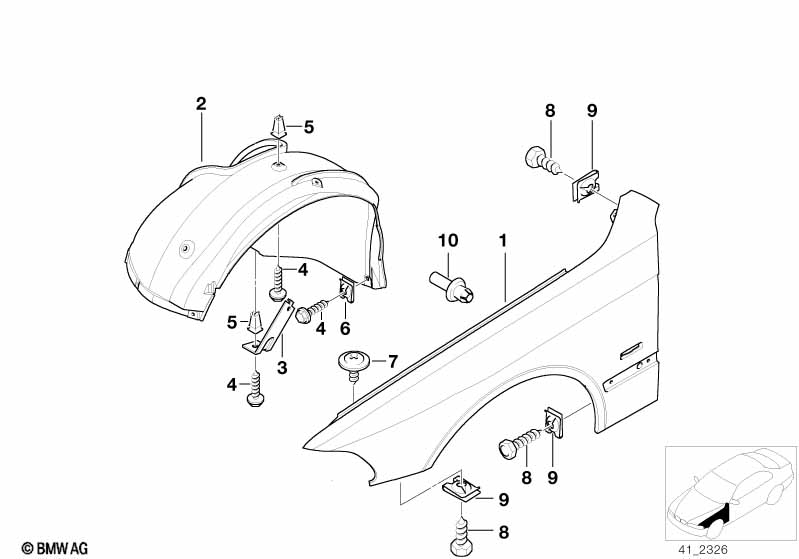

This Front side panel technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side panel, front left | 1 | 41358162133 | $406.02 | Shop at ECS Tuning | |||||
| 01 | Side panel, front right | 1 | 41358162134 | $406.02 | Shop at ECS Tuning | |||||
| 02 | Cover, wheel housing, front left | 1 | 51718159423 | $54.08 | Shop at ECS Tuning | |||||
| 02 | Cover, wheel housing, front right | 1 | 51718159424 | $54.08 | Shop at ECS Tuning | |||||
| 03 | Holder wheelwell cover front left | 1 | 51718205059 | $7.33 | Shop at ECS Tuning | |||||
| 03 | Bracket covering wheel housing fr. right | 1 | 51718205060 | $1.28 | Shop at ECS Tuning | |||||
| 04 | Hex head screw | ST 4,8X18 SW8 | X | 07147129161 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Expanding nut | ST 4.8 WEISS | X | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 06 | Body nut | ST4,8-11-ZN | X | 07129904217 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Torx bolt | ISA ST6,3X14 | X | 41009163211 | $0.43 | Shop at ECS Tuning | ||||
| 07 | Torx bolt | ISA ST6,3X21 | X | 41358203482 | $0.42 | Shop at ECS Tuning | ||||
| 08 | Hex head screw | ST6,3X13-F-Z2 | X | 07119916964 | $0.47 | ENDED | Shop at ECS Tuning | |||
| 09 | Body nut | ST6,3-1-ZNS3 | X | 07129904231 | Shop at ECS Tuning | |||||
| 10 | Expanding rivet | 6 | 51478166992 | $0.37 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
