Engine hood/mounting parts for BMW 5 Series E39 528i (2000)

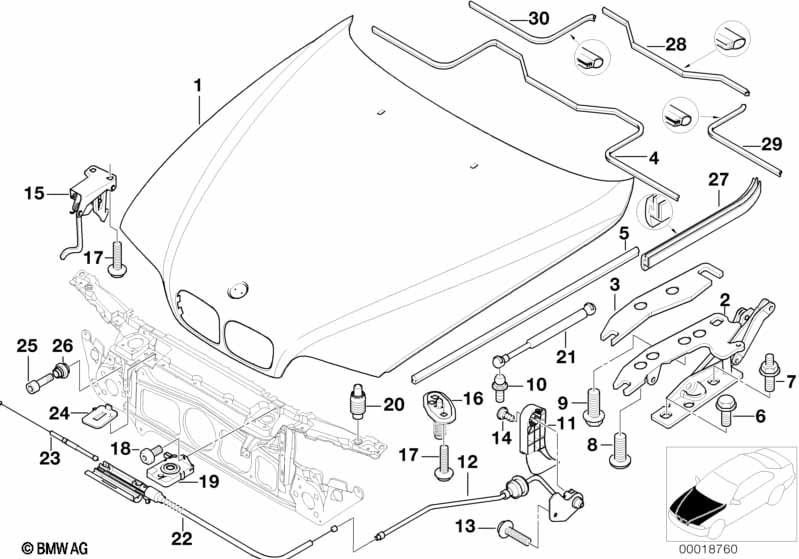

This Engine hood/mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hood | 1 | 03/1998 | 41618238592 | $686.93 | Shop at ECS Tuning | ||||
| 02 | Left engine hood hinge | 1 | 41618203275 | $91.08 | Shop at ECS Tuning | |||||
| 02 | Right engine hood hinge | 1 | 41618203276 | $91.08 | Shop at ECS Tuning | |||||
| 03 | Spacer | 4,0MM | X | 41618208436 | $1.38 | Shop at ECS Tuning | ||||
| 03 | Spacer | 2,0MM | X | 41618208437 | $1.38 | Shop at ECS Tuning | ||||
| 03 | Spacer | 3,0MM | X | 41618208438 | $1.38 | Shop at ECS Tuning | ||||
| 05 | Lateral engine hood sealing | 2 | 51718184153 | $11.50 | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M8X22 | 3 | 07119905739 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Earth pin | M8X20/M6X11 | 1 | 07147202371 | Shop at ECS Tuning | |||||
| 08 | Torx-bolt with washer | ISA M8X24 | 2 | 07149137069 | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | ISA M8X23 | 2 | 07147172616 | $0.71 | Shop at ECS Tuning | ||||
| 10 | Ball pin | M8X13,5MM | 2 | 51247010221 | $2.03 | Shop at ECS Tuning | ||||
| 11 | Bowden cable lever | 1 | 51238226621 | $3.18 | Shop at ECS Tuning | |||||

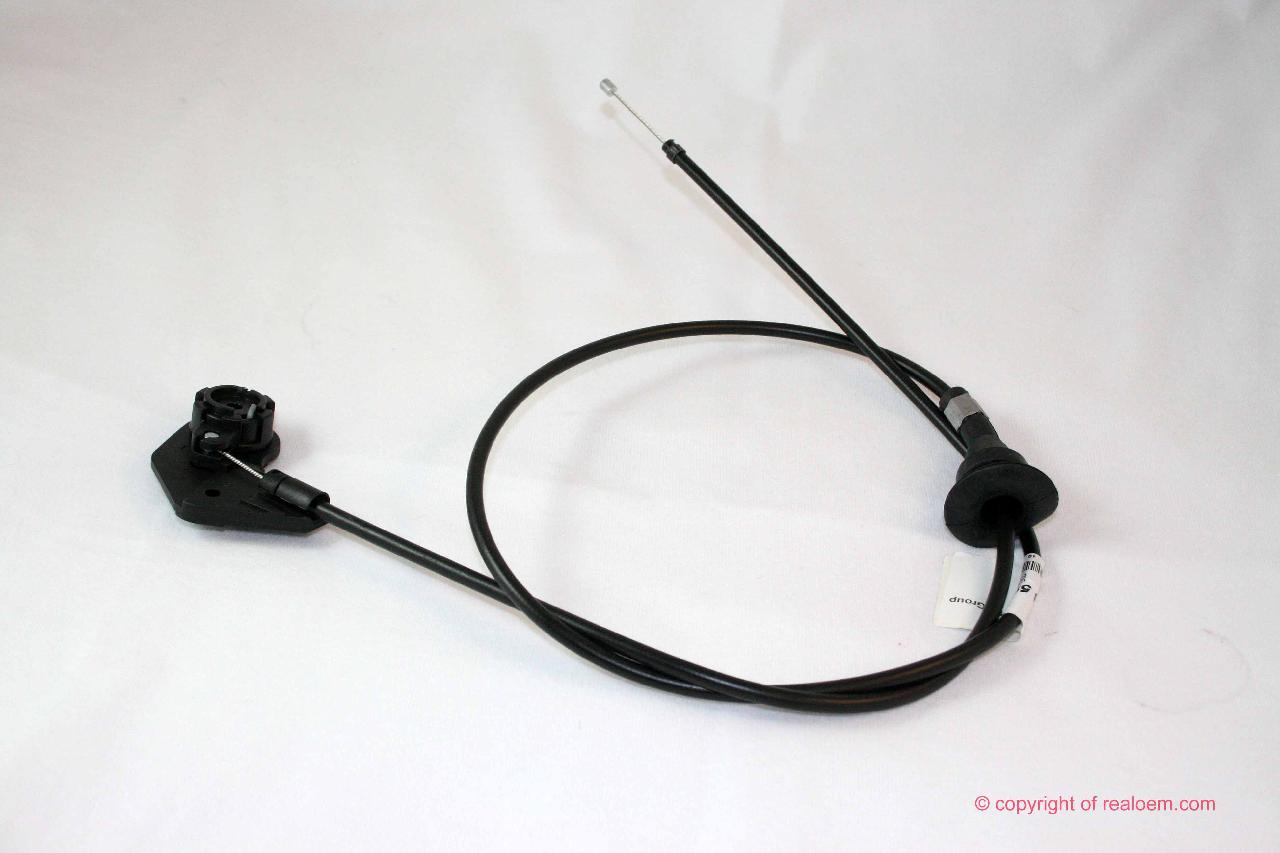

| 12 | Engine hood mechanism | 1 | 51238176595 | $26.36 | Shop at ECS Tuning | |||||
| 13 | Torx bolt | ST4,2X16 | 1 | 51161956032 | $1.42 | Shop at ECS Tuning | ||||
| 14 | Phillips screw f plastic material | TS 5X13 | 1 | 07146959892 | $0.30 | Shop at ECS Tuning | ||||
| 15 | Hood catch | 1 | 51238172164 | $25.57 | Shop at ECS Tuning | |||||
| 16 | Upper part of hood lock | 2 | 51238176594 | $18.95 | Shop at ECS Tuning | |||||
| 17 | Torx-bolt with washer | M6X14 | 6 | 07149156085 | $0.56 | Shop at ECS Tuning | ||||
| 18 | Torx-bolt with washer | M6X12 | 6 | 07146985055 | $0.38 | Shop at ECS Tuning | ||||
| 19 | Lower part of hood lock | 2 | 51238203859 | $18.13 | Shop at ECS Tuning | |||||
| 20 | Stop buffer | 2 | 51248254063 | $1.35 | Shop at ECS Tuning | |||||
| 21 | Gas pressurized spring | 700N | 2 | 51238174866 | $41.57 | Shop at ECS Tuning | ||||
| 22 | Bowden cable | 1 | 51238190754 | $21.62 | Shop at ECS Tuning | |||||
| 23 | Centre bowden cable | 1 | 51238176596 | $21.62 | Shop at ECS Tuning | |||||
| 24 | Hood catch end support | 1 | 51238182904 | $2.03 | Shop at ECS Tuning | |||||
| 25 | Stop buffer | M6 | 2 | 51241961697 | $2.76 | Shop at ECS Tuning | ||||
| 26 | Hex nut | M6-04-2-ZN | 2 | 07119921054 | $0.11 | Shop at ECS Tuning | ||||
| 27 | Left hinge cover | 1 | 51718215267 | $19.20 | Shop at ECS Tuning | |||||
| 27 | Right hinge cover | 1 | 51718215268 | $19.20 | Shop at ECS Tuning | |||||
| 28 | Sealing windshield panel | 1 | 03/1998 | 51718238595 | $10.84 | Shop at ECS Tuning | ||||
| 29 | seal, microfine filter housing left | 1 | 03/1998 | 51718238599 | $21.68 | Shop at ECS Tuning | ||||
| 30 | seal, microfine filter housing right | 1 | 03/1998 | 51718238600 | $21.68 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Engine hood/mounting parts?
- This technical diagram illustrates the Engine hood/mounting parts within the Bodywork group for the 5 Series E39 528i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Hood (Part #41618238592).
- Which models use the hardware listed in this Engine hood/mounting parts?
- The hardware and components featured in the Engine hood/mounting parts are specific to the 5 Series E39 528i produced during 2000. These technical specifications ensure that parts like the Hood (41618238592) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine hood/mounting parts assembly?
- Each item in the Engine hood/mounting parts corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Hood by locating its position on the schematic, which then links to the official BMW part number 41618238592 for the Bodywork section.
