Splash wall parts for BMW 5 Series E39 525i (2003)

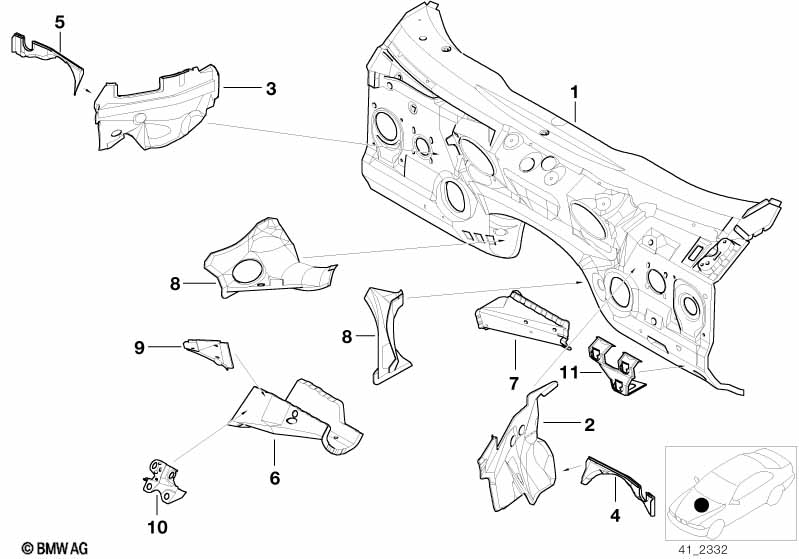

This Splash wall parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Splash wall | BASIS | 1 | 41138196484 | $695.87 | Shop at ECS Tuning | ||||
| 02 | Partition left | 1 | 41138208655 | $37.33 | Shop at ECS Tuning | |||||
| 03 | Partition right | 1 | 41138208656 | $37.33 | Shop at ECS Tuning | |||||
| 04 | Cover panel, engine compartment, left | 1 | 41118159151 | $5.37 | Shop at ECS Tuning | |||||
| 05 | Cover panel, engine compartment, right | 1 | 41118159152 | $5.37 | Shop at ECS Tuning | |||||
| 06 | Left reinforcement floor panel | 1 | 41118203517 | $34.30 | ENDED | Shop at ECS Tuning | ||||
| 06 | Right reinforcement floor panel | 1 | 41118203518 | $34.30 | ENDED | Shop at ECS Tuning | ||||
| 07 | Left splash wall reinforcement | 1 | 41118203515 | $14.37 | Shop at ECS Tuning | |||||
| 07 | Right splash wall reinforcement | 1 | 41118203516 | $14.37 | Shop at ECS Tuning | |||||
| 08 | Supporting strut, front wall left | 1 | 41118203433 | $78.30 | Shop at ECS Tuning | |||||
| 08 | Supporting strut, front wall right | 1 | 41118203434 | $78.30 | Shop at ECS Tuning | |||||
| 09 | Covering plate left | 1 | 41118203525 | $7.83 | Shop at ECS Tuning | |||||
| 09 | Covering plate right | 1 | 41118203526 | $7.83 | Shop at ECS Tuning | |||||
| 10 | Bracket for Independent heater | 1 | 41118167258 | $7.57 | Shop at ECS Tuning | |||||
| 11 | Latent heat accumulator bracket | 1 | 41148364481 | $7.80 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525i Splash wall parts?
- This technical diagram illustrates the Splash wall parts within the Bodywork group for the 5 Series E39 525i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Splash wall (Part #41138196484).
- Which models use the hardware listed in this Splash wall parts?
- The hardware and components featured in the Splash wall parts are specific to the 5 Series E39 525i produced during 2003. These technical specifications ensure that parts like the Splash wall (41138196484) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Splash wall parts assembly?
- Each item in the Splash wall parts corresponds to the numbered list below the illustration. For the 5 Series E39 525i, you can identify the Splash wall by locating its position on the schematic, which then links to the official BMW part number 41138196484 for the Bodywork section.
