Rear spoiler M-technik for BMW 3 Series E36 318ti (1995)

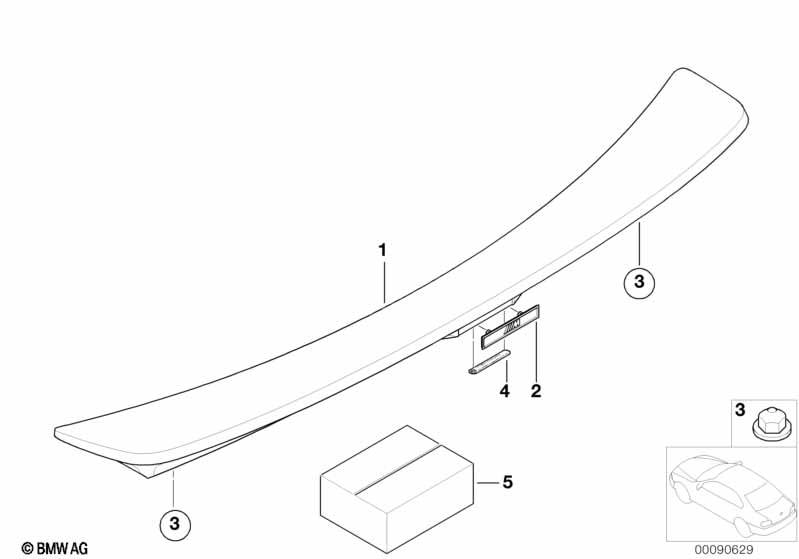

This Rear spoiler M-technik technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Primed rear spoiler | M TECHNIC | 1 | 51712490022 | Shop at ECS Tuning | |||||
| For vehicles with Rear window wiper |
=Yes |
|||||||||
| 01 | Primed rear spoiler | M TECHNIC | 1 | 51712490023 | Shop at ECS Tuning | |||||
| 02 | Badge | - M - | 1 | 51132264666 | $40.13 | Shop at ECS Tuning | ||||
| 03 | Self-locking hex nut | M6 | X | 07147153450 | $0.47 | Shop at ECS Tuning | ||||
| 04 | Type plate | - M - | 1 | 51712490052 | ENDED | Shop at ECS Tuning | ||||
| 05 | Mounting-kit | 1 | 82699405711 | $21.50 | ENDED, ABE 9789243 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- ABE = Allgemeine Betriebserlaubnis (General Operating Permit)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318ti Rear spoiler M-technik?
- This technical diagram illustrates the Rear spoiler M-technik within the Bodywork group for the 3 Series E36 318ti produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Primed rear spoiler (Part #51712490022).
- Which models use the hardware listed in this Rear spoiler M-technik?
- The hardware and components featured in the Rear spoiler M-technik are specific to the 3 Series E36 318ti produced during 1995. These technical specifications ensure that parts like the Primed rear spoiler (51712490022) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear spoiler M-technik assembly?
- Each item in the Rear spoiler M-technik corresponds to the numbered list below the illustration. For the 3 Series E36 318ti, you can identify the Primed rear spoiler by locating its position on the schematic, which then links to the official BMW part number 51712490022 for the Bodywork section.
