Body skeleton for BMW 5 Series E39 525d (2003)
This Body skeleton technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with ITS - Head airbag or automatic trunk lid mechanism |
S262A=Yes S316A=Yes |
|||||||||
| 01 | Body skeleton sliding lifting roof | BASIS | 1 | 09/1997 | 41007007732 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Support f gear shift lug with steptronic | 1 | 09/1997 | 41128176686 | ENDED | Shop at ECS Tuning | ||||
| -- | Support f front/centre left transmiss. | 1 | 09/1997 | 41128203909 | Shop at ECS Tuning | |||||
| -- | Support f front/centre right transmiss. | 1 | 09/1997 | 41128203910 | ENDED | Shop at ECS Tuning | ||||
| 01 | Body skeleton | BASIS | 1 | 09/1997 | 41007007735 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Support f gear shift lug with steptronic | 1 | 09/1997 | 41128176686 | ENDED | Shop at ECS Tuning | ||||
| -- | Support f front/centre left transmiss. | 1 | 09/1997 | 41128203909 | Shop at ECS Tuning | |||||
| -- | Support f front/centre right transmiss. | 1 | 09/1997 | 41128203910 | ENDED | Shop at ECS Tuning | ||||
| 02 | Support f rear left transmission | 1 | 41128186471 | ENDED | Shop at ECS Tuning | |||||
| 02 | Support f rear right transmission | 1 | 41128186472 | ENDED | Shop at ECS Tuning | |||||
| 03 | Support f gear shift lug with steptronic | 1 | 41128176686 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525d Body skeleton?

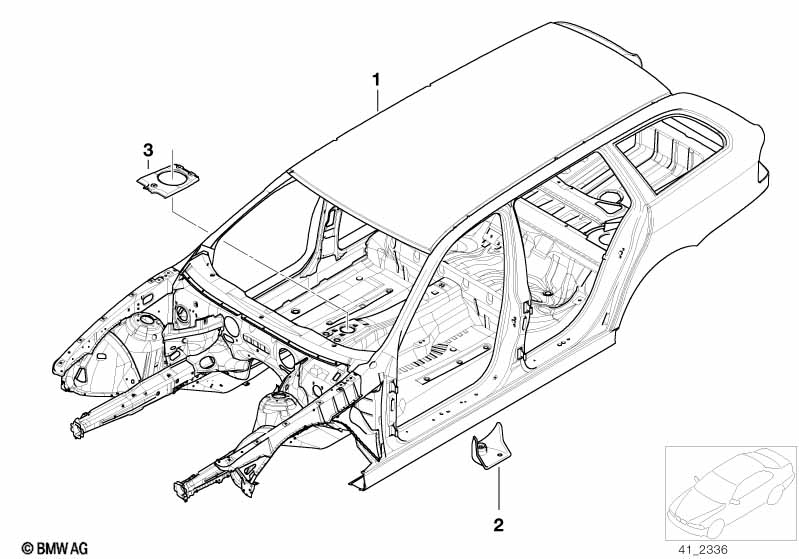

- This technical diagram illustrates the Body skeleton within the Bodywork group for the 5 Series E39 525d produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Body skeleton sliding lifting roof (Part #41007007732).
- Which models use the hardware listed in this Body skeleton?
- The hardware and components featured in the Body skeleton are specific to the 5 Series E39 525d produced during 2003. These technical specifications ensure that parts like the Body skeleton sliding lifting roof (41007007732) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Body skeleton assembly?
- Each item in the Body skeleton corresponds to the numbered list below the illustration. For the 5 Series E39 525d, you can identify the Body skeleton sliding lifting roof by locating its position on the schematic, which then links to the official BMW part number 41007007732 for the Bodywork section.
