Body-side frame for BMW 5 Series E39 530d (2002)

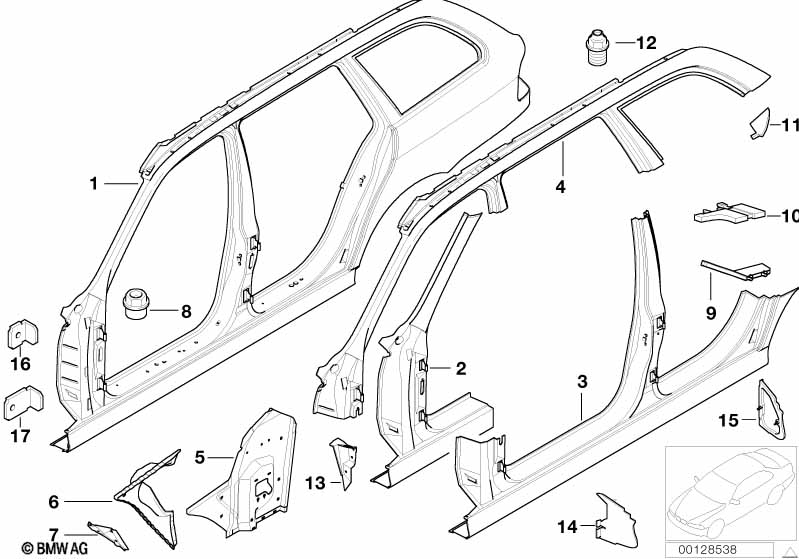

This Body-side frame technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with ITS - Head airbag |
S262A=Yes |
|||||||||
| 01 | Body-side frame left | 1 | 09/1997 | 41008158001 | $1222.00 | ENDED | Shop at ECS Tuning | |||
| 01 | Body-side frame right | 1 | 09/1997 | 41008158002 | $1222.00 | ENDED | Shop at ECS Tuning | |||
| 02 | Left exterior column A | 1 | 41008252553 | $664.43 | Shop at ECS Tuning | |||||
| 02 | Column A exterior right | 1 | 41008252554 | $664.43 | Shop at ECS Tuning | |||||
| 03 | Column B with left rocker panel | 1 | 41008205621 | $849.60 | Shop at ECS Tuning | |||||
| 03 | Column B with right rocker panel | 1 | 41008205622 | $849.60 | Shop at ECS Tuning | |||||
| For vehicles with ITS - Head airbag |
S262A=Yes |
|||||||||
| 04 | Roof frame left | 1 | 09/1997 | 41008158003 | $577.53 | ENDED | Shop at ECS Tuning | |||
| 04 | Right roof frame | 1 | 09/1997 | 41008158004 | $546.84 | ENDED | Shop at ECS Tuning | |||
| 05 | Left interior column A | 1 | 41118203519 | $49.31 | ENDED | Shop at ECS Tuning | ||||
| 05 | Right interior column A | 1 | 41118203520 | $49.31 | ENDED | Shop at ECS Tuning | ||||
| 06 | Connection plate left | 1 | 41118203523 | $18.17 | Shop at ECS Tuning | |||||
| 06 | Connection plate right | 1 | 41118203524 | $18.17 | Shop at ECS Tuning | |||||
| 07 | Covering plate left | 1 | 41118203525 | $7.83 | Shop at ECS Tuning | |||||
| 07 | Covering plate right | 1 | 41118203526 | $7.83 | Shop at ECS Tuning | |||||
| 08 | Blind rivet nut, flat headed | M5 | 4 | 61136954561 | $0.63 | Shop at ECS Tuning | ||||
| 09 | Moulded part f entrance | 2 | 41218216189 | $8.89 | ENDED | Shop at ECS Tuning | ||||
| 10 | Molded part column C, exterior | 2 | 41218216191 | $5.36 | ENDED | Shop at ECS Tuning | ||||
| 11 | Molded part column D | 2 | 41218216197 | $12.61 | ENDED | Shop at ECS Tuning | ||||
| Mounting for Roof rack system |
||||||||||
| 12 | Threaded plug | M10/M6 | 4 | 41318199941 | $3.48 | ENDED | Shop at ECS Tuning | |||
| 13 | Left dashboard bracket | 1 | 41138158249 | $5.77 | Shop at ECS Tuning | |||||
| 13 | Right dashboard bracket | 1 | 41138158250 | $5.16 | Shop at ECS Tuning | |||||
| 14 | Molded part f entrance front | 2 | 41218184545 | $8.02 | Shop at ECS Tuning | |||||
| 15 | Molded part f entrance rear | 2 | 41218203781 | $8.02 | Shop at ECS Tuning | |||||
| 16 | Bracket, side panel, top | 2 | 41218186756 | $3.40 | ENDED | Shop at ECS Tuning | ||||
| 17 | Fender bracket | 4 | 41218164019 | $5.40 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
