Single components for body-side frame for BMW 5 Series E39 525d (2003)

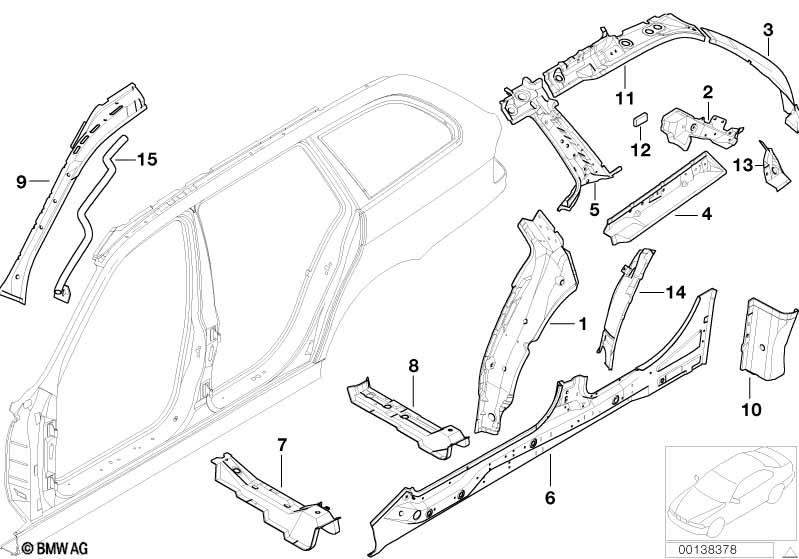

This Single components for body-side frame technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Reinforcement left | 1 | 41218216083 | $114.23 | ENDED | Shop at ECS Tuning | ||||
| 01 | Reinforcement right | 1 | 41218216084 | $114.23 | ENDED | Shop at ECS Tuning | ||||
| 02 | Left exterior column C | 1 | 41218216085 | $133.54 | ENDED | Shop at ECS Tuning | ||||
| 02 | Right exterior column C | 1 | 41218216086 | $133.54 | ENDED | Shop at ECS Tuning | ||||
| 03 | Left interior column D | 1 | 41218216087 | $136.52 | Shop at ECS Tuning | |||||
| 03 | Right interior column D | 1 | 41218216088 | $120.43 | Shop at ECS Tuning | |||||
| 04 | Left railing reinforcement | 1 | 41218216089 | $125.78 | ENDED | Shop at ECS Tuning | ||||
| 04 | Right railing reinforcement | 1 | 41218216090 | $125.78 | ENDED | Shop at ECS Tuning | ||||
| 05 | Left interior column C | 1 | 41218216081 | $73.86 | ENDED | Shop at ECS Tuning | ||||
| 05 | Right interior column C | 1 | 41218216082 | $73.86 | ENDED | Shop at ECS Tuning | ||||
| 06 | Left side member | 1 | 41118208915 | $128.14 | Shop at ECS Tuning | |||||
| 06 | Right side member | 1 | 41118208916 | $128.14 | ENDED | Shop at ECS Tuning | ||||
| 07 | Left front seat console | 1 | 41118208911 | $54.22 | Shop at ECS Tuning | |||||
| 07 | Right front seat console | 1 | 41118208912 | $56.68 | Shop at ECS Tuning | |||||
| 08 | Left rear seat console | 1 | 41118208913 | $54.22 | ENDED | Shop at ECS Tuning | ||||
| 08 | Right rear seat console | 1 | 41118208914 | $54.22 | Shop at ECS Tuning | |||||
| 09 | Inner left apron | 1 | 41218252597 | $56.93 | ENDED | Shop at ECS Tuning | ||||
| 09 | Inner right apron | 1 | 41218252598 | $56.93 | Shop at ECS Tuning | |||||
| 10 | Covering plate left | 1 | 41148209471 | $13.68 | Shop at ECS Tuning | |||||
| 10 | Covering plate right | 1 | 41148209472 | $13.68 | Shop at ECS Tuning | |||||
| For vehicles with ITS - Head airbag |
S262A=Yes |
|||||||||
| 11 | Left rear interior roof frame | 1 | 41218240539 | $165.17 | ENDED | Shop at ECS Tuning | ||||
| 11 | Right REAR INTERIOR ROOF FRAME | 1 | 41218240540 | $165.17 | ENDED | Shop at ECS Tuning | ||||
| 12 | Moulded part f column C, interior left | 1 | 41218216193 | $5.30 | ENDED | Shop at ECS Tuning | ||||
| 12 | Molded part f column C, interior right | 1 | 41218216194 | $5.30 | ENDED | Shop at ECS Tuning | ||||
| 13 | reinforcement D-pillar inside left | 1 | 41218250385 | $6.30 | ENDED | Shop at ECS Tuning | ||||
| 13 | reinforcement D-pillar inside right | 1 | 41218250386 | $6.30 | ENDED | Shop at ECS Tuning | ||||
| 14 | Reinforcement column C inside left | 1 | 41117009915 | $54.22 | ENDED | Shop at ECS Tuning | ||||
| 14 | Reinforcement column C inside right | 1 | 41117009916 | $54.22 | ENDED | Shop at ECS Tuning | ||||
| 15 | Outlet pipe, left | 1 | 41118165633 | $17.09 | Shop at ECS Tuning | |||||
| 15 | Outlet pipe, right | 1 | 41118165634 | $17.09 | Shop at ECS Tuning | |||||
