Floor parts rear interior for BMW 5 Series E39 523i (1998)

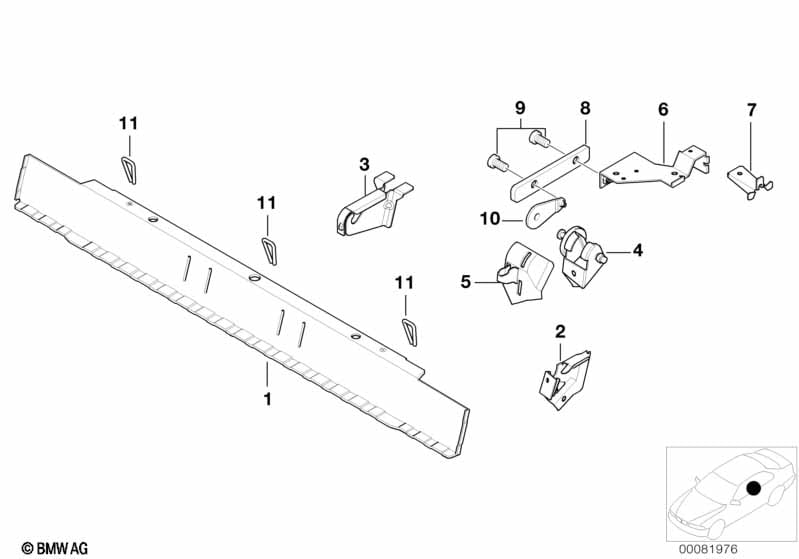

This Floor parts rear interior technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cross member floor panel front | 1 | 41118209468 | $128.33 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bracket backrest outer right | 1 | 41118209487 | $6.05 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bracket backrest inner right | 1 | 41118209488 | $4.62 | ENDED | Shop at ECS Tuning | ||||
| 03 | Centre backrest bearing bracket | 1 | 41118209478 | $9.44 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bracket backrest outer left | 1 | 41118209491 | $21.62 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bracket backrest outer right | 1 | 41118209492 | $21.62 | ENDED | Shop at ECS Tuning | ||||
| 05 | Support f right lateral upholstery | 1 | 41108209494 | $3.79 | ENDED | Shop at ECS Tuning | ||||
| 05 | Support f left lateral upholstery | 1 | 01/1998 | 41108209493 | $3.79 | ENDED | Shop at ECS Tuning | |||
| 06 | Left support f roll.blind sight protect. | 1 | 41148209489 | $5.78 | ENDED | Shop at ECS Tuning | ||||
| 06 | Right support f roll.blind sight protect | 1 | 41148209490 | $7.15 | ENDED | Shop at ECS Tuning | ||||
| 07 | Trim panel bracket | 2 | 41218185061 | $3.14 | ENDED | Shop at ECS Tuning | ||||
| 08 | Strain relief left | 1 | 51718217257 | $0.85 | ENDED | Shop at ECS Tuning | ||||
| 09 | Torx bolt | 7/16 UNF-2A | 2 | 07149153503 | $1.05 | Shop at ECS Tuning | ||||
| 10 | Support f strain relief | 1 | 51718240977 | $1.72 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 523i Floor parts rear interior?
- This technical diagram illustrates the Floor parts rear interior within the Bodywork group for the 5 Series E39 523i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Cross member floor panel front (Part #41118209468).
- Which models use the hardware listed in this Floor parts rear interior?
- The hardware and components featured in the Floor parts rear interior are specific to the 5 Series E39 523i produced during 1998. These technical specifications ensure that parts like the Cross member floor panel front (41118209468) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Floor parts rear interior assembly?
- Each item in the Floor parts rear interior corresponds to the numbered list below the illustration. For the 5 Series E39 523i, you can identify the Cross member floor panel front by locating its position on the schematic, which then links to the official BMW part number 41118209468 for the Bodywork section.
