Side panel/tail trim for BMW 5 Series E39 530d (2002)

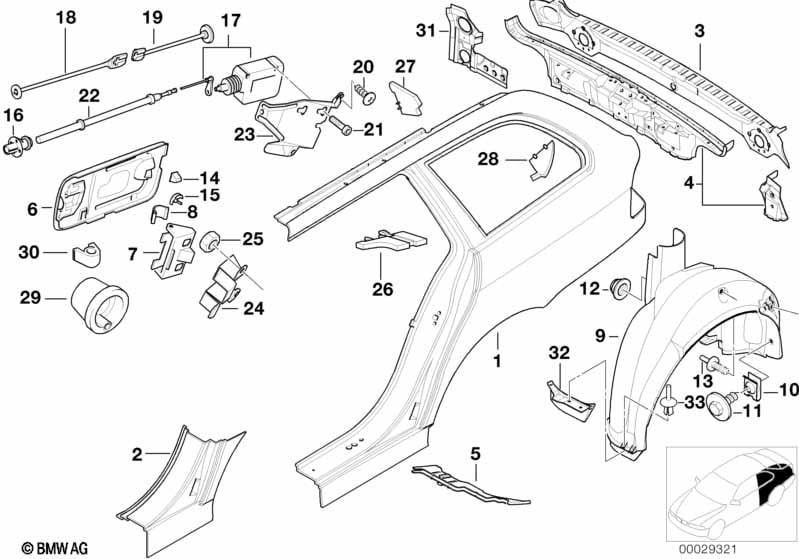

This Side panel/tail trim technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Suitable for vehicles with and without ITS - Head airbag |
||||||||||
| 01 | Left rear side panel | ECE&US | 1 | 09/1997 | 41008158005 | $477.17 | Shop at ECS Tuning | |||
| 01 | Right rear side panel | ECE&US | 1 | 09/1997 | 41008158006 | $477.17 | Shop at ECS Tuning | |||
| 02 | Section of rear left fender | 1 | 41008205629 | $150.71 | ENDED | Shop at ECS Tuning | ||||
| 02 | Section of rear right fender | 1 | 41008205630 | $150.71 | Shop at ECS Tuning | |||||
| 03 | Outer panel tail trim | 1 | 41348230235 | $173.59 | Shop at ECS Tuning | |||||
| 04 | Interior tail trim | 1 | 41348230236 | $268.25 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Reinforcement, tail trim, right | 1 | 41348232210 | $53.62 | Shop at ECS Tuning | |||||
| 05 | Moulded part f entrance | 2 | 41218216189 | $8.89 | ENDED | Shop at ECS Tuning | ||||
| 06 | Fill-in flap | 1 | 51178204412 | $34.73 | Shop at ECS Tuning | |||||
| 07 | Hinge, gas cap | 1 | 51171970450 | $11.62 | Shop at ECS Tuning | |||||
| 08 | Spring | 1 | 51171969235 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Cover, wheel housing, rear left | 1 | 51718192781 | $58.17 | ENDED | Shop at ECS Tuning | ||||
| 09 | Cover, wheel housing, rear right | 1 | 51718192782 | $58.17 | ENDED | Shop at ECS Tuning | ||||
| 10 | Body nut | ST4,8-11-ZN | 4 | 07129904217 | $0.25 | Shop at ECS Tuning | ||||
| 11 | Hex head screw | ST 4,8X18 SW8 | 4 | 07147129161 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Plastic nut for coarse threaded pin | M6 | 4 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 13 | Expanding rivet, black | L=15MM | 6 | 51111944537 | $0.30 | Shop at ECS Tuning | ||||
| For vehicles with Central locking system |
=Yes |
|||||||||
| 14 | Cap | 1 | 51171928699 | $0.62 | Shop at ECS Tuning | |||||
| 15 | Stop buffer | 1 | 51171853772 | $1.52 | Shop at ECS Tuning | |||||
| 16 | Sleeve | 1 | 51258128707 | $2.76 | Shop at ECS Tuning | |||||
| 17 | Filler flap actuator | 1 | 67116987625 | $57.47 | Shop at ECS Tuning | |||||
| 18 | Pulling strip f emergency mechanism | 1 | 51258132168 | $0.97 | Shop at ECS Tuning | |||||
| 19 | Emergency mechanism | 1 | 51258132166 | $0.93 | Shop at ECS Tuning | |||||
| 20 | Torx bolt | ISA M5X10 | 2 | 54128132329 | $0.25 | Shop at ECS Tuning | ||||
| 21 | Torx-bolt for plastic material | ISA TS5X16 | 2 | 07149113701 | $0.38 | Shop at ECS Tuning | ||||
| 22 | Actuator bowden cable | 115MM | 1 | 51258221570 | $8.58 | Shop at ECS Tuning | ||||
| 23 | Actuator holder | 1 | 51258209625 | $2.58 | Shop at ECS Tuning | |||||
| 24 | Fill-in flap bracket | 1 | 41358159079 | $2.95 | Shop at ECS Tuning | |||||
| 25 | Hex nut | AM5-8-ZNS3 | 2 | 07129902975 | $0.36 | Shop at ECS Tuning | ||||
| 26 | Molded part column C, exterior | 2 | 41218216191 | $5.36 | ENDED | Shop at ECS Tuning | ||||
| 27 | Left moulded part f roof frame | 1 | 41218216195 | $7.00 | ENDED | Shop at ECS Tuning | ||||
| 27 | Right moulded part f roof frame | 1 | 41218216196 | $7.00 | ENDED | Shop at ECS Tuning | ||||
| 28 | Molded part column D | 2 | 41218216197 | $12.61 | ENDED | Shop at ECS Tuning | ||||
| 29 | Filler tube gasket | 1 | 51718174883 | $5.71 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO FILLER CAP |
||||||||||
| 30 | Cap | 1 | 51171928699 | $0.62 | Shop at ECS Tuning | |||||
| 31 | Reinforcement, tail trim, right | 1 | 41348232210 | $53.62 | Shop at ECS Tuning | |||||
| 32 | Left rear door sill cover deflector lip | 1 | 51718222167 | $7.77 | Shop at ECS Tuning | |||||
| 32 | Right rear door sill cover deflector lip | 1 | 51718222168 | $7.77 | Shop at ECS Tuning | |||||
| 33 | Expanding rivet | 4 | 51161881149 | $0.20 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
