Single components for trunk lid for BMW 5 Series E39 520i (2003)

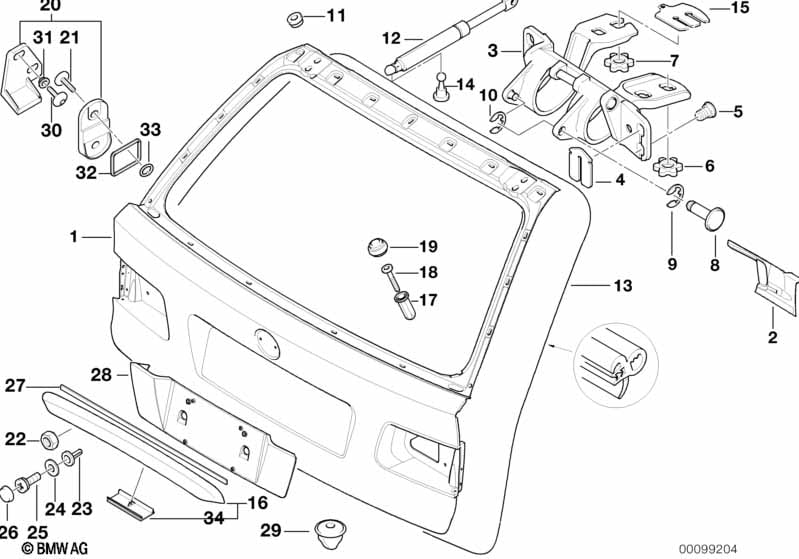

This Single components for trunk lid technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid | 1 | 41627007396 | $673.07 | Shop at ECS Tuning | |||||
| 02 | Left water channel cover | SCHWARZ | 1 | 51718220947 | $4.80 | Shop at ECS Tuning | ||||
| 02 | Right water channel cover | SCHWARZ | 1 | 51718220948 | $4.80 | Shop at ECS Tuning | ||||
| 03 | Left trunk lid hinge | 1 | 41617007403 | $116.74 | Shop at ECS Tuning | |||||
| 03 | Right trunk lid hinge | 1 | 41628227946 | $111.00 | Shop at ECS Tuning | |||||
| 04 | Shim | 1.0MM | X | 41628226060 | $2.00 | Shop at ECS Tuning | ||||
| 05 | Torx-bolt with washer | ISA M8X22 | 8 | 41628199932 | $0.93 | Shop at ECS Tuning | ||||
| 06 | Star-shaped nut | ASA M8 | 4 | 07147203401 | Shop at ECS Tuning | |||||
| 07 | Star-shaped nut | ASA M8 | 4 | 07147203401 | Shop at ECS Tuning | |||||
| 08 | Pin | 2 | 51248205062 | $2.18 | Shop at ECS Tuning | |||||
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 08 | Double pin | 1 | 51247004890 | $18.45 | Shop at ECS Tuning | |||||
| 09 | Circlip | 6,0 | 2 | 07119901421 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Circlip | 6,0 | 2 | 07119901421 | $0.09 | Shop at ECS Tuning | ||||
| 11 | Blind plug | D=6MM | 3 | 51711904603 | $0.32 | Shop at ECS Tuning | ||||
| 12 | Gas pressurized spring | 1600N | 2 | 51248220072 | $67.93 | Shop at ECS Tuning | ||||
| 13 | Trunk lid gasket | 1 | 51718199261 | $57.94 | Shop at ECS Tuning | |||||
| 14 | Ball head bolt | M16X1.5 | 2 | 41328199467 | $8.45 | Shop at ECS Tuning | ||||
| 15 | Shim | 1.0MM | X | 51248219000 | $1.85 | Shop at ECS Tuning | ||||
| 16 | Trunk lid grip with key button | CHROM | 1 | 51137051529 | $62.00 | Shop at ECS Tuning | ||||
| 16 | Trunk lid grip with key button | 1 | 51138185790 | $56.93 | Shop at ECS Tuning | |||||
| 16 | Trunk lid grip with key button, painted | CODE UNI/MET. | 1 | 51139070528 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 17 | Blind rivet nut, flat headed | M6 | 2 | 51248226003 | $2.13 | Shop at ECS Tuning | ||||
| 18 | Torx bolt | M6X26 | 2 | 51247217793 | $1.17 | Shop at ECS Tuning | ||||
| 19 | Stop buffer | 2 | 51248226064 | $2.32 | Shop at ECS Tuning | |||||
| 20 | Stopper left | 1 | 51248229261 | $20.40 | Shop at ECS Tuning | |||||
| 20 | Stopper right | 1 | 51248229262 | $20.40 | Shop at ECS Tuning | |||||
| 21 | Torx bolt | M6X22 | 4 | 07147075867 | $0.65 | Shop at ECS Tuning | ||||
| 22 | Hex nut | AM6-8-ZNNIV SI | 4 | 07129905471 | $0.64 | Shop at ECS Tuning | ||||
| 23 | Plug-in nut | 2 | 51181852299 | $0.23 | Shop at ECS Tuning | |||||
| 23 | Plug-in nut | 2 | 51188242692 | $0.26 | Shop at ECS Tuning | |||||
| 24 | Washer | 4-200 HV-ZNS3 | 2 | 07119904207 | Shop at ECS Tuning | |||||
| 25 | Fillister head self-tapping screw | ST4,8X16MM | 2 | 07143448498 | $0.18 | Shop at ECS Tuning | ||||
| 26 | Covering cap | WEISS | 2 | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 26 | Covering cap | SCHWARZ | 2 | 51181823474 | $0.21 | Shop at ECS Tuning | ||||
| 26 | Covering cap | DUNKELBLAU | 2 | 64111375497 | $0.20 | Shop at ECS Tuning | ||||
| 27 | Gasket, trunk lid grip | 1 | 51138236983 | $4.60 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 28 | Cover, primed | 1 | 51138244885 | $52.83 | Shop at ECS Tuning | |||||
| 29 | Plug | D=8MM | 2 | 51248240884 | $1.03 | Shop at ECS Tuning | ||||
| 30 | Torx bolt | M6X12 | 2 | 07147154224 | $0.32 | Shop at ECS Tuning | ||||
| 31 | Sleeve | 2 | 51248226065 | $2.40 | Shop at ECS Tuning | |||||
| 32 | Gasket | 2 | 51248227681 | $1.84 | Shop at ECS Tuning | |||||
| 33 | O-ring | 6X1,8 | 2 | 07119906348 | $0.16 | Shop at ECS Tuning | ||||
| 34 | Plate | 1 | 51717039261 | $3.85 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
