Front body bracket left for BMW 3 Series E36 318i (1998)

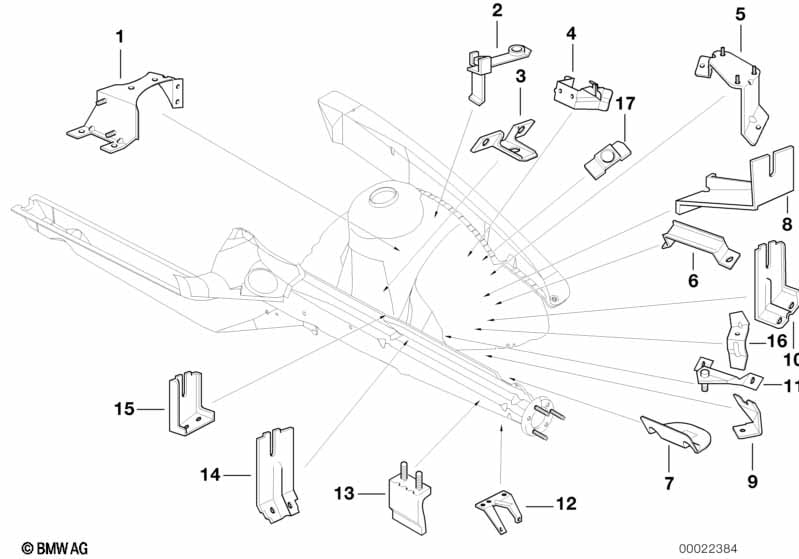

This Front body bracket left technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Bracket, impact sensor, left | 1 | 41148151439 | $4.89 | Shop at ECS Tuning | |||||
| 03 | Brake pipe bracket | 2 | 41148144392 | $1.90 | ENDED | Shop at ECS Tuning | ||||
| 10 | Air cleaner bracket front | 1 | 41148119795 | $3.57 | Shop at ECS Tuning | |||||
| 11 | Bracket horn | 1 | 41118151070 | $5.20 | Shop at ECS Tuning | |||||
| 12 | Bracket, oil carrier | 1 | 04/1995 | 41148122555 | $5.79 | Shop at ECS Tuning | ||||
| 15 | Air cleaner bracket rear | 1 | 41148119796 | $3.15 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318i Front body bracket left?
- This technical diagram illustrates the Front body bracket left within the Bodywork group for the 3 Series E36 318i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Bracket, impact sensor, left (Part #41148151439).
- Which models use the hardware listed in this Front body bracket left?
- The hardware and components featured in the Front body bracket left are specific to the 3 Series E36 318i produced during 1998. These technical specifications ensure that parts like the Bracket, impact sensor, left (41148151439) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front body bracket left assembly?
- Each item in the Front body bracket left corresponds to the numbered list below the illustration. For the 3 Series E36 318i, you can identify the Bracket, impact sensor, left by locating its position on the schematic, which then links to the official BMW part number 41148151439 for the Bodywork section.
