Single components for trunk lid for BMW 7 Series E38 740iL (1996)

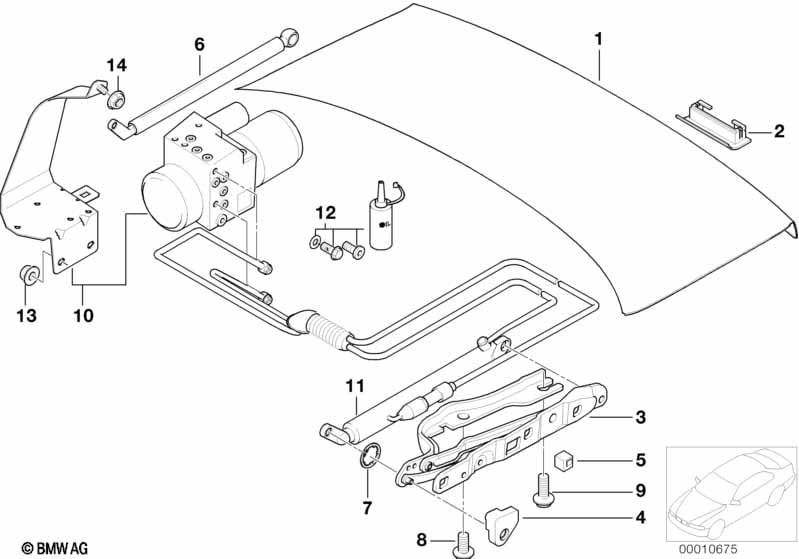

This Single components for trunk lid technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with automatic trunk lid mechanism |
S316A=Yes |
||||||||
| 01 | Trunk lid | 1 | 41628230560 | $762.91 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Sealing film | PUR, D=30MM | 4 | 51711922189 | $0.82 | Shop at ECS Tuning | ||||
| 02 | Switch cover | SCHWARZ | 1 | 51498221022 | $2.22 | Shop at ECS Tuning | ||||
| 03 | Right trunk lid hinge | 1 | 41628221198 | $46.91 | Shop at ECS Tuning | |||||
| 03 | Left trunk lid hinge | 1 | 41628398953 | $46.91 | Shop at ECS Tuning | |||||
| 04 | Stopper left | 1 | 51718186887 | $1.58 | Shop at ECS Tuning | |||||
| 04 | Stopper right | 1 | 51718186888 | $1.58 | Shop at ECS Tuning | |||||
| 05 | Bump stop | 2 | 51238123298 | $3.24 | Shop at ECS Tuning | |||||
| 06 | Gas pressurized spring | 640N | 1 | 51248171480 | $44.37 | Shop at ECS Tuning | ||||
| 07 | Circlip | 6,0 | 3 | 07119901421 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Torx-bolt with washer | 2 | 07149112449 | Shop at ECS Tuning | ||||||
| 09 | Torx-bolt with washer | 6 | 07149112449 | Shop at ECS Tuning | ||||||
| 10 | Hydro unit | 1 | 51248236505 | $1244.83 | ENDED | Shop at ECS Tuning | ||||
| 11 | Hydraulic cylinder | 1 | 51248236506 | $507.10 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hydraulic fluid with set of screws | 1 | 51248236504 | $54.58 | Shop at ECS Tuning | |||||
| CONSISTING OF HOLLOW BOLT SCREW PLUG GASKET small oil bottle |
||||||||||
| 13 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 14 | Hex nut with plate | M6 ZNT | 1 | 07149156628 | $0.25 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
