Front body bracket for BMW 7 Series E23 728iS (1982)

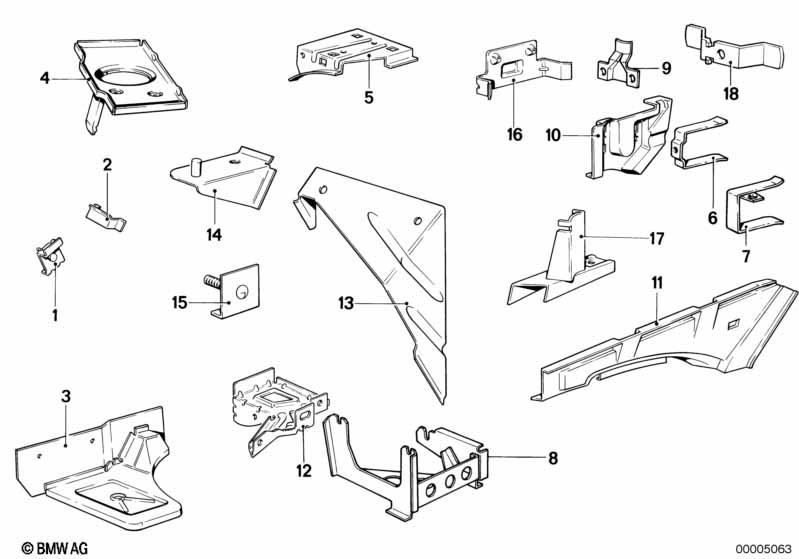

This Front body bracket technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728iS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Support fluid container windshield wash | 1 | 41141858041 | $2.23 | ENDED | Shop at ECS Tuning | ||||
| 03 | Covering panel for engine beam left | 1 | 41111858291 | $32.09 | ENDED | Shop at ECS Tuning | ||||
| 03 | Covering panel for engine beam right | 1 | 41111858292 | $32.09 | ENDED | Shop at ECS Tuning | ||||
| 04 | Battery tray | 1 | 41111858047 | $36.97 | Shop at ECS Tuning | |||||
| 05 | Bracket current distributor | 1 | 09/1982 | 41141858042 | $33.20 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Anti block system (ABS) |
=Yes |
|||||||||
| 06 | Bracket, control unit | 1 | 09/1982 | 41131874663 | $5.02 | ENDED | Shop at ECS Tuning | |||
| 07 | Bracket, control unit | 1 | 09/1982 | 41131874664 | ENDED | Shop at ECS Tuning | ||||
| 08 | Holder | 1 | 41111874665 | $23.72 | ENDED | Shop at ECS Tuning | ||||
| 09 | Holder | 1 | 41131874662 | $2.06 | ENDED | Shop at ECS Tuning | ||||
| 10 | Bracket engine hood lock left | 1 | 41141858277 | $24.33 | ENDED | Shop at ECS Tuning | ||||
| 10 | Bracket engine hood lock right | 1 | 41141858278 | $24.33 | ENDED | Shop at ECS Tuning | ||||
| 11 | Wheel housing strut, front left | 1 | 41111871039 | $35.43 | ENDED | Shop at ECS Tuning | ||||
| 11 | Wheel housing strut, front right | 1 | 41111871040 | $43.66 | ENDED | Shop at ECS Tuning | ||||
| 12 | Connection piece left | 1 | 41141855909 | $5.33 | Shop at ECS Tuning | |||||
| 12 | Connection piece right | 1 | 41141855910 | $8.59 | ENDED | Shop at ECS Tuning | ||||
| 13 | Support air cleaner | 1 | 41141858065 | $12.95 | ENDED | Shop at ECS Tuning | ||||
| 14 | Support air cleaner | 1 | 41141858050 | $8.59 | ENDED | Shop at ECS Tuning | ||||
| 15 | Ignition coil support | 1 | 41141852687 | $4.69 | ENDED | Shop at ECS Tuning | ||||
| 17 | Bracket expansion tank | 1 | 41141860091 | ENDED | Shop at ECS Tuning | |||||
| 18 | Bracket horn | 2 | 41131879515 | $1.54 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
