Front body bracket for BMW 7 Series E23 733i (1979)

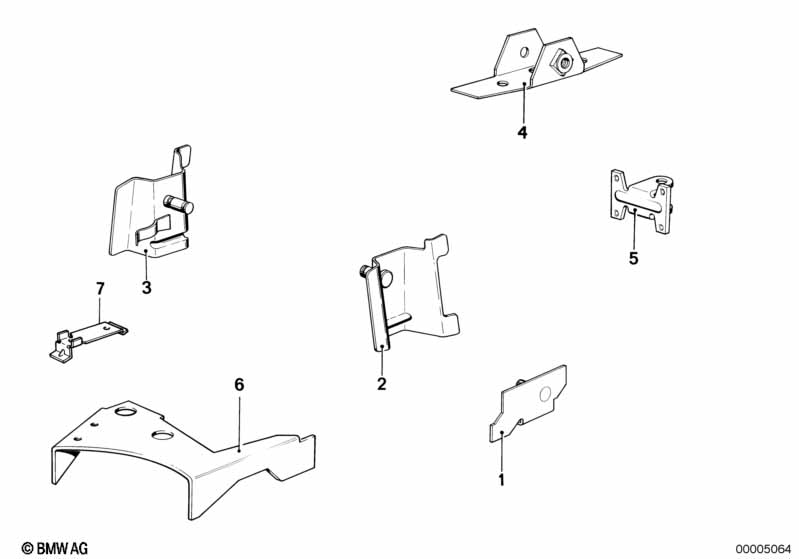

This Front body bracket technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ignition coil support | 1 | 41141870697 | $2.06 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bracket gas press.spring left | 1 | 41141866531 | $8.93 | ENDED | Shop at ECS Tuning | ||||
| 03 | Bracket gas press.spring right | 1 | 41141866532 | $8.93 | ENDED | Shop at ECS Tuning | ||||
| 04 | Support bumper bracket left | 1 | 41111866959 | $7.71 | ENDED | Shop at ECS Tuning | ||||
| 04 | Support bumper bracket right | 1 | 41111866960 | $7.71 | ENDED | Shop at ECS Tuning | ||||
| 05 | Braket door brake | 4 | 41211866878 | $7.56 | Shop at ECS Tuning | |||||
| 06 | Bracket regulator pressure accumulator | 1 | 41141864508 | $6.33 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 733i Front body bracket?
- This technical diagram illustrates the Front body bracket within the Bodywork group for the 7 Series E23 733i produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Ignition coil support (Part #41141870697).
- Which models use the hardware listed in this Front body bracket?
- The hardware and components featured in the Front body bracket are specific to the 7 Series E23 733i produced during 1979. These technical specifications ensure that parts like the Ignition coil support (41141870697) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front body bracket assembly?
- Each item in the Front body bracket corresponds to the numbered list below the illustration. For the 7 Series E23 733i, you can identify the Ignition coil support by locating its position on the schematic, which then links to the official BMW part number 41141870697 for the Bodywork section.
