Front panel for BMW 5 Series E12 530i (1977)
This Front panel technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front apron lower part | 1 | 09/1976 | 41331925008 | $324.64 | ENDED | Shop at ECS Tuning | |||
| 02 | Front apron upper part | 1 | 09/1976 | 41331848364 | $344.84 | ENDED | Shop at ECS Tuning | |||
| 03 | Connection plate | 1 | 09/1976 | 41131848244 | $112.72 | ENDED | Shop at ECS Tuning | |||
| 04 | Front panel with cross member | 1 | 09/1976 | 41131858928 | $420.73 | ENDED | Shop at ECS Tuning | |||
| 05 | Front panel | 1 | 09/1976 | 41331848182 | $318.38 | ENDED | Shop at ECS Tuning | |||
| 06 | Body nut | ST4,8-13-ZNS3 | X | 09/1976 | 07129904223 | $0.11 | Shop at ECS Tuning | |||
| 07 | Hex head screw | ST4,8X13-ZN3 | X | 09/1976 | 07119904285 | $0.38 | Shop at ECS Tuning | |||
| 08 | Zinc foil | 6 | 09/1976 | 41331885099 | $1.13 | Shop at ECS Tuning | ||||
| 09 | Air channel left | 1 | 09/1976 | 51711822439 | $27.85 | Shop at ECS Tuning | ||||
| 09 | Air channel right | 1 | 09/1976 | 51711822440 | $27.85 | ENDED | Shop at ECS Tuning | |||
| 10 | Fillister head self-tapping screw | ST4,2X16-Z2 | 8 | 09/1976 | 07119907948 | $0.18 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 530i Front panel?

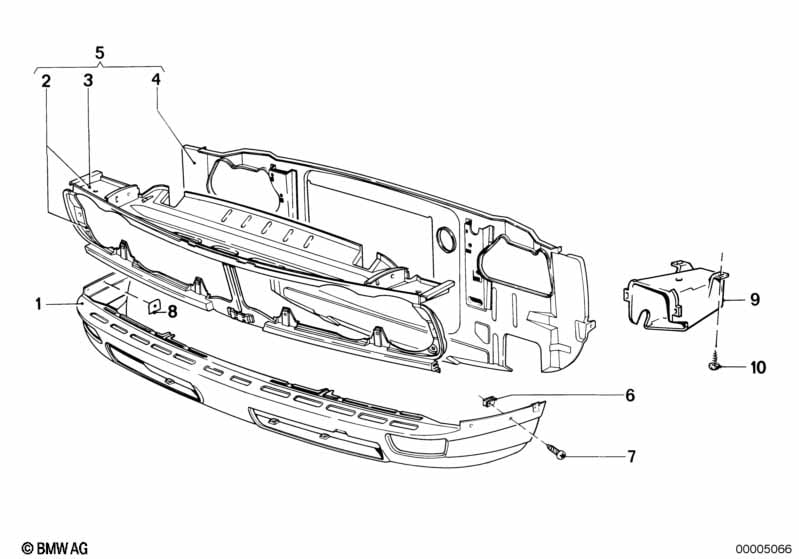

- This technical diagram illustrates the Front panel within the Bodywork group for the 5 Series E12 530i produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Front apron lower part (Part #41331925008).
- Which models use the hardware listed in this Front panel?
- The hardware and components featured in the Front panel are specific to the 5 Series E12 530i produced during 1977. These technical specifications ensure that parts like the Front apron lower part (41331925008) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front panel assembly?
- Each item in the Front panel corresponds to the numbered list below the illustration. For the 5 Series E12 530i, you can identify the Front apron lower part by locating its position on the schematic, which then links to the official BMW part number 41331925008 for the Bodywork section.
