Front panel for BMW 3 Series E21 323i (1979)

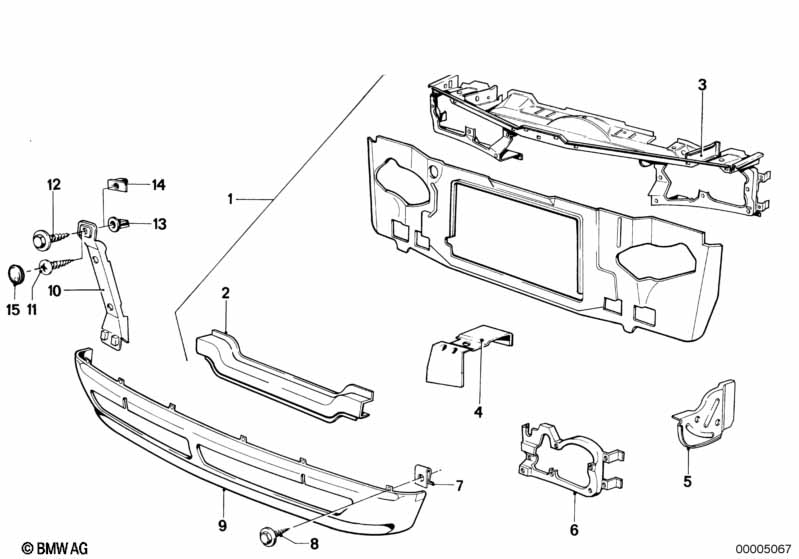

This Front panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front panel | BASIS | 1 | 08/1979 | 41131855939 | $399.53 | ENDED | Shop at ECS Tuning | ||
| 02 | Cross member front | 1 | 08/1979 | 41111862469 | $80.35 | ENDED | Shop at ECS Tuning | |||
| 03 | Connection plate | 1 | 08/1979 | 41131856191 | $137.27 | ENDED | Shop at ECS Tuning | |||
| 04 | Bracket additional fan left | 1 | 08/1979 | 41111855897 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bracket additional fan right | 1 | 08/1979 | 41111855898 | ENDED | Shop at ECS Tuning | ||||
| 05 | Support left | 1 | 08/1979 | 41131846613 | $5.09 | ENDED | Shop at ECS Tuning | |||
| 05 | Support right | 1 | 08/1979 | 41131846614 | $5.09 | Shop at ECS Tuning | ||||
| 06 | Frame headlight left | 1 | 08/1979 | 41131846615 | $31.26 | ENDED | Shop at ECS Tuning | |||
| 06 | Frame headlight right | 1 | 08/1979 | 41131864396 | $31.26 | ENDED | Shop at ECS Tuning | |||
| 07 | Body nut | ST4,8-13-ZNS3 | 8 | 08/1979 | 07129904223 | $0.11 | Shop at ECS Tuning | |||
| 08 | Hex head screw | ST4,8X13-ZN3 | 8 | 08/1979 | 07119904285 | $0.38 | Shop at ECS Tuning | |||
| 09 | Front panel | 1 | 08/1979 | 41331846694 | $255.52 | ENDED | Shop at ECS Tuning | |||
| 10 | Support front apron | 1 | 08/1979 | 41331872895 | $17.17 | ENDED | Shop at ECS Tuning | |||
| 12 | Hex head screw | ST4,8X13-ZN3 | 1 | 08/1979 | 07119904285 | $0.38 | Shop at ECS Tuning | |||
| 14 | Prestol-cage | ST4,8 | 1 | 08/1979 | 07129925765 | $0.18 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 323i Front panel?
- This technical diagram illustrates the Front panel within the Bodywork group for the 3 Series E21 323i produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Front panel (Part #41131855939).
- Which models use the hardware listed in this Front panel?
- The hardware and components featured in the Front panel are specific to the 3 Series E21 323i produced during 1979. These technical specifications ensure that parts like the Front panel (41131855939) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front panel assembly?
- Each item in the Front panel corresponds to the numbered list below the illustration. For the 3 Series E21 323i, you can identify the Front panel by locating its position on the schematic, which then links to the official BMW part number 41131855939 for the Bodywork section.
