Front panel for BMW 3 Series E21 318i (1982)

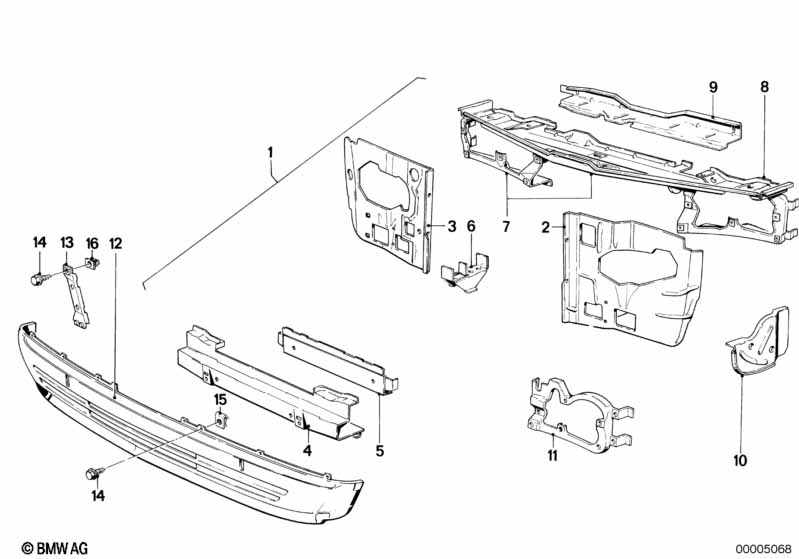

This Front panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front panel | 1 | 08/1979 | 41131872079 | $393.95 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Air guide | 1 | 08/1979 | 41131872089 | $13.17 | Shop at ECS Tuning | ||||
| -- | Holder | 2 | 08/1979 | 41111872083 | $5.64 | Shop at ECS Tuning | ||||
| 02 | Front panel left | 1 | 08/1979 | 41131872085 | $64.73 | ENDED | Shop at ECS Tuning | |||
| 03 | Front panel right | 1 | 08/1979 | 41131872086 | $68.30 | ENDED | Shop at ECS Tuning | |||
| 04 | Cross member front | 1 | 08/1979 | 41111865653 | $94.58 | ENDED | Shop at ECS Tuning | |||
| 05 | Covering plate | 1 | 08/1979 | 41111872087 | $29.85 | ENDED | Shop at ECS Tuning | |||
| 06 | Holder | 2 | 08/1979 | 41111872083 | $5.64 | Shop at ECS Tuning | ||||
| 07 | Connection plate | 1 | 08/1979 | 41131872080 | $147.80 | ENDED | Shop at ECS Tuning | |||
| 08 | Connection plate | 1 | 08/1979 | 41131872084 | $59.10 | ENDED | Shop at ECS Tuning | |||
| 09 | Air guide | 1 | 08/1979 | 41131872089 | $13.17 | Shop at ECS Tuning | ||||
| 10 | Support left | 1 | 08/1979 | 41131846613 | $5.09 | ENDED | Shop at ECS Tuning | |||
| 10 | Support right | 1 | 08/1979 | 41131846614 | $5.09 | Shop at ECS Tuning | ||||
| 11 | Frame headlight left | 1 | 08/1979 | 41131846615 | $31.26 | ENDED | Shop at ECS Tuning | |||
| 11 | Frame headlight right | 1 | 08/1979 | 41131864396 | $31.26 | ENDED | Shop at ECS Tuning | |||
| 12 | Front panel | 1 | 08/1979 | 41331871987 | $281.82 | ENDED | Shop at ECS Tuning | |||
| 13 | Support front apron | 1 | 08/1979 | 41331872895 | $17.17 | ENDED | Shop at ECS Tuning | |||
| 14 | Hex head screw | ST4,8X13-ZN3 | 1 | 08/1979 | 07119904285 | $0.38 | Shop at ECS Tuning | |||
| 15 | Body nut | ST4,8-13-ZNS3 | 6 | 08/1979 | 07129904223 | $0.11 | Shop at ECS Tuning | |||
| 16 | Prestol-cage | ST4,8 | 1 | 08/1979 | 07129925765 | $0.18 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
