Wheelhouse/engine support for BMW 7 Series E23 733i (1981)

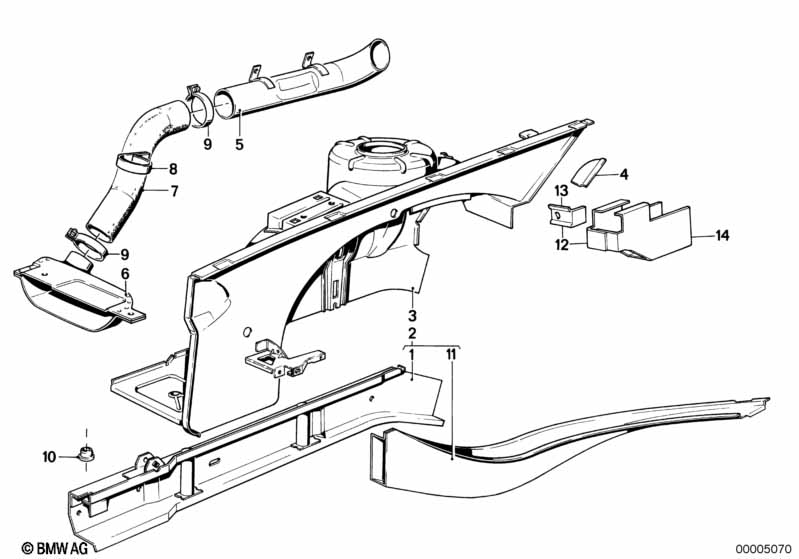

This Wheelhouse/engine support technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine support, left | 1 | 41111860639 | $212.61 | Shop at ECS Tuning | |||||
| 01 | Engine support right | 1 | 41111860640 | $199.76 | ENDED | Shop at ECS Tuning | ||||
| 02 | Engine support, left | 1 | 41111860297 | $305.78 | ENDED | Shop at ECS Tuning | ||||
| 02 | Engine support right | 1 | 41111860298 | $305.78 | ENDED | Shop at ECS Tuning | ||||
| 03 | Front left wheelhouse | BASIS | 1 | 41141858897 | $747.72 | Shop at ECS Tuning | ||||
| 03 | Wheelhousing, front right | BASIS | 1 | 41141858898 | $747.72 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Support air cleaner | 1 | 41141858050 | $8.59 | ENDED | Shop at ECS Tuning | ||||
| -- | Support air cleaner | 1 | 41141858065 | $12.95 | ENDED | Shop at ECS Tuning | ||||
| 04 | Covering plate left | 1 | 41141868717 | $4.18 | ENDED | Shop at ECS Tuning | ||||
| 04 | Covering plate right | 1 | 41141868718 | $4.18 | ENDED | Shop at ECS Tuning | ||||
| 10 | Blind plug | D=20MM | 1 | 51711801066 | $0.23 | Shop at ECS Tuning | ||||
| 11 | Engine support, left | 1 | 41111910323 | $122.76 | ENDED | Shop at ECS Tuning | ||||
| 11 | Engine support right | 1 | 41111910324 | ENDED | Shop at ECS Tuning | |||||
| 12 | Extension | 1 | 41111870712 | $17.52 | ENDED | Shop at ECS Tuning | ||||
| 13 | Holder | 2 | 41111870077 | $6.58 | ENDED | Shop at ECS Tuning | ||||
| 14 | Extension | 2 | 41111870712 | $17.52 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 733i Wheelhouse/engine support?
- This technical diagram illustrates the Wheelhouse/engine support within the Bodywork group for the 7 Series E23 733i produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Engine support, left (Part #41111860639).
- Which models use the hardware listed in this Wheelhouse/engine support?
- The hardware and components featured in the Wheelhouse/engine support are specific to the 7 Series E23 733i produced during 1981. These technical specifications ensure that parts like the Engine support, left (41111860639) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Wheelhouse/engine support assembly?
- Each item in the Wheelhouse/engine support corresponds to the numbered list below the illustration. For the 7 Series E23 733i, you can identify the Engine support, left by locating its position on the schematic, which then links to the official BMW part number 41111860639 for the Bodywork section.
