Front body parts for BMW 5 Series E12 530i (1978)

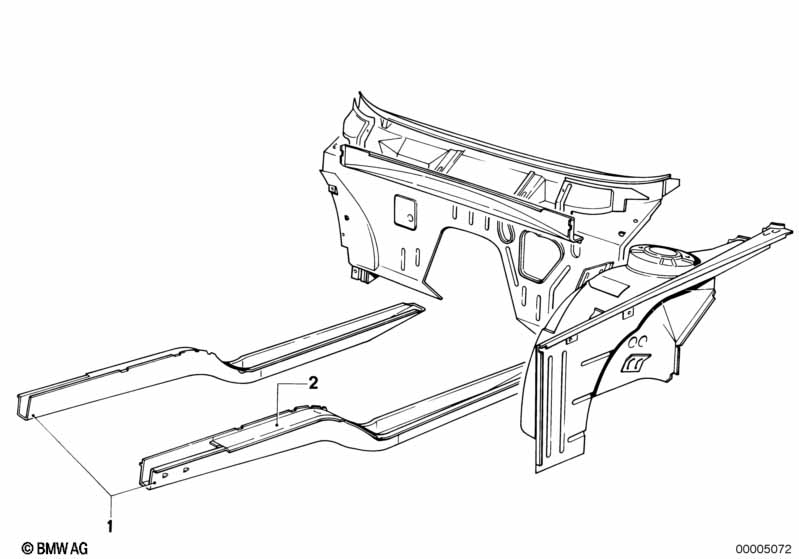

This Front body parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine support without cover plate left | 1 | 41111847719 | $275.65 | ENDED | Shop at ECS Tuning | ||||
| 01 | Engine support without cover plate right | 1 | 41111847720 | $275.65 | ENDED | Shop at ECS Tuning | ||||
| 02 | Covering panel for engine beam left | 1 | 41111847717 | $8.45 | ENDED | Shop at ECS Tuning | ||||
| 02 | Covering panel for engine beam right | 1 | 41111847718 | $18.64 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
