Front body parts for BMW 3 Series E30 320i (1990)

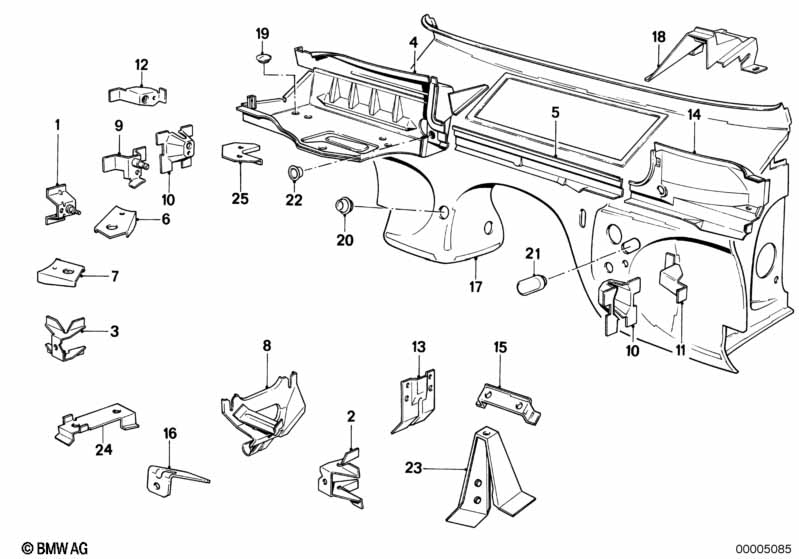

This Front body parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Support engine hood stay | 1 | 41141884279 | $9.30 | Shop at ECS Tuning | |||||
| 02 | Bracket headlight left | 1 | 41141884469 | $4.98 | Shop at ECS Tuning | |||||
| 03 | Bracket headlight right | 1 | 41141884470 | $4.98 | Shop at ECS Tuning | |||||
| 04 | Battery tray | 1 | 41111929429 | $86.67 | ENDED | Shop at ECS Tuning | ||||
| 05 | Heater closing panel | 1 | 41131906531 | $16.31 | ENDED | Shop at ECS Tuning | ||||
| 06 | Cooling water compensation tank bracket | 1 | 41141911117 | $3.92 | ENDED | Shop at ECS Tuning | ||||
| 07 | Cooling water compensation tank bracket | 1 | 41141911118 | $3.92 | Shop at ECS Tuning | |||||
| 08 | Support air cleaner | 1 | 41141913049 | $36.40 | ENDED | Shop at ECS Tuning | ||||
| 09 | Supporting bracket | 1 | 41141906278 | $10.45 | Shop at ECS Tuning | |||||
| 10 | Bracket front | 1 | 41141904779 | $11.16 | ENDED | Shop at ECS Tuning | ||||
| 11 | Bracket left | 1 | 41141888005 | $12.72 | Shop at ECS Tuning | |||||
| 12 | Bracket right | 1 | 41141888006 | $12.72 | ENDED | Shop at ECS Tuning | ||||
| 13 | Bracket, control unit | 1 | 41141904837 | $6.02 | ENDED | Shop at ECS Tuning | ||||
| 14 | Heater closing panel | 1 | 09/1986 | 41131955930 | $21.80 | ENDED | Shop at ECS Tuning | |||
| 15 | Support fluid container windshield wash | 1 | 41141871979 | $4.42 | ENDED | Shop at ECS Tuning | ||||
| 17 | Splash wall | BASIS | 1 | 41131937967 | $522.29 | ENDED | Shop at ECS Tuning | |||
| 18 | Support | 1 | 41241936211 | $23.25 | Shop at ECS Tuning | |||||
| 19 | Blind plug | D=6.9MM | X | 51711911299 | $0.23 | ENDED | Shop at ECS Tuning | |||
| 20 | Blind plug | D=35MM | 2 | 07147140849 | $0.73 | Shop at ECS Tuning | ||||
| 21 | Blind plug | 30X36MM | 2 | 51711872829 | $0.89 | Shop at ECS Tuning | ||||
| 22 | Blind plug | D=52MM | 1 | 51711972464 | $9.21 | Shop at ECS Tuning | ||||
| 24 | Bracket f.sensor | 1 | 41141936985 | $8.26 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
