Wheelhouse/engine support for BMW 3 Series E30 320i (1992)
This Wheelhouse/engine support technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| FOR VEHICLES WITH AND WITHOUT AIR CONDITIONING SYSTEM |
||||||||||
| 01 | Front panel | BASIS | 1 | 10/1990 | 41131971102 | $266.23 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Bracket | 1 | 10/1990 | 17101177917 | $49.26 | Shop at ECS Tuning | ||||
| -- | Hex nut with plate | M6 | 2 | 10/1990 | 07147134319 | $1.05 | Shop at ECS Tuning | |||
| -- | Hex bolt with washer | M6X16-U2-ZNS3 | 2 | 10/1990 | 07119902913 | Shop at ECS Tuning | ||||
| 02 | Front left wheelhouse | BASIS | 1 | 41141942997 | $473.14 | ENDED | Shop at ECS Tuning | |||
| 02 | Wheelhousing, front right | BASIS | 1 | 41141942998 | $473.14 | ENDED | Shop at ECS Tuning | |||
| 03 | Wheel housing strut, front left | 1 | 41111923977 | $65.48 | ENDED | Shop at ECS Tuning | ||||
| 03 | Wheel housing strut, front right | 1 | 41111923978 | $65.48 | ENDED | Shop at ECS Tuning | ||||
| 05 | Section of left engine support | 1 | 41111965065 | $110.51 | ENDED | Shop at ECS Tuning | ||||
| 05 | Section of right engine support | 1 | 41111965066 | $110.51 | ENDED | Shop at ECS Tuning | ||||
| 06 | Engine support, left | 1 | 41111965073 | $405.11 | ENDED | Shop at ECS Tuning | ||||
| 06 | Engine support right | 1 | 41111965074 | $405.11 | ENDED | Shop at ECS Tuning | ||||
| 07 | Covering plate left | 1 | 41111966553 | $29.22 | Shop at ECS Tuning | |||||
| 07 | Covering plate right | 1 | 41111966554 | $29.57 | Shop at ECS Tuning | |||||
| 08 | Covering plate left | 1 | 41111913847 | $6.01 | ENDED | Shop at ECS Tuning | ||||
| 08 | Covering plate right | 1 | 41111913848 | $7.48 | ENDED | Shop at ECS Tuning | ||||
| 10 | Locker plate left | 1 | 41111911147 | $15.24 | ENDED | Shop at ECS Tuning | ||||
| 10 | Locker plate right | 1 | 41111911148 | $15.02 | ENDED | Shop at ECS Tuning | ||||
| 11 | Engine support, left | 1 | 41111965073 | $405.11 | ENDED | Shop at ECS Tuning | ||||
| 11 | Engine support right | 1 | 41111965074 | $405.11 | ENDED | Shop at ECS Tuning | ||||
| 12 | Support right | 1 | 41111965060 | $21.02 | ENDED | Shop at ECS Tuning | ||||
| 12 | Support left | 1 | 41111965061 | $21.02 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i Wheelhouse/engine support?

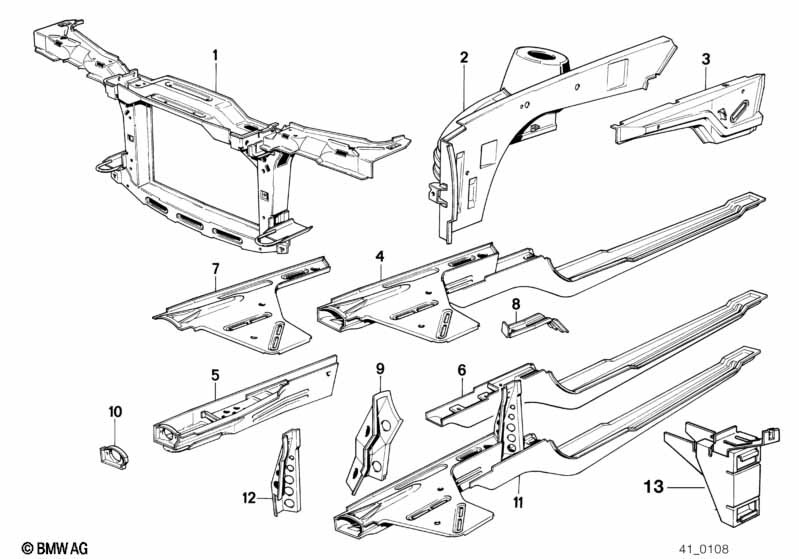

- This technical diagram illustrates the Wheelhouse/engine support within the Bodywork group for the 3 Series E30 320i produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Front panel (Part #41131971102).
- Which models use the hardware listed in this Wheelhouse/engine support?
- The hardware and components featured in the Wheelhouse/engine support are specific to the 3 Series E30 320i produced during 1992. These technical specifications ensure that parts like the Front panel (41131971102) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Wheelhouse/engine support assembly?
- Each item in the Wheelhouse/engine support corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Front panel by locating its position on the schematic, which then links to the official BMW part number 41131971102 for the Bodywork section.
