Front body parts for BMW 3 Series E30 325i (1990)

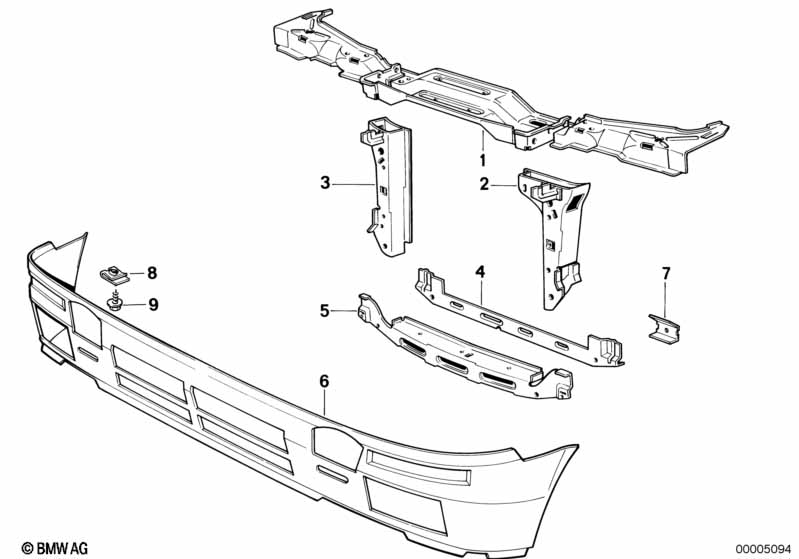

This Front body parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carrier | 1 | 41111916994 | $141.98 | Shop at ECS Tuning | |||||
| 02 | Support left | 1 | 41131911155 | $22.62 | Shop at ECS Tuning | |||||
| 03 | Support right | 1 | 41131911156 | $22.62 | Shop at ECS Tuning | |||||
| 04 | Covering plate | 1 | 41111884230 | $27.88 | ENDED | Shop at ECS Tuning | ||||
| 05 | Cross member front | 1 | 41111911122 | $81.00 | Shop at ECS Tuning | |||||
| 06 | Front panel | 1 | 41331961225 | $268.17 | Shop at ECS Tuning | |||||
| For vehicles with Air conditioning and Tropical version |
=Yes =Yes |
|||||||||
| 06 | Front panel | 1 | 41331961227 | $267.32 | ENDED | Shop at ECS Tuning | ||||
| 07 | Support | 2 | 41111906345 | $3.32 | Shop at ECS Tuning | |||||
| 08 | Body nut | ST4,8 | X | 41331979984 | $0.20 | ENDED | Shop at ECS Tuning | |||
| 09 | Hex head screw | ST4,8X13-ZN3 | X | 07119904285 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Hex head screw | ST4,8X19-C-Z2 | X | 07119916949 | $0.25 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
