Wheelhouse/engine support for BMW 7 Series E32 730iL (1994)

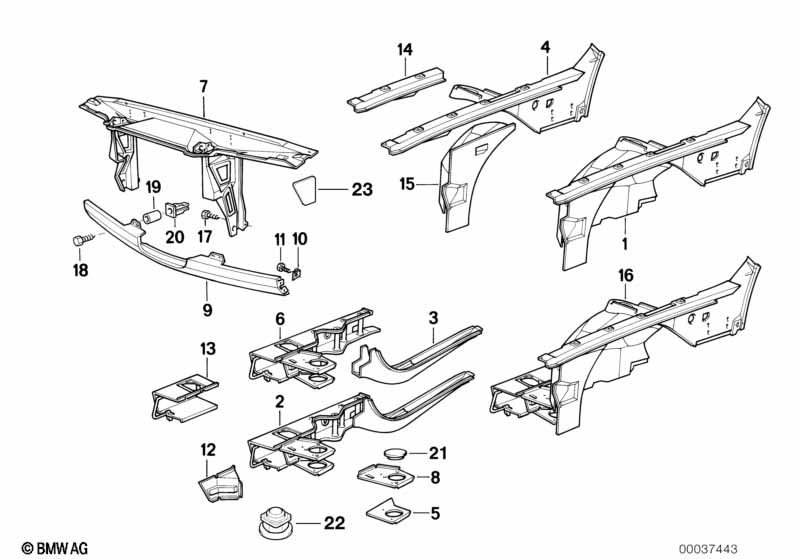

This Wheelhouse/engine support technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front left wheelhouse | BASIS | 1 | 41141954773 | $758.88 | ENDED | Shop at ECS Tuning | |||
| 01 | Wheelhousing, front right | BASIS | 1 | 41141954774 | $758.88 | ENDED | Shop at ECS Tuning | |||
| 02 | Front right engine support | 1 | 41111978176 | $286.84 | ENDED | Shop at ECS Tuning | ||||
| 02 | Front left engine support | 1 | 41118145471 | $286.84 | Shop at ECS Tuning | |||||
| 03 | Carrier | 2 | 41111958035 | $123.88 | Shop at ECS Tuning | |||||
| 04 | Wheel housing strut, front left | 1 | 41111954775 | $289.27 | ENDED | Shop at ECS Tuning | ||||
| 04 | Wheel housing strut, front right | 1 | 41111954776 | $289.27 | ENDED | Shop at ECS Tuning | ||||
| 06 | Front right engine support | 1 | 41111978176 | $286.84 | ENDED | Shop at ECS Tuning | ||||
| 06 | Front left engine support | 1 | 41118145471 | $286.84 | Shop at ECS Tuning | |||||
| 07 | Front panel | BASIS | 1 | 41138102282 | $345.25 | Shop at ECS Tuning | ||||
| 08 | Covering panel for engine beam left | 1 | 12/1986 | 41111964253 | $21.00 | Shop at ECS Tuning | ||||
| 08 | Covering panel for engine beam right | 1 | 12/1986 | 41111964254 | $21.00 | Shop at ECS Tuning | ||||
| 09 | Front panel | 1 | 41331908961 | $112.05 | ENDED | Shop at ECS Tuning | ||||
| 10 | Plug-in nut | M5 | 6 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 11 | Hex head screw | ST4,8X13-ZN3 | 6 | 07119904285 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Air intake tube left | 1 | 12/1986 | 41111964251 | $7.58 | Shop at ECS Tuning | ||||
| 12 | Air intake tube right | 1 | 12/1986 | 41111964252 | $7.58 | Shop at ECS Tuning | ||||
| 13 | Section of left engine support | 1 | 41111978187 | $137.56 | Shop at ECS Tuning | |||||
| 13 | Section of right engine support | 1 | 41111978188 | $137.56 | Shop at ECS Tuning | |||||
| 14 | Wheel housing strut, front left | 1 | 41111954777 | $90.92 | ENDED | Shop at ECS Tuning | ||||
| 14 | Wheel housing strut, front right | 1 | 41111954778 | $90.92 | ENDED | Shop at ECS Tuning | ||||
| 15 | Front left wheelhouse | 1 | 41141954779 | $246.64 | ENDED | Shop at ECS Tuning | ||||
| 15 | Wheelhousing, front right | 1 | 41141954780 | $246.64 | Shop at ECS Tuning | |||||
| 16 | Front left wheelhouse | BASIS | 1 | 41141954781 | $929.07 | ENDED | Shop at ECS Tuning | |||
| 16 | Wheelhousing, front right | BASIS | 1 | 41141954782 | $929.07 | ENDED | Shop at ECS Tuning | |||
| 17 | Hex head screw | ST6,3X19-C-Z2 | 6 | 07119916967 | $0.29 | Shop at ECS Tuning | ||||
| 18 | Hex head screw | ST4,8X30-C-Z2 | 2 | 07119900409 | $0.47 | Shop at ECS Tuning | ||||
| 19 | Spacer bush | 2 | 61131379129 | $1.08 | Shop at ECS Tuning | |||||
| 20 | Expanding nut | ST 4.8 WEISS | 2 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
=No |
|||||||||
| 21 | Cover lid | D=105MM | 1 | 51711946184 | $1.77 | ENDED | Shop at ECS Tuning | |||
| 22 | Earth pin | M8X12 | X | 07147182215 | Shop at ECS Tuning | |||||
| 22 | Earth pin | M6X12 | X | 41248185432 | Shop at ECS Tuning | |||||
| 23 | Covering left | 1 | 51718147609 | $3.07 | ENDED | Shop at ECS Tuning | ||||
| 23 | Covering right | 1 | 51718147644 | $4.85 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
