Splash wall parts for BMW 5 Series E34 525tds (1996)

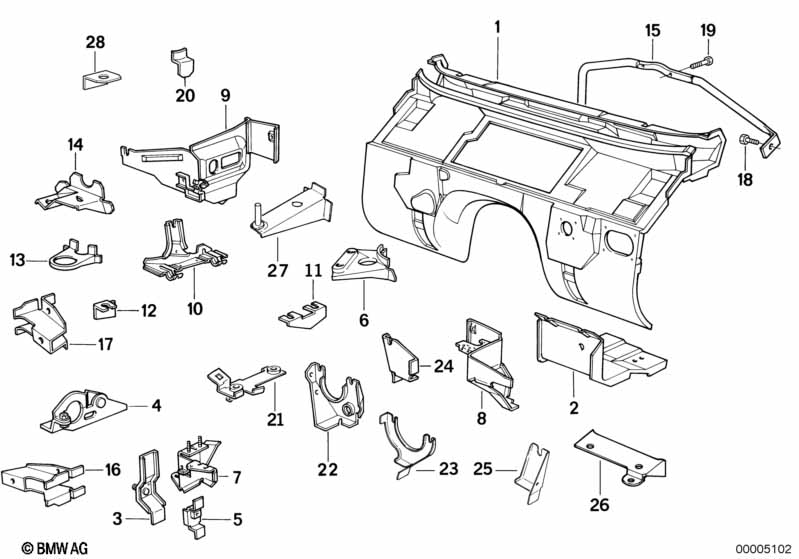

This Splash wall parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Splash wall | BASIS | 1 | 41138148966 | ENDED | Shop at ECS Tuning | ||||
| 02 | Reinforcement left | 1 | 41118152507 | $26.33 | ENDED | Shop at ECS Tuning | ||||
| 02 | Reinforcement right | 1 | 41118152508 | $26.33 | ENDED | Shop at ECS Tuning | ||||
| 03 | Support engine hood stay | 2 | 41111928565 | $7.20 | Shop at ECS Tuning | |||||
| 04 | Support joint assy engine hood left | 1 | 41131928567 | $7.98 | ENDED | Shop at ECS Tuning | ||||
| 04 | Support joint assy engine hood right | 1 | 41131928568 | $7.98 | ENDED | Shop at ECS Tuning | ||||
| 05 | Bracket earth cable | 1 | 41111911957 | $1.80 | Shop at ECS Tuning | |||||
| 06 | Bracket, pressure reservoir controller | 1 | 41141958037 | $5.86 | Shop at ECS Tuning | |||||
| 08 | Partition left | 1 | 41131954671 | $35.54 | ENDED | Shop at ECS Tuning | ||||
| 09 | Partition right | 1 | 09/1992 | 41138116318 | $35.54 | Shop at ECS Tuning | ||||
| 11 | Bracket ABS-trigger contact | 1 | 41141948891 | $3.33 | Shop at ECS Tuning | |||||
| 12 | Bracket ABS-trigger contact | 1 | 41141948892 | $3.23 | Shop at ECS Tuning | |||||
| 13 | Diagnosis plug bracket | 1 | 41141958036 | $3.08 | ENDED | Shop at ECS Tuning | ||||
| 14 | Bracket head light aim control | 1 | 41141957180 | $4.70 | ENDED | Shop at ECS Tuning | ||||
| 15 | Supporting tube | 1 | 51718241252 | ENDED | Shop at ECS Tuning | |||||
| 16 | Bracket headlight | 1 | 41141978179 | $5.25 | Shop at ECS Tuning | |||||
| 17 | Bracket headlight | 1 | 41141978180 | $5.03 | Shop at ECS Tuning | |||||
| 18 | Hex bolt | M8X16U2-8.8ZNS3 | 2 | 07119904279 | Shop at ECS Tuning | |||||
| 19 | Hex bolt with washer | M8X35-Z3 | 2 | 07119912492 | $0.33 | Shop at ECS Tuning | ||||
| 20 | Bracket head light aim control | 1 | 41141958389 | $0.98 | ENDED | Shop at ECS Tuning | ||||
| 21 | Bracket, impact sensor, left | 1 | 41148113965 | $11.73 | Shop at ECS Tuning | |||||
| 21 | Bracket, impact sensor, right | 1 | 41148113966 | $10.04 | ENDED | Shop at ECS Tuning | ||||
| 23 | Bracket f upper hydr.unit asg | 1 | 09/1993 | 41148168098 | $6.28 | Shop at ECS Tuning | ||||
| 25 | Bracket f lower hydr.unit ABS/ASC+T | 1 | 09/1993 | 41118172265 | $6.23 | Shop at ECS Tuning | ||||
| 28 | Hose bracket/levelling device | 1 | 32411141734 | $38.22 | Shop at ECS Tuning |
