Front body bracket for BMW 5 Series E34 530i (1995)

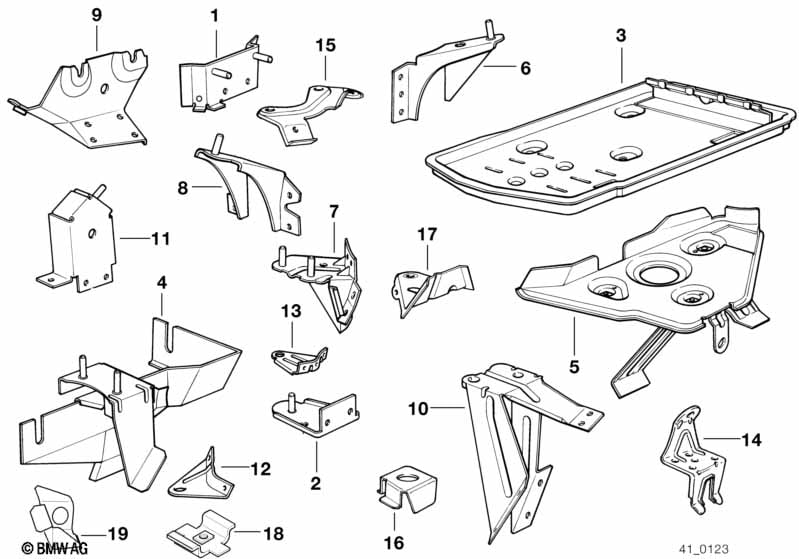

This Front body bracket technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ignition coil support | 1 | 41141978992 | $5.95 | Shop at ECS Tuning | |||||
| 02 | Support air cleaner | 1 | 51718181540 | $6.39 | Shop at ECS Tuning | |||||
| 19 | Left horn bracket | 1 | 41141978189 | ENDED | Shop at ECS Tuning | |||||
| 19 | Right horn bracket | 1 | 41141978190 | $3.46 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 530i Front body bracket?
- This technical diagram illustrates the Front body bracket within the Bodywork group for the 5 Series E34 530i produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Ignition coil support (Part #41141978992).
- Which models use the hardware listed in this Front body bracket?
- The hardware and components featured in the Front body bracket are specific to the 5 Series E34 530i produced during 1995. These technical specifications ensure that parts like the Ignition coil support (41141978992) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front body bracket assembly?
- Each item in the Front body bracket corresponds to the numbered list below the illustration. For the 5 Series E34 530i, you can identify the Ignition coil support by locating its position on the schematic, which then links to the official BMW part number 41141978992 for the Bodywork section.
