Front body bracket for BMW 5 Series E34 525tds (1996)

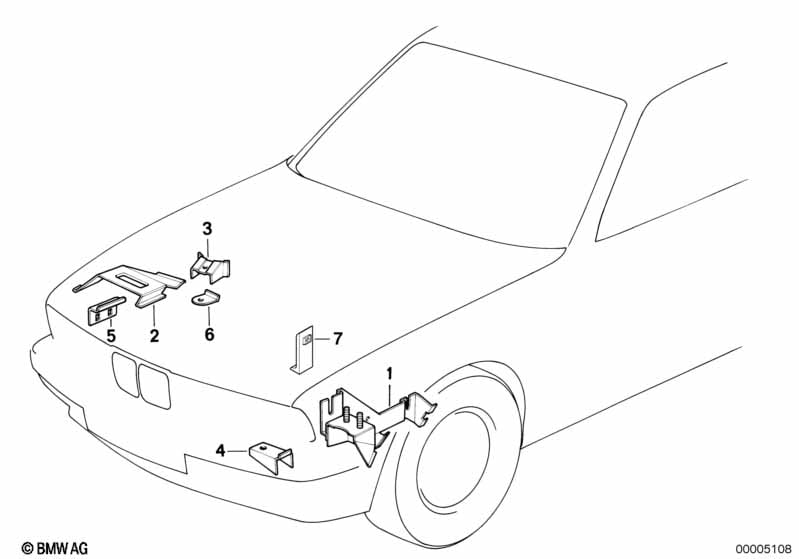

This Front body bracket technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Bracket condenser | 2 | 41118137331 | $4.41 | Shop at ECS Tuning | |||||
| 07 | Bracket oil pipe | 1 | 41118117661 | $0.95 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525tds Front body bracket?
- This technical diagram illustrates the Front body bracket within the Bodywork group for the 5 Series E34 525tds produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Bracket condenser (Part #41118137331).
- Which models use the hardware listed in this Front body bracket?
- The hardware and components featured in the Front body bracket are specific to the 5 Series E34 525tds produced during 1996. These technical specifications ensure that parts like the Bracket condenser (41118137331) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front body bracket assembly?
- Each item in the Front body bracket corresponds to the numbered list below the illustration. For the 5 Series E34 525tds, you can identify the Bracket condenser by locating its position on the schematic, which then links to the official BMW part number 41118137331 for the Bodywork section.
