Front body bracket for BMW 5 Series E34 520i (1993)

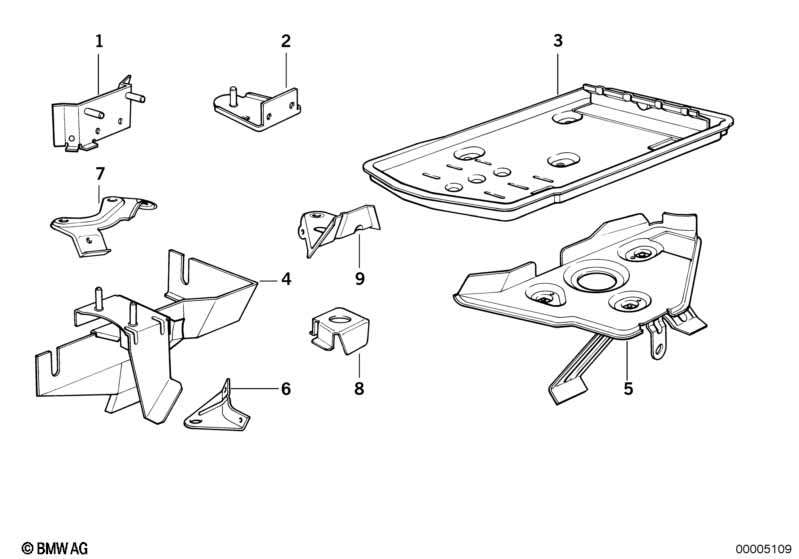

This Front body bracket technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ignition coil support | 1 | 41141978992 | $5.95 | Shop at ECS Tuning | |||||
| 02 | Support air cleaner | 1 | 51718181540 | $6.39 | Shop at ECS Tuning | |||||
| 03 | Battery tray | 1 | 51711946178 | $29.72 | Shop at ECS Tuning | |||||
| 04 | Bracket f oil carrier/suction silencer | 1 | 41148117990 | $29.81 | Shop at ECS Tuning | |||||
| 05 | Support battery carrier | 1 | 41141978993 | $12.78 | Shop at ECS Tuning | |||||
| 06 | Bracket, oil carrier, levelling device | 1 | 41148181869 | $4.28 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
