Front side panel for BMW 6 Series E24 628CSi

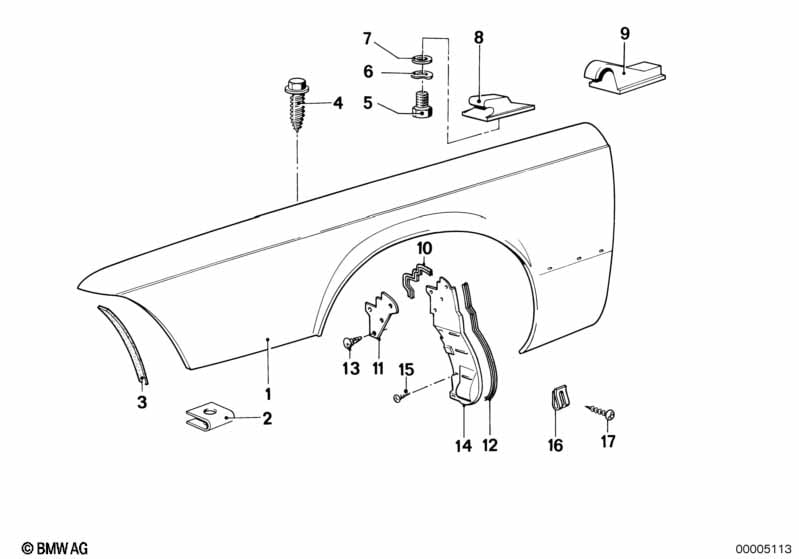

This Front side panel technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 628CSi. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side panel, front left | 1 | 05/1982 | 41351839205 | $565.28 | Shop at ECS Tuning | ||||
| 01 | Side panel, front right | 1 | 05/1982 | 41351839206 | $565.28 | Shop at ECS Tuning | ||||
| 01 | Side panel, front left | 1 | 05/1982 | 41351882589 | $912.74 | Shop at ECS Tuning | ||||
| 01 | Side panel, front right | 1 | 05/1982 | 41351882590 | $912.74 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO LATERAL TURN INDICATOR | ||||||||||
| 01 | Side panel, front left | 1 | 09/1983 | 41351920793 | $820.26 | Shop at ECS Tuning | ||||
| 01 | Side panel, front right | 1 | 09/1983 | 41351920794 | $912.74 | Shop at ECS Tuning | ||||
| 02 | Body nut | ST6,3-1-ZNS3 | 2 | 07129904231 | Shop at ECS Tuning | |||||
| 03 | Filling rubber | 5000MM | 1 | 41359058743 | $42.15 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex head screw | ST6,3X19-C-Z2 | X | 07119916967 | $0.29 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M8X16-10.9-PHR | 2 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 06 | Spring washer | B8 | 2 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 07 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 09 | Hood catch | 2 | 09/1982 | 41351861413 | $6.76 | ENDED | Shop at ECS Tuning | |||
| 10 | sealing | 1 | 51711926672 | $5.34 | ENDED | Shop at ECS Tuning | ||||
| 10 | sealing | 1 | 51711926672 | $5.34 | ENDED | Shop at ECS Tuning | ||||
| 11 | sealing | 2 | 51711926672 | $5.34 | ENDED | Shop at ECS Tuning | ||||
| 12 | Rubber seal | 2 | 51711917009 | $8.30 | Shop at ECS Tuning | |||||
| 13 | Clamp | 8 | 51221856946 | $0.44 | Shop at ECS Tuning | |||||
| 14 | Covering plate, front left | 1 | 51711839069 | $120.03 | ENDED | Shop at ECS Tuning | ||||
| 14 | Covering plate, front right | 1 | 51711839070 | $120.03 | ENDED | Shop at ECS Tuning | ||||
| 15 | Hex head screw | ST4,8X13-ZN3 | 8 | 07119904285 | $0.38 | Shop at ECS Tuning | ||||
| 16 | Body nut | ST4,8-13-ZNS3 | 4 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| 17 | Hex head screw | ST4,8X16-C-Z1 | 4 | 07119916945 | $0.18 | Shop at ECS Tuning | ||||
| 17 | Hex head screw | ST4,8X16-C-Z1 | 4 | 07119906265 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
