Front side panel for BMW 7 Series E23 735i (1982)

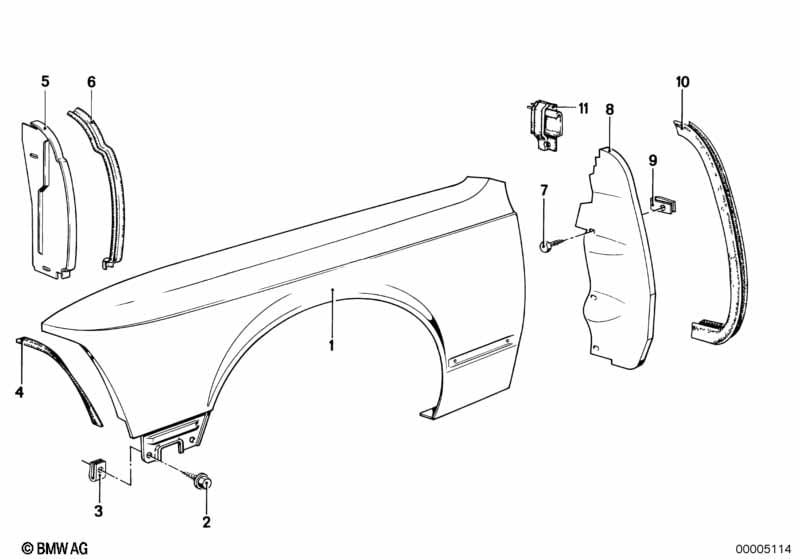

This Front side panel technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side panel, front left | 1 | 09/1982 | 41351852349 | $295.15 | ENDED | Shop at ECS Tuning | |||
| 01 | Side panel, front right | 1 | 09/1982 | 41351852350 | $295.15 | Shop at ECS Tuning | ||||
| 02 | Sheet metal screw | B6,5X16 | X | 12138530118 | $0.40 | ENDED | Shop at ECS Tuning | |||
| 03 | Body nut | B6,5 | X | 32412482060 | $0.20 | ENDED | Shop at ECS Tuning | |||
| 04 | Filling rubber | 5000MM | 1 | 41359058743 | $42.15 | ENDED | Shop at ECS Tuning | |||
| 05 | Cover, wheel housing, front left | 1 | 51711862021 | $10.98 | Shop at ECS Tuning | |||||
| 05 | Cover, wheel housing, front right | 1 | 51711862022 | $10.98 | Shop at ECS Tuning | |||||
| 06 | Rubber seal | 2 | 51711862049 | $2.96 | ENDED | Shop at ECS Tuning | ||||
| 07 | Hex head screw | ST4,8X16-ZNS3 | 8 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Cover, wheel housing, front left | 1 | 10/1979 | 51711871017 | $34.08 | ENDED | Shop at ECS Tuning | |||
| 08 | Cover, wheel housing, front right | 1 | 10/1979 | 51711871018 | $34.08 | Shop at ECS Tuning | ||||
| 09 | Body nut | ST 4,8-4-ZNS3 | 2 | 07129904224 | $0.11 | Shop at ECS Tuning | ||||
| 10 | sealing | 2 | 10/1979 | 51711872339 | $8.45 | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 11 | Flap left | 1 | 51711900285 | $5.69 | Shop at ECS Tuning | |||||
| 11 | Flap right | 1 | 51711900286 | $5.69 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
